Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-P1200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Operating Temperature: |
0℃~40℃ |
Storage Temperature: |
-10 ~ 70 °C |
Storage Humidity: |
5%~90% Non-condensing |
Dimension: |
145*70*43(mm) |
Operating Temperature: |
0℃~40℃ |
Storage Temperature: |
-10 ~ 70 °C |
Storage Humidity: |
5%~90% Non-condensing |
Dimension: |
145*70*43(mm) |

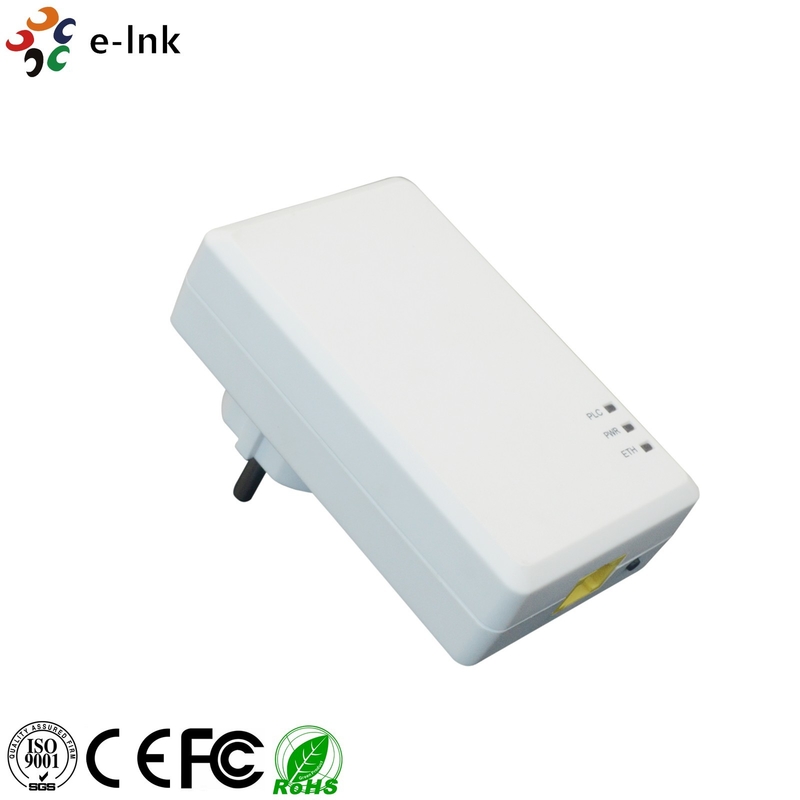

Mini 1200M Powerline Network Adapter Remote Management And Auto Upgrade
1200M HomePlug AV Powerline Adapter with PoE Injector
Advantages
| Interface | 1* 10/100/1000Mbps self-adaption RJ-45 port. |
| LED display lights |
Ethernet light (ETH) PLC communication status (ACT) Power light (PWR) |
| Ethernet |
IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support |
| Modulations | OFDM,FEC,Flexible frequency configuration |
| Data Rate | Up to 1.2Gbps |
| Management |
HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional) |
| Security | AES 128 bits encryption ensures total data security |
| Networking Protocols |
802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping |
| Power |
110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode) |
| Environment Connection |
Operating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing) |
| Certifications | FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard |
| Size | 145*70*43(mm) |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
The E-LINK LNK-P1200 which adopts HomePlug AV2 standard supplies the maximum transmission speed at 1200Mbps.You can erect the network through the existing power line of family, just plug it into the power socket wherever you can find, the strong anti-interference ability makes it avoid being interfered by the other electric devices, it also compatible with the IEEE1901 devices and the adoption of MIMO technology upgrades the power line communication speed and quality, it enhances the multimedia streaming quality through prioritizing flux, streaming HD video, high speed network linking, VOIP flux and upgraded QOS functions. The device takes 128-bit AES data encryption and key management technology to guarantee the safety of data transmission, the encryption procedure is simple, just through a button and no other settings . LNK-P1200 adopts TR-069 standard and can remotely
