Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-P200ST
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Operating Temperature: |
0℃-70℃ |
Storage Temperature: |
- 20 ℃ -- 70 ℃; |
Storage Humidity: |
5%~90% Non-condensing |
Dimension: |
145*70*42(mm) |
Operating Temperature: |
0℃-70℃ |
Storage Temperature: |
- 20 ℃ -- 70 ℃; |
Storage Humidity: |
5%~90% Non-condensing |
Dimension: |
145*70*42(mm) |

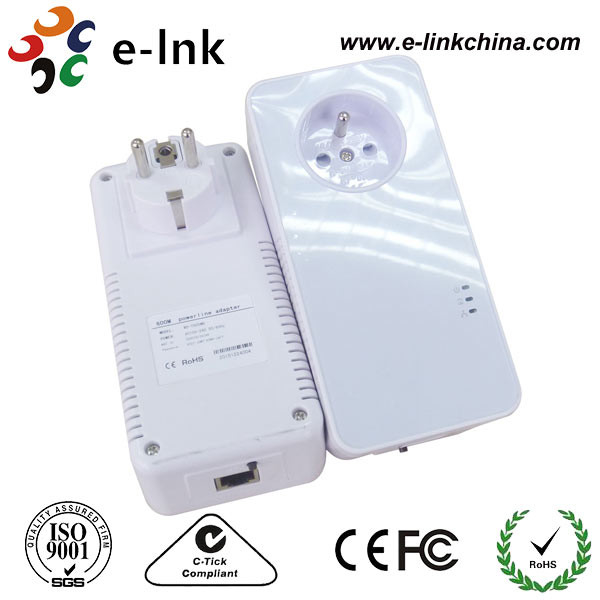

AC100V AC220V E link PoE Injector Adapter Powerline Ethernet Adapters
E-link Powerline Ethernet Adapters
Advantages
· Physical transmission rate at 200M can meet many demands of business.
· Take AC100V~220V power wire as transmission media, transmit the signals through null line, power line and ground wire, no wiring.
· Not need to set, plug and play.
· Maximum transmission distance at 400m.
· Support IGMP.
· Meet the demands of HomePlugAV2,IEEE1901.
· Compatible with HomePlug1.0.
· Low-power design
· Adopt 128-bit AES encryption technology, guarantee the transmission safety.
· Pass through FCC CE RoHS.
· Strong compatibility, can be used matching with LNK-P600ST Add external power supply jack can both get more users and terminate the interference of harmonic wave made by electric equipments.
· Support TR-069.
· Transmit signals stably and not be interfered by high power electric devices.
Technical Indexes
|
Specification |
|
|
Interface |
1*LAN 10/100/1000M RJ45 |
|
LED display light |
Power (on/off), Power (stand-by) |
|
Transmission band |
2-68MHZ |
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 1901 |
|
Protocols |
CSMA/CA (Powerline) |
|
Security |
128 Bit AES |
|
Transmission speeds |
Powerline 200/500/600 (mbps) |
|
Range (in m) |
Powerline: 400 |
|
Modulation |
OFDM |
|
Effective transmission rate |
TCP 300Mbps |
|
O/S |
Windows 7 (32 Bit), Windows 7 (64 Bit) |
|
Quantity of a group(Max) |
15 pieces |
|
Modulation • Carrier |
Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK • Powerline 2880 |
|
Working voltage |
AC 100v-240v 60/50Hz |
|
Filter characteristics |
-22 db to -45 db |
|
Socket • Connector • Countries |
Type F (CEE 7/4) • F (CEE 7/4) • (DE, NL, ES, PT, AT, SE, FI, NO, GR, HU) CHINA UK USA |
|
Operating environment |
Working temperature:0℃-70℃ |
|
Storage temperature:-20℃-70℃ |
|
|
Working humidity:10%-85% no condense |
|
|
Storage humidity:5%-90% no condense |
|
|
Size |
145*70*42(mm) |
|
Weight |
0.4kg |
|
Certification |
FCC CE ROHS |
Overview
LNK-P600ST 600Mbps Pass through Powerline Network Adapter Give your home the fastest home network. Experience entertainment at the highest level, thanks to a high transfer rate at speeds up to 200 Mbps. Connecting your devices together is as easy as child’s play: the integrated Gigabit LAN connection offers a direct connection for a network-compatible device. Your home network from the power outlet. Unpack. Plug it in. Get started! The easy way to connect using your home’s power lines. Turn any power outlet you want into an Internet access point.
High-performing 200 Mbps for lightning-fast data transmission.
Even higher performance and longer range with the latest technology.
The optimal Internet connection for computers, televisions and game consoles. No signal loss - stable and continuous.
Installation as easy as child’s play. Just unpack it, plug it in and get started.
With the Gigabit LAN connection, you can connect an Internet-compatible device (e.g. game console, television or media receiver) to the Internet at any time via network cable.
With the integrated electrical socket, no power outlet in your room goes to waste.
Automatic encryption! Active protection against unauthorised access.
Minimal energy consumption with the innovative PowerSave technology from E-link : continuous, intelligent and fully automatic.
Includes E-link Cockpit software for home network configuration on a computer (Windows, Mac OSX, Linux).
3-year manufacturer’s warranty.
