Dante 2Ch Analog Output Dongle Converter

Name: Dante 2Ch Analog Output Dongle Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-DAN-D4
Price: 103.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DAN-D4

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $98-108

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,L/C,Paypal,Alibaba

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	-5 To +55℃	Maintaining Temperature:	-25~70ºC
Power Consumption:	2.6W(Max)	Net Weight:	145g
Dimensions (WxDxH)::	114x 30 X 28 Mm	Cable Length:	30cm
USB-C Port:	1 X USB-C Port, Compatible With USB 2.0 Devices.	Power:	802.3af PoE

Operating Temperature::	-5 To +55℃
Maintaining Temperature:	-25~70ºC
Power Consumption:	2.6W(Max)
Net Weight:	145g
Dimensions (WxDxH)::	114x 30 X 28 Mm
Cable Length:	30cm
USB-C Port:	1 X USB-C Port, Compatible With USB 2.0 Devices.
Power:	802.3af PoE

Description

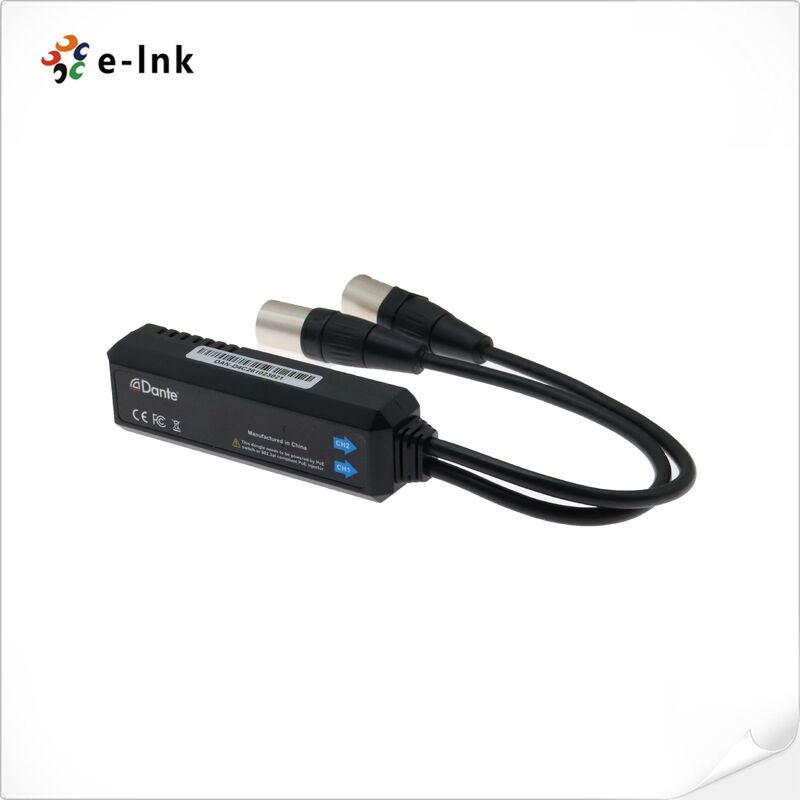

Dante 2Ch Analog Output Dongle Converter

Dante 2Ch Analog Output Dongle Converter Advantage

► Plug and play.

► 24-bit audio support

► 0x2 Audio Channels

► Support power via PoE Injector (IEEE802.3af)

Dante 2Ch Analog Output Dongle Converter Overview

The LNK-DAN-D4 2Ch Analog Output Dongle Converter can connect Dante network and supports Analog 0X2 channels audio, allowing analog amplifier to your Dante audio network.

Dante 2Ch Analog Output Dongle Converter Technical Indexes

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
XLR Port	2 x XLR port, connect output device
Audio
Max signal level	+18 dBu
Output Gain	-6 dBu
Frequency Response	20Hz to 20kHz(-/+0.5dB)
Impedance	150 Ohm balanced, 75 Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% @+4dBu
Dante
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	24
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Type	Analog 0X2
General
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Power	802.3af PoE
Power Consumption	2.6W(Max)
Dimension (WHD)	114 x 30 x 28 mm
Cable length	30cm
Net Weight	145g
