Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-HD-FE HDMI
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Standards: |
HDMI V1.3 |
Dimension (L×W×H): |
TX & RX: 154x99.5x27mm |
Net Weight: |
Transmitter:410g, Receiver:410g, |
Operating Temperature: |
-5°C To 35°C(23°F To 95°F) |
Standards: |
HDMI V1.3 |
Dimension (L×W×H): |
TX & RX: 154x99.5x27mm |
Net Weight: |
Transmitter:410g, Receiver:410g, |
Operating Temperature: |
-5°C To 35°C(23°F To 95°F) |
HDMI V1.3 10 100M Ethernet Over Fiber Extender 1 Ch HDMI Video
1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender
HDMI Fiber Extender Advantages
► Automatically adapt range of input signal sampling frequency (32～100KHz)
► Provides high-resolution image quality.
► Optical fiber use rules out any RF interference.
► Built in IR remote control.
Specifications
| Operating Temperature | -5°C to 35°C(23°F to 95°F) |
| Storage Temperature | -10°C to 70°C(14°F to 158°F) |
| Operating Humidity | 10 to 90%RH (No Condensation) |
| Storage Humidity | 5 to 90%RH (No Condensation) |
| Fiber Module | 1310nm Single Mode Transmitter & Receiver |
| Fiber Connector | SC Duplex Connector |
| Transmission Distance | 1080P 36bit @60Hz 20Km(Maximum) |
| Power consumption | TX:8watts; RX:8watts((Maximum) |
| IR wavelength &frequency | Wavelength:940nm,frequency 38kHz |
| Dimension (L×W×H) | TX & RX: 154x99.5x27mm |
| Net Weight | Transmitter:410g, Receiver:410g, |
| LED Indicators | Power, Link/Act and Speed |
Overview

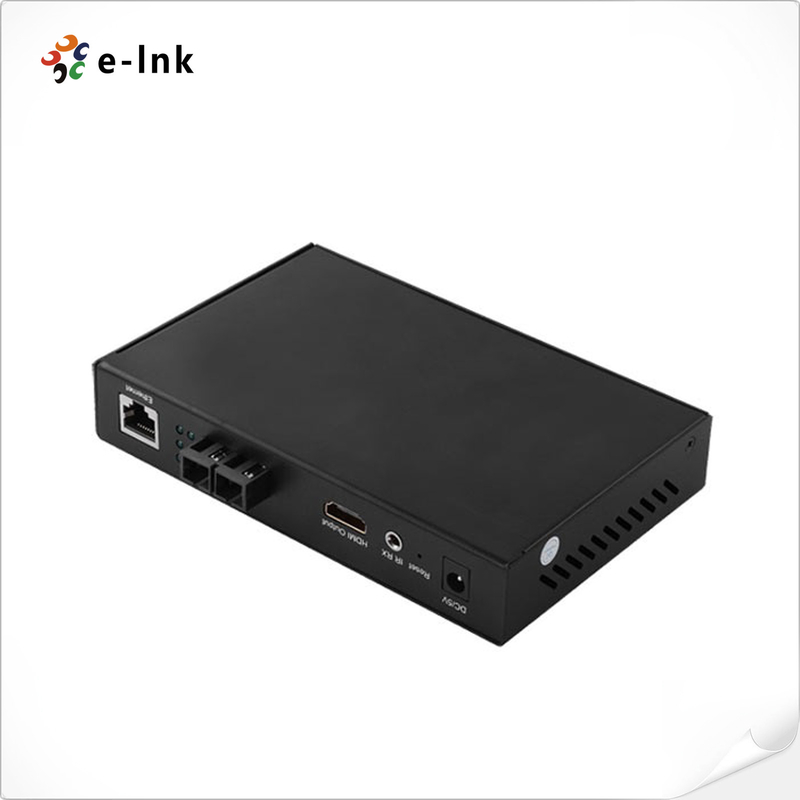

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extends 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.
