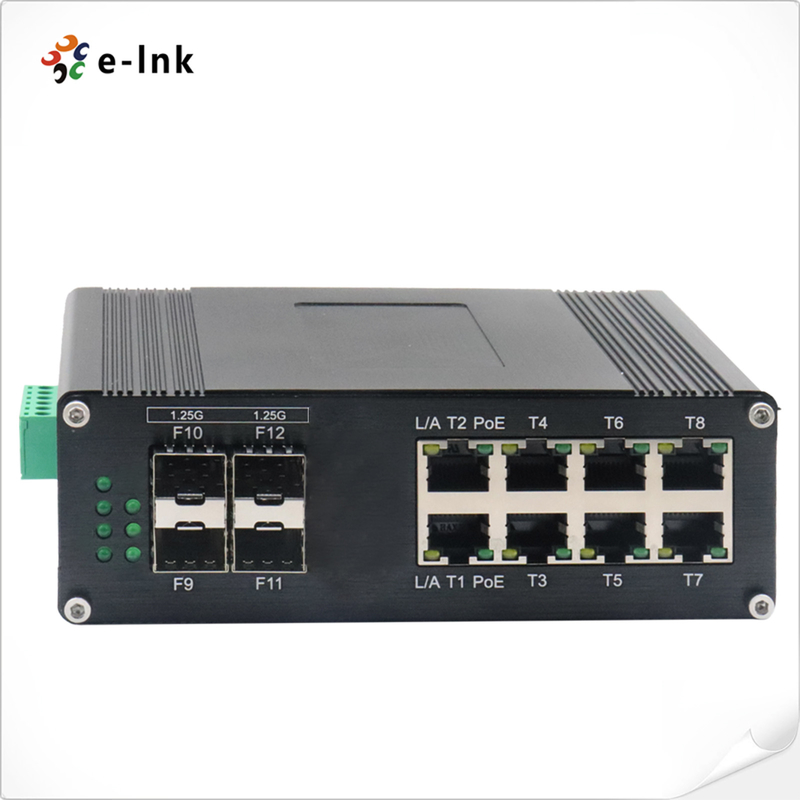

Hardened 8 Port POE Managed Network Switch With IP40 Aluminum Case

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: ETH-IMC408MP

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Managed Network Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

POE Managed Network Switch

,

IP40 Managed Network Switch

,

hardened 8 Port POE Switch

Keywords:
8 Port Managed PoE Switch
PoE Budget:
Up To 240-watt
RJ45 Port:
8 Port 10/100/1000T 802.3at
Fiber Port:
4 Port 1000X SFP
RS-485 Signals:
Data +, Data-, GND
DIP Switch:
4-digit DIP Switch Function
Keywords:
8 Port Managed PoE Switch
PoE Budget:
Up To 240-watt
RJ45 Port:
8 Port 10/100/1000T 802.3at
Fiber Port:
4 Port 1000X SFP
RS-485 Signals:
Data +, Data-, GND
DIP Switch:
4-digit DIP Switch Function
Description
Hardened 8 Port POE Managed Network Switch With IP40 Aluminum Case

Hardened 8 Port POE Managed Network Switch With IP40 Aluminum Case



Managed Network Switch Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP


Managed PoE Switch Advantages

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature



8 port 10/100/1000M PoE Switch Overview

ETH-IMC408MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 Gigabit Ethernet ports and 4 SFP fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber.



Din Rail Managed Network Switch Technical Indexes

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

USB-C:

1 x USB-C (for Management)

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data +, Data-, GND

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

8 x RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 240-watt PoE budget

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max. (PoE in Use<240W)

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

Hardened 8 Port POE Managed Network Switch With IP40 Aluminum Case 0

Hardened 8 Port POE Managed Network Switch With IP40 Aluminum Case 1



Industrial 8 Port Network Switch Ordering Information

Model

Description

ETH-IMC408MP

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

SFP option. Please select your SFP on our SFP Options Page

SFP module is to be purchased separately.

Mounting Options

Default DIN-Rail Bracket installed

Power Options

DIN-Rail Power Supply. Open Wire for Terminal Block.

Power Supply is to be purchased separately.
