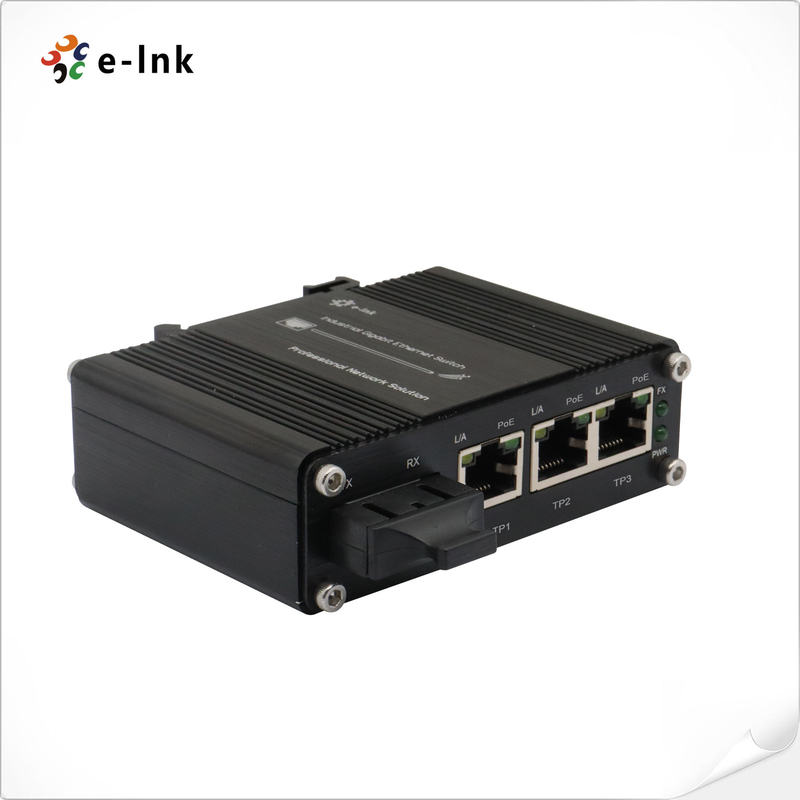

DIN Rail Wall mount Industrial PoE Switch 3 Port 30W power booster

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC103GP

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: PoE Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Wall Mount Industrial PoE Switch

,

DIN Rail PoE Switch 3 Port

,

Power Booster Din Rail PoE Switch

Keywords:
Industrial 3-port PoE Switch
RJ45 Port:
3 Port 10/100/1000BASE-X 802.3at
Fiber Port:
1 Port 1000BASE-X SC
Input Power:
12~48VDC, 4-pin Terminal Block
Mounting Options:
DIN-Rail / Wall-mount
Weight:
0.3Kg
Keywords:
Industrial 3-port PoE Switch
RJ45 Port:
3 Port 10/100/1000BASE-X 802.3at
Fiber Port:
1 Port 1000BASE-X SC
Input Power:
12~48VDC, 4-pin Terminal Block
Mounting Options:
DIN-Rail / Wall-mount
Weight:
0.3Kg
Description
DIN Rail Wall mount Industrial PoE Switch 3 Port 30W power booster

DIN Rail Wall Mount Industrial PoE Switch 3 Port 30W Power Booster



PoE Switch Mini Industrial 3 Port PoE
3-Port 10/100/1000T 802.3at + 1-Port 1000X SC with 12~48VDC Input and Voltage Booster


PoE Switch 30W Advantages
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)
► 1 1000Base-X SC Port
► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

Fiber Ethernet Switch 3-port PoE Overview
LNK-IMC103GP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

3 Port PoE Switch Technical Indexes

Connector:

3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)

Optical Port:

1 x SC 1000Base-X

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

<95W (Non-PoE<6W)

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.3Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

DIN Rail Wall mount Industrial PoE Switch 3 Port 30W power booster 0
DIN Rail Wall mount Industrial PoE Switch 3 Port 30W power booster 1
3 Port Gigabit PoE Switch 802.3at Ordering Information

Model

Description

LNK-IMC103GP

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m

LNK-IMC103GP-20

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km

LNK-IMC103GPS-20A

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km

LNK-IMC103GPS-20B

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 12~48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
