Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-1020
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Micro Mini SFP Media Converter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Parameter: |
Specifications |
Access Mode: |
100 Mbps |
Standard: |
Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet |
Wavelength: |
850nm/1310nm/1550nm |
Parameter: |
Specifications |
Access Mode: |
100 Mbps |
Standard: |
Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet |
Wavelength: |
850nm/1310nm/1550nm |

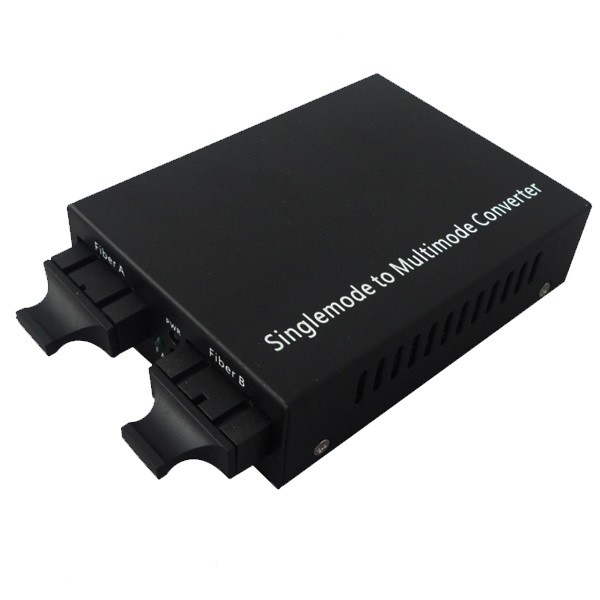

100M Multi Single Mode Fiber Media Converter Fast Ethernet
100M Multi/Single Mode Converter
Advantages:
l Supporting IEEE802.3u 100Base-FX standards
l Supporting conversion between 850nm/1310nm multi-mode fibers and 1310nm/1550nm single mode fibers
l Supporting direct and transparent transmission of packets at different lengths
l Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
l Low power consumption, low heat, reliable and stable performance, and long lifetime;
l Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
Technical Indexes
Parameter |
Specifications |
Access mode |
100 Mbps |
Standard |
Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
Multi-mode Dual-fiber: 2 km; Single mode dual-fiber: 20/40/60/80/100/120 km; Single mode single fiber: 20/40/60/80/100 km |
Port |
One multi-mode optical port: Multi-mode: SC/ST (50, 62.5/125μm) One single mode optical port: single mode: SC/FC (9/125μm) Single mode Single fiber: SC/FC(9/125μm) |
Conversion means |
Media conversion |
Delay |
< 0.9us |
BER |
<10-9 |
MTBF |
100,000 hours |
LED indicator |
PWR (power supply) SM LINK (single mode optical link) SM ACT (single mode optical link action) MM LINK (multi-mode optical link) MM ACT (multi-mode optical link action) |
Power supply |
DC5V 1A |
Power consumption |
3.5W |
Operating temperature |
-10~55ºC |
Operating humidity |
5%~90% |
Maintaining temperature |
-40~70ºC |
Maintaining humidity |
5% ~ 90% non-condensing |
Overview
LNK-1020 series single-/multi-mode converters are applied in 100Mbps fast Ethernet Network which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Ordering Information
Model |
Description |
LNK-1020-25 |
100M, Single mode-Dual Fiber-25km-1310nm to Multi mode-Dual Fiber-2km-1310nm, SC, standalone, external power adaptor |
LNK-S1020-25 |
100M, Single mode-Single Fiber-25km-1310nm to Multi mode-Single Fiber-2km-1310nm, SC, standalone, external power adaptor |
