4K@60HZ HDMI Dual Band IR Extender 60M Video Max Data Rate 18Gbps

Product Details

Place of Origin: china

Brand Name: E-link

Certification: CE,FCC,Rohs

Model Number: LNK-H4KE-60

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-8work

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000pair/month

Get Best Price
Contact Now
Specifications
Highlight:

HDMI Dual Band IR Extender

,

18Gbps Dual Band IR Extender

,

FCC Dual Band IR Repeater

Video Standards:
HDMI2.0; HDCP 2.2
Video Maximum Pixel Clock:
340MHz
Video Max Data Rate:
18Gbps
Video Connector:
HDMI-A
Power Supply:
DC 5V/1A
Power Dissipation:
MAX 3W
Video Standards:
HDMI2.0; HDCP 2.2
Video Maximum Pixel Clock:
340MHz
Video Max Data Rate:
18Gbps
Video Connector:
HDMI-A
Power Supply:
DC 5V/1A
Power Dissipation:
MAX 3W
Description
4K@60HZ HDMI Dual Band IR Extender 60M Video Max Data Rate 18Gbps

4K@60HZ HDMI Dual Band IR Extender 60M Video Max Data Rate 18Gbps



4K@60HZ HDMI Extender 60M with Loopout & Dual IR



HDMI Extender Advantages

  • Aluminum alloy housing design, stable and durable ;compact size and Slim ,stronganti-interference, Wall-mounted type is more convenient;
  • Uncompressed transmits HDMl video and audio signals up to 60M over a single CAT6a/7 cable
  • Support video resolution up to 3840*2160@60Hz, 3D signal;
  • Support bi-direction wide band infrared signal transmission:
  • Support local loopout in senderYUV4:4:4,HDMI 2.0 and HDCP 2.2 standard;
  • Build-in EDID function, can match many kind display device;
  • Ethernet cables with a standard IEEE - 568b connection, convenient installation:
  • Built-in ESD protectionHigh compatibility, can auto-match source and display device:
  • Built-in automatic adjustment system, make the image smooth, clear and stable:

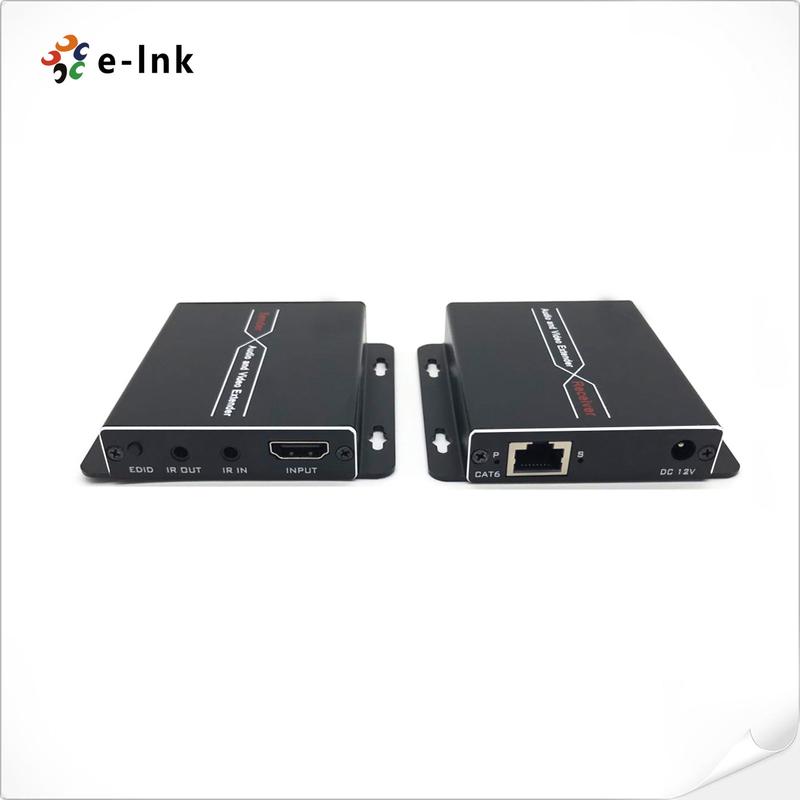

HDMI Extender Picture



4K@60HZ HDMI Dual Band IR Extender 60M Video Max Data Rate 18Gbps 0



HDMI Extender Application

4K@60HZ HDMI Dual Band IR Extender 60M Video Max Data Rate 18Gbps 1


HDMI Extender Technical Indexes

Parameter Description
Video Standards HDMI2.0; HDCP 2.2
Maximum pixel clock 340MHz
Maximum data rate 18Gbps
Maximum resolution 3840*2160@60Hz (backward-compatible)
Connector HDMI-A
Impedance 100Ω
IR Interface 3.5mm earphone seat
Signal direction Bi-directional
Signal type Digital
IR frequency 20-60kHz
UTP Interface RJ45 (IEEE - 568b connection)
Transmission distance CAT6-60M
Other Power supply The power adapter: DC 5V/1A
Power dissipation MAX 3W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 82*65*17mm
The warranty 1 year free warranty



HDMI Extender Ordering Information

Part No Description of product
LNK-H4KE-60 4K@60HZ HDMI Extender 60M With Loopout & Dual IR - 197 ft (60m
