Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC10G-SFP+
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial 10G Media Converter |
Input Power: |
12~48VDC Redundant Power |
Connector: |
1-Port 10G/5G/2.5G/1G/100M RJ45 |
Optical Port: |
1-Port 10GBASE-X SFP |
DIP Switch: |
4-digit DIP Switch Function |
Mounting Options: |
DIN-Rail/Wall-mount |
Keywords: |
Industrial 10G Media Converter |
Input Power: |
12~48VDC Redundant Power |
Connector: |
1-Port 10G/5G/2.5G/1G/100M RJ45 |
Optical Port: |
1-Port 10GBASE-X SFP |
DIP Switch: |
4-digit DIP Switch Function |
Mounting Options: |
DIN-Rail/Wall-mount |

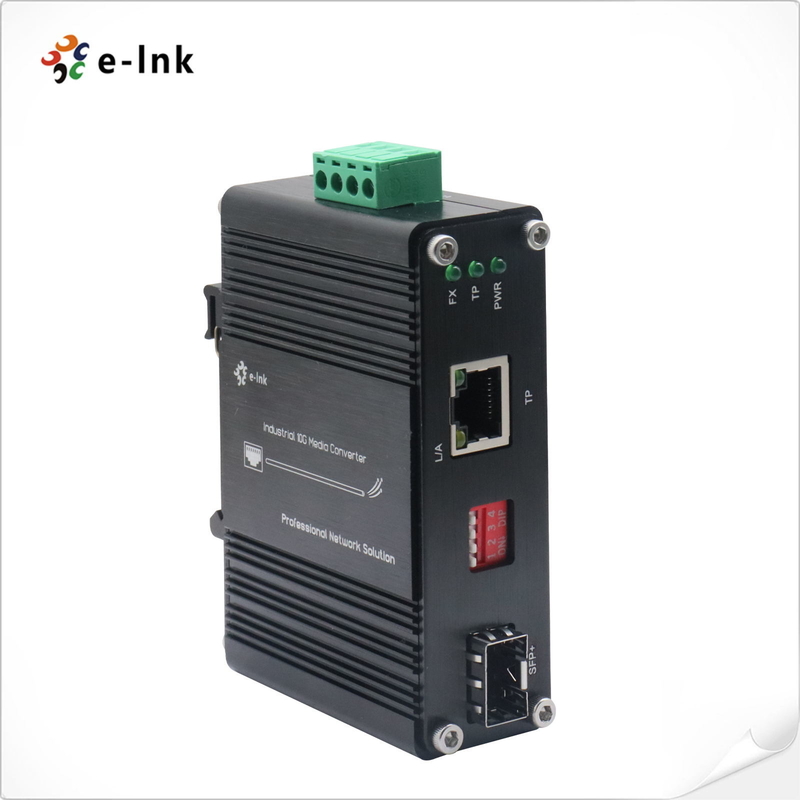

Din Rail Mini Industrial Media Converter 10G Copper To 10GBASE-X SFP+
Mini Industrial Din Rail Mounting Fiber Media Converter 10G Copper to 10GBASE-X SFP+
10G Fiber Optical Media Switch Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
10G Media Converter Copper To SFP+ Overview
LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system.
Industrial Fiber Media Converter 10G Technical Indexes
|
Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC, Redundant Power (4-pin Terminal Block) |
|||
|
Power Consumption: |
5W Max |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
||||
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|||
|
Weight: |
0.25Kg |
|||
|
Casing: |
Aluminum Case |
|||
10G Copper to Fiber Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC10G-SFP+ |
Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|
► Power Supply is to be purchased separately. |
