MAX 4W 4K@30HZ Dual Band IR HDMI Extender With Loop Out

Product Details

Place of Origin: china

Brand Name: E-link

Certification: CE,FCC,Rohs

Model Number: LNK-4KE-120

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-8work

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000pair/month

Get Best Price
Contact Now
Specifications
Highlight:

Dual Band IR HDMI Extender

,

4K@30HZ HDMI Extender With Loop Out

,

4K@30HZ Dual Band IR Extender

Video Standards:
HDMI1.4; HDCP 1.4
Video Maximum Pixel Clock:
225MHz
Video Max Data Rate:
10.2Gbps
Video Connector:
HDMI-A
Power Supply:
DC 5V
Power Dissipation:
MAX 4W
Video Standards:
HDMI1.4; HDCP 1.4
Video Maximum Pixel Clock:
225MHz
Video Max Data Rate:
10.2Gbps
Video Connector:
HDMI-A
Power Supply:
DC 5V
Power Dissipation:
MAX 4W
Description
MAX 4W 4K@30HZ Dual Band IR HDMI Extender With Loop Out

MAX 4W 4K@30HZ Dual Band IR HDMI Extender With Loop Out



4K@30HZ HDMI Extender 120M With Loopout & Dual IR



HDMI Extender Advantages



Aluminum alloy housing design, stable and durable ;

compact size and Slim ,stronganti-interference, Wall-mounted type is more convenient;

Uncompressed transmits HDMl video and audio signals up to 120M over a single CAT6a/7cable;

Support video resolution up to 3840*2160@30Hz, 3D signal;

Support Keyboard and mouse control;

Support local loopout in senderHDMI 1.4 and HDCP 1.4 standard;

Build-in EDlD function, can match many kind display device;

Ethernet cables with a standard IEEE - 568b connection, convenient installation;

Built-in ESD protection
High compatibility, can auto-match source and display device;

Built-in automatic adjustment system, make the image smooth, clear and stable;

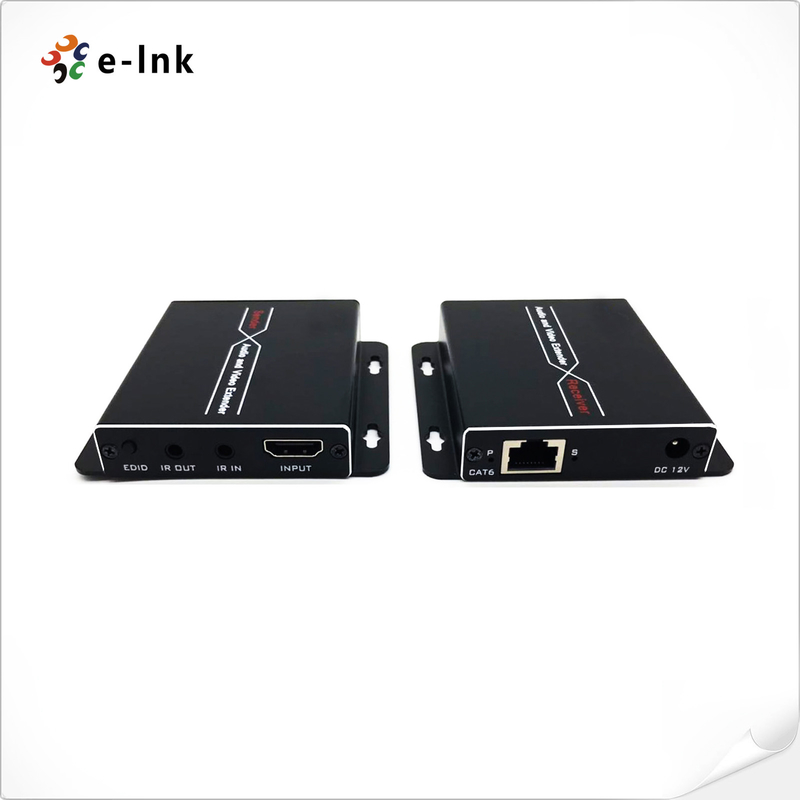

HDMI Extender Picture



MAX 4W 4K@30HZ Dual Band IR HDMI Extender With Loop Out 0



HDMI Extender Application

MAX 4W 4K@30HZ Dual Band IR HDMI Extender With Loop Out 1


HDMI Extender Technical Indexes



Parameter Description
Video Standards HDMI1.4; HDCP 1.4
Maximum pixel clock 225MHz
Maximum data rate 10.2Gbps
Maximum resolution 3840*2160@30Hz (backward-compatible)
Connector HDMI-A
Impedance 100Ω
USB Interface

PC: Standard USB-A

K/M: Standard USB-A

USB Signal HID Signal
UTP Interface RJ45 (IEEE - 568b connection)
Transmission distance CAT6-120M
Other Power supply The power adapter: DC 5V
Power dissipation MAX 4W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 82*85*17mm
The warranty 1 year free warranty

HDMI Extender Ordering Information

Part No Description of product
LNK-4KE-120 4K@30HZ HDMI Extender 120M With Loopout & Dual IR
