Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-HDE-120KVM
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiated
Packaging Details: standard export package
Delivery Time: 3-6working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000pair/month
Video Standards: |
HDMI 1.3; HDCP 1.2 |
Video Maximum Pixel Clock: |
165MHz |
Video Max Data Rate: |
6.75Gbps |
Video Connector: |
HDMI-A |
Power Supply: |
DC 5V |
Power Dissipation: |
MAX 4W |
Video Standards: |
HDMI 1.3; HDCP 1.2 |
Video Maximum Pixel Clock: |
165MHz |
Video Max Data Rate: |
6.75Gbps |
Video Connector: |
HDMI-A |
Power Supply: |
DC 5V |
Power Dissipation: |
MAX 4W |
6.75Gbps 120M Fiber Optic Accessories 1080P@60Hz HDMI Over TCP IP
120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
HDMI Extender Advantages
► Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference
►Distance up to 120m over UTP CAT5E/6 cable.
►Video resolution max up to 1920*1080@60Hz.
►Support keyboard and mouse control .
►Have a local HDMI loop-out ;
►Support IR(38khz) signal pass back transmission .
►HDMI 1.3 and HDCP 1.2 standard.
►High compatibility, can auto-match source and display device.
►Built-in automatic adjustment system, make the image smooth, clear and stable.
►Built-in ESD protection system; Simple to install, plug and play.
►TCP/IP Ethernet communication.
►Real-Time Video/Audio Transmission over IP.
►Pure Ethernet , Simple Cabling .
►Ordinary 100M or 1000M Ethernet switch.
Overview
This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair.
It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network
cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch
over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal
is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect
for AV transmission in applications of HD conference system, HD video shooting, HD multimedia
education system, HD digital advertising and signage etc.

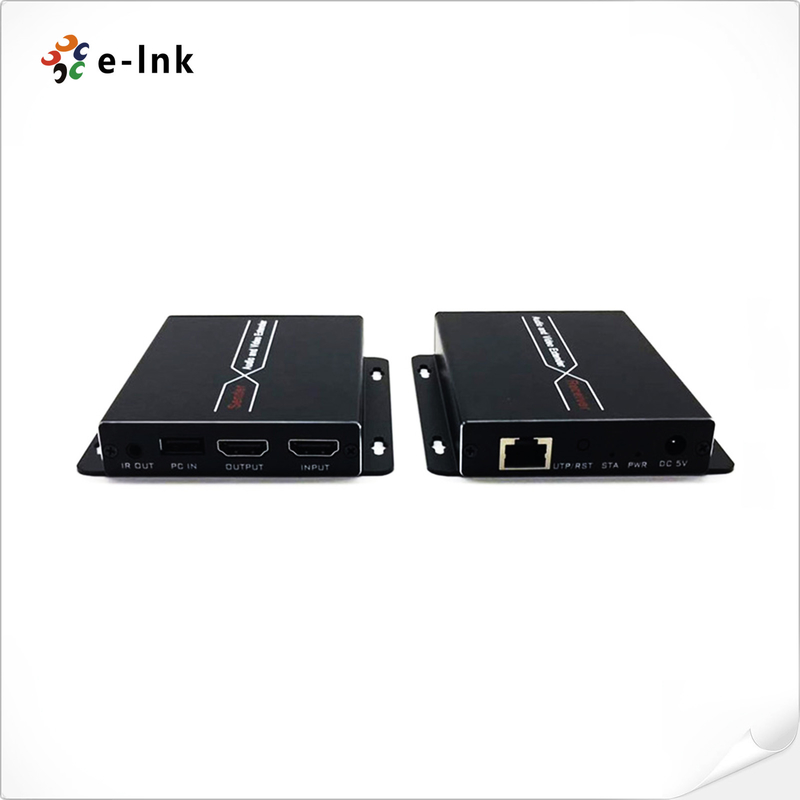

HDMI Extender Picture
Application
HDMI Extender Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | Max: 1920X1080@60Hz(backward-compatible) | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 38kHz | |
| USB | Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
| USB Signal | HID Signal | |
| Ethernet | Interface | RJ45(568B) |
| Transmission distance | UTP CAT5e/---120m | |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 100*97.5*17mm | |
| The warranty | 1 year free warranty | |
Ordering Information
| Part No | Description of product |
| LNK-HDE-120KVM | 120M 1080P@60Hz HDMI KVM Extender Over TCP/IP |
