BIDI 3G-SDI Fiber Extender With 2Ch Audio & BIDI RS485 & Tally and Microphone

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-3G-1BV1T2BD2A1M

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: Negotiation

Packaging Details: 3G/HD/SD SDI Fiber Transmitter Receiver Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000pairs/month

Get Best Price
Contact Now
Specifications
Highlight:
Product Name:
Bidirectional 3G-SDI Over Fiber Converter
Data Type:
RS485 (Default) Or RS422 (Optional), Tally Signal
Signal Standard:
BIDI 3G-SDI
Video Resolution:
HDTV 720P, 1080I, 1080P, 1920x1080P 60Hz
Fiber Interface:
Simplex LC
Transmission Distance:
20KM
Audio Format:
48KHz
Working Temperature:
-20℃~+70℃
Weight:
1.5KG/pair
Warranty:
3 Years
Product Name:
Bidirectional 3G-SDI Over Fiber Converter
Data Type:
RS485 (Default) Or RS422 (Optional), Tally Signal
Signal Standard:
BIDI 3G-SDI
Video Resolution:
HDTV 720P, 1080I, 1080P, 1920x1080P 60Hz
Fiber Interface:
Simplex LC
Transmission Distance:
20KM
Audio Format:
48KHz
Working Temperature:
-20℃~+70℃
Weight:
1.5KG/pair
Warranty:
3 Years
Description
BIDI 3G-SDI Fiber Extender With 2Ch Audio & BIDI RS485 & Tally and Microphone

BIDI 3G-SDI Fiber Extender With 2Ch Audio & BIDI RS485 & Tally and Microphone

1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter



BIDI 3G-SDI Fiber Extender With 2Ch Stereo Audio Advantage

1Ch bidirectional 3G-SDI video with loop output
1Ch tally signal
2Ch bidirectional RS485 or RS422 data
2-channel stereo audio
1Ch microphone
Long transmission capacity up to 20km (SMF)
Full digital uncompressed broadcast level transmission
Industrial grade ultra wide temperature range (-20 ℃~+70 ℃)



Bidirectional 3G SDI Video Fiber Converter Overview

The LNK-3G-1BV1T2BD2A1M series 3G/HD-SDI fiber optic converter supports 1-channel bidirectional 3G/HD-DI video (embedded audio) with loop output, 1-channel Tally, 2-channel bidirectional RS485 or RS422 data, 2-channel external stereo audio, and 1-channel microphone signal transmitted through fiber optic cable. E-link 3G/HD-SDI optical fiber video converter includes a transmitter and a receiver for 1080P 3G/HD-DI signals. This series of video to fiber converters has stable performance, clear image quality, and high stability, with LED status indicators on the device body.



3G-SDI Fiber Transmitter Receiver Technical Indexes

Fiber interface

Simplex LC

Transmission distance

0-20Km

Wavelength

1310nm/1550nm

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%~90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

1080P 23.98/24/30/50/60

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Data or Tally

Physical interface

Industrial standard screw terminal

Data type

RS485 (Default) or RS422 (Optional), Tally signal

Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER

<10ˉ9

Audio input and output

3.5MM Audio

Audio format

@48KHz

Power adaptor

DC 5~25V

Power consumption

<5W

Dimensions (LxWxH)

120 x 105 x 28 mm

Weight

1.5KG/pair

Casing

Aluminum Case

Mounting Options

Wall-mount

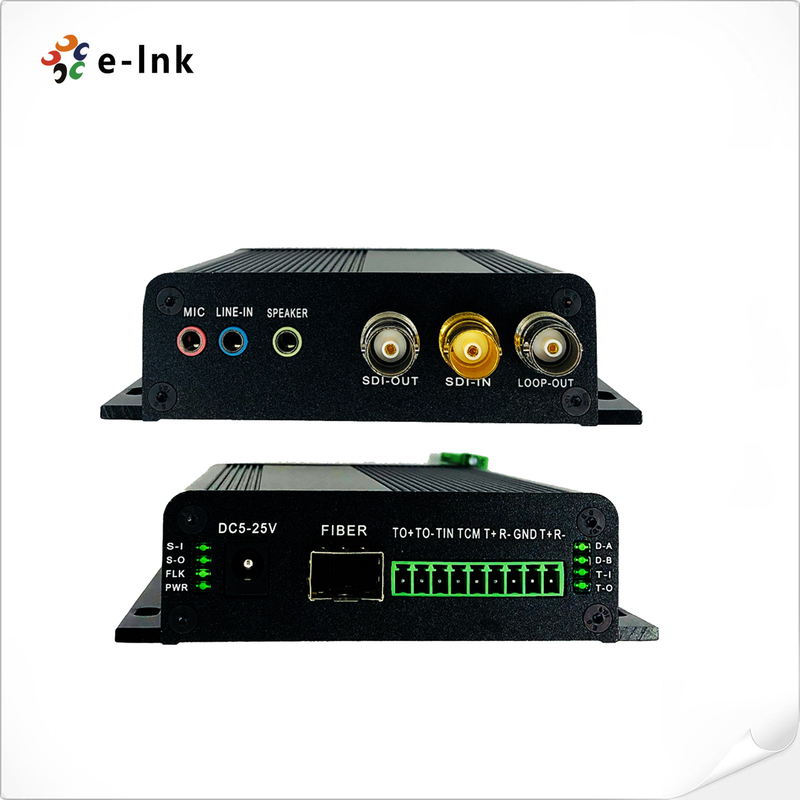

BIDI 3G-SDI Fiber Extender With 2Ch Audio & BIDI RS485 & Tally and Microphone 0

BIDI 3G-SDI Fiber Extender With 2Ch Audio & BIDI RS485 & Tally and Microphone 1

3G/HD/SD-SDI Over Fiber Converter With Audio Ordering Information

Model

Description

LNK-3G-1BV1T2BD2A1M

1Ch Bidirectional 3G-SDI with Loop + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs
