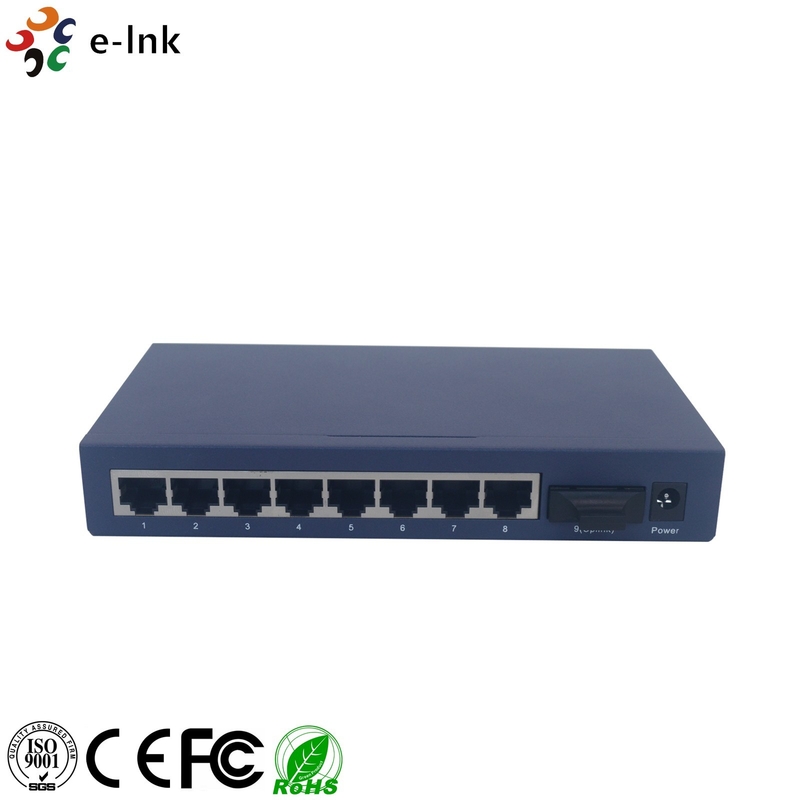

8 Ports PoE(250M) Fast Ethernet Switch

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-PS108

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: PoE Ethernet Fiber Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:
Power Supply:
Power Adaptor
Input Power:
DC48V~54V
Speed:
1~8 Port:Default:10/100Mbps; CCTV:10Mbps;
Ethenet Standard:
IEEE 802.3/802.3u/802.3af/at
Power Consumption::
<5W (Non-PoE)
Dimensions (WxDxH)::
200mm×101.8mm×27mm
Power Supply:
Power Adaptor
Input Power:
DC48V~54V
Speed:
1~8 Port:Default:10/100Mbps; CCTV:10Mbps;
Ethenet Standard:
IEEE 802.3/802.3u/802.3af/at
Power Consumption::
<5W (Non-PoE)
Dimensions (WxDxH)::
200mm×101.8mm×27mm
Description
8 Ports PoE(250M) Fast Ethernet Switch



8 Ports PoE(250M) Fast Ethernet Switch


  Features


  ► Major ports: 1 pc 100Mbps uplink fiber port, 8 pcs

      100Mbps down link Ethernet port, every port supports

       MDI/MDIX;

  ► Special function: One key CCTV model; 1~ 8 downlink

       ports can only communicate with uplink ports;

  ► Power input: DC48V~57V;

  ► Transmission Distance: 0~100m; fiber port 20km;

  ► Standard: Meet IEEE802.3, IEEE802.3u,

       IEEE802.3 af/at standards, PoE use

       End-Span, the spare cable can be of

       other use;

 ► Appearance: Delicate design and easy

     installation, configure the anti-theft lock

     hole guard against theft;




 Overview

LNK-PS108 Series PoE Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition
surveillance and Ethernet project security system. The product fully combines the characteristics of security
surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear
image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product
supports one key CCTV mode, can achieve VLAN after configuration, control the Net storm, protect the
information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security
surveillance system and Ethernet project needs.


 Technical Indexes



Item Description



Power

Power Supply Power Adaptor
Voltage Range DC48V~54V
Consumption <5W



Ethernet



Speed

1~8 port:Default:10/100Mbps; CCTV:10Mbps; UPLINK:100Mbps
Transmission Distance 1-8 port:Default:0~100m;CCTV:0~250m; UPLINK:20km



Network Switch

Ethenet Standard IEEE 802.3/802.3u/802.3af/at
Backplane Bandwidth 1.8G
Packet Forwarding Rate 1.34Mbps
Packet Buffer 768K
MAC 2K



Status Indicator

Power Light 1pcs(Red)



Ethernet Port Light

2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act
Fiber Light 1pcs(Green), green indicates Link/Act
Surveillance Module Light 1pcs(Green), green indicates CCTV



Protection Level

Pluse Group Level 2 Standard: IEC61000-4-4



ESD

1a Contact Discharge Level 3

1b Air Discharge Level 3 Standard: IEC61000-4-2

Anti-thunder Level Level 3 Standard: IEC61000-4-5
Working Environment Working Temperature 0℃~55℃
Storage Temperature -40℃~85℃
Humidity(Non- condesing) 0~95%



Mechanical

Dimension(L*W*H) 200mm×101.8mm×27mm
Out Shell Galvanized Sheet
Color Black
Weight 500g

Power/Distance

54V

Distance 100m 150m 200m 250m
Power 26W 24W 23W 21W





 Ordering Information





Model Description
LNK-PS108 1Fiber + 8RJ45 PoE+ Switch: 8x10/100M PoE+ (250m), 1XSC SM 20KM
