Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-UVGA-KVM
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
USB VGA KVM Over CAT5/6 UTP Extender |
Product Model: |
LNK-GPoEE1 |
Dimension: |
92 X 89 X 26 Mm |
Humidity: |
5%-90%RH |
PIN: |
USB |
Max Transmission Distance: |
Cat5e :120m，cat6 :150m |
Power: |
Adapter: DC 12V/1A |
Power Dissipation: |
MAX 4W |
Warranty: |
1 Year |
Product Name: |
USB VGA KVM Over CAT5/6 UTP Extender |
Product Model: |
LNK-GPoEE1 |
Dimension: |
92 X 89 X 26 Mm |
Humidity: |
5%-90%RH |
PIN: |
USB |
Max Transmission Distance: |
Cat5e :120m，cat6 :150m |
Power: |
Adapter: DC 12V/1A |
Power Dissipation: |
MAX 4W |
Warranty: |
1 Year |

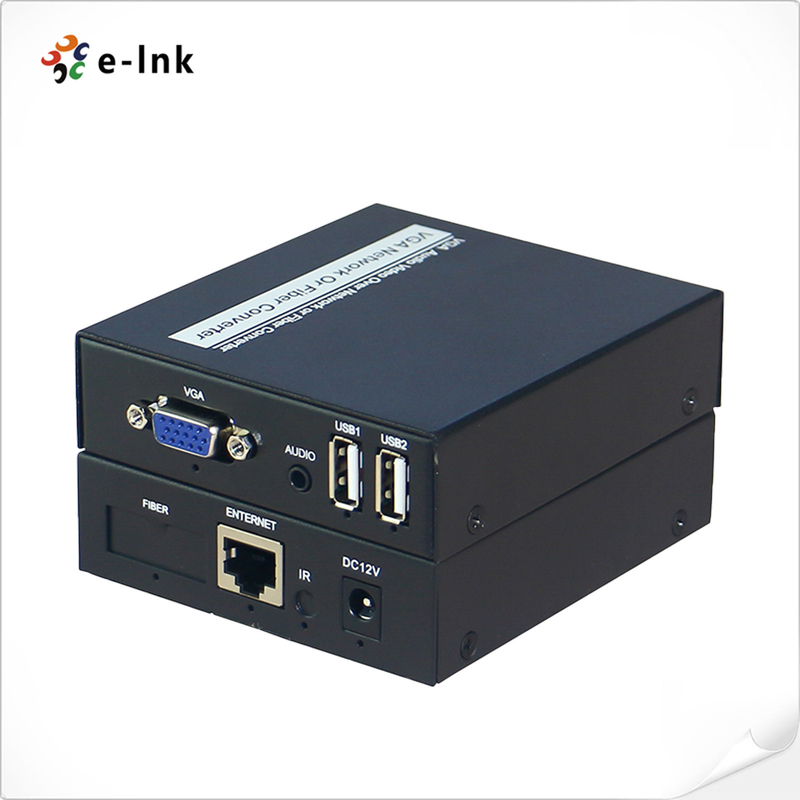

USB VGA KVM over CAT5/6 UTP Extender
USB VGA KVM over CAT5/6 UTP Extender Advantages
Technical Indexes
| Parameter | Description | |
| Video | Signal Type | VGA |
| BW | 380MHz | |
| Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
| Impedance | 75Ω | |
| Audio | Port | 3.5mm Stereo audio socket |
| Type | Stereo | |
| K/M | PIN | USB |
| Ethernet port | Cable Type | IEEE 568B |
| Max transmission distance | Cat5e :120m,cat6 :150m | |
| Other | Power | Adapter: DC 12V/1A |
| Power dissipation | MAX 4W | |
| Temperature | Operating:-5℃ ~ +70℃ | |
| Humidity | Operating:5% ~ 90% | |
| Size | 92 x 89 x 26 mm | |
| Warranty | 1 year | |
Overview
LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications.
The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
Ordering Information
| Part No | Description of product |
| LNK-UVGA-T/R | VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
| LNK-UVGA-KVM-T/R | USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
