Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-MHDE-60
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: HDMI Over CAT5 / CAT6 Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pairs/month
Product Name: |
HDMI Extender Over Cat 6 Cable |
Feature: |
POC Function |
Compatibility: |
HDMI 1.4 |
Resolution: |
1080P/60Hz |
Signal Type: |
Digital |
Cable: |
UTP CAT6/6a/7 Cable |
Transmission Distance: |
60 Meters |
Warranty: |
1 Year Warranty |
Dimension: |
79*43*23mm |
Operating Temperature: |
-5℃ ~ +70℃ |
Product Name: |
HDMI Extender Over Cat 6 Cable |
Feature: |
POC Function |
Compatibility: |
HDMI 1.4 |
Resolution: |
1080P/60Hz |
Signal Type: |
Digital |
Cable: |
UTP CAT6/6a/7 Cable |
Transmission Distance: |
60 Meters |
Warranty: |
1 Year Warranty |
Dimension: |
79*43*23mm |
Operating Temperature: |
-5℃ ~ +70℃ |
HDMI Extender Over Cat 6 Cable With POC Function 1080P 60Hz 60 Meters
1080P HDMI Extender Over CAT Cable Advantage
► The highest resolutions supported is up to 1080P@60Hz
► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
► Support EDID pass-through for smart match between the source device and display device
► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable

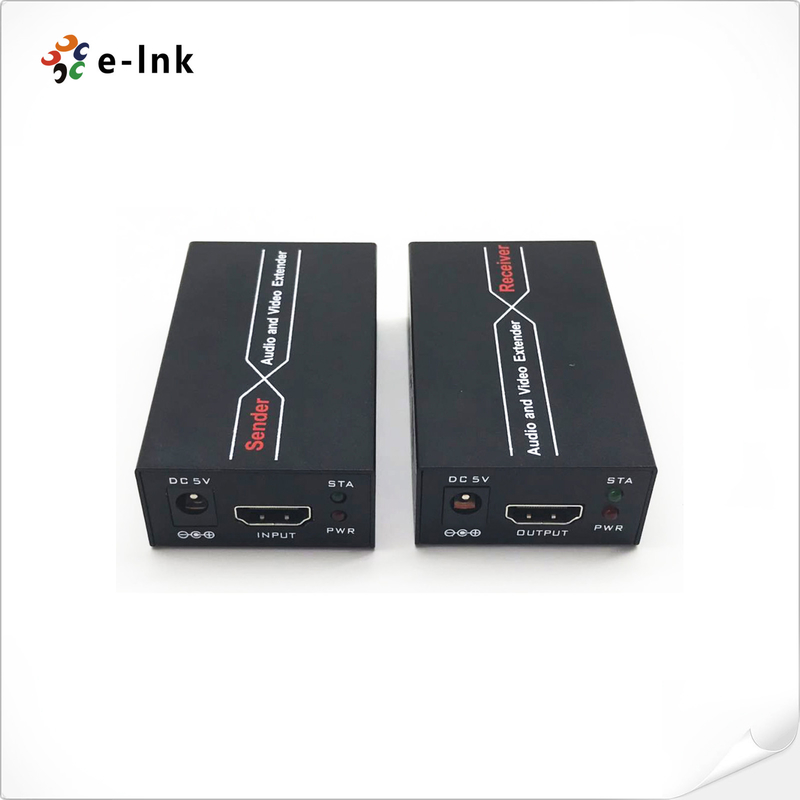

HDMI Over CAT6 Transmitter Receiver Overview
This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable).
HDMI Extender Over CAT6 Cable Technical Indexes
|
Parameter |
Description |
|
|
Video
|
Standards |
HDMI 1.3; HDCP 1.3 |
|
Maximum pixel clock |
165MHz Digital |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
3D:1080p 60Hz; 1080i 50/60Hz, 720p 50/60Hz, 576i 50Hz, 576p 50Hz, 480i 60Hz, 480p 60Hz, |
|
|
HDMI |
Impedance |
100Ω |
|
Connector |
HDMI-A |
|
|
HDMI cable |
Less than 5m at 1080p 60hz |
|
|
RJ45 |
Interface |
RJ45 |
|
Transmission distance |
CAT6/7--- 60m at 1080p 60hz |
|
|
Network cable |
Low resistance and consumption oxygen-free copper core (CAT6,CAT6A,CAT7)-UTP |
|
|
Other |
Power supply |
The power adapter: DC 5V/1A |
|
Power dissipation |
MAX 3W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
The warranty |
1 year free warranty |
|
1080P HDMI Extender Over Coaxial Cable Ordering Information
|
Model |
Description |
|
LNK-MHDE-60
|
60M 1080P 60Hz HDMI Extender over cat6 with POC Function, including 1 Transmitter & 1 Receiver, used by pairs
|
