Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-S3011N-20
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
WDM Gigabit Media Converter |
Distance: |
20KM/40KM/60KM/80KM/120KM |
Wavelength: |
1310nm/1490nm/1550nm |
Fiber Type: |
Single Fiber Single Mode |
Power Supply: |
Built-in PSU |
Warranty: |
3 Years |
Operating Temperature: |
-10~55ºC |
Operating Humidity: |
5%~90% |
Product Name: |
WDM Gigabit Media Converter |
Distance: |
20KM/40KM/60KM/80KM/120KM |
Wavelength: |
1310nm/1490nm/1550nm |
Fiber Type: |
Single Fiber Single Mode |
Power Supply: |
Built-in PSU |
Warranty: |
3 Years |
Operating Temperature: |
-10~55ºC |
Operating Humidity: |
5%~90% |

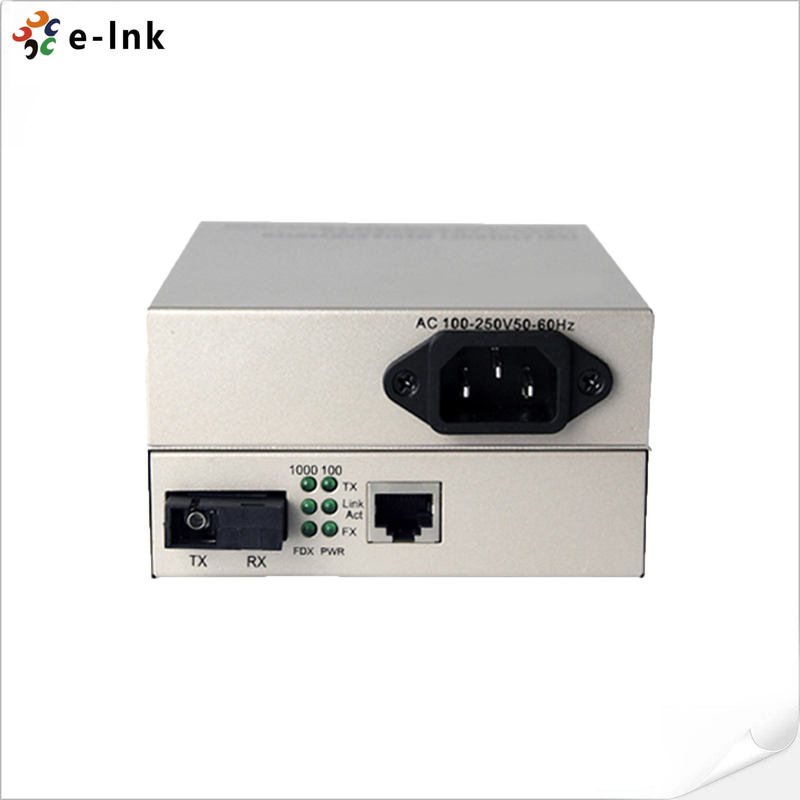

Commercial 10/100/1000M WDM Gigabit Ethernet Media Converter with Built-in PSU
WDM Fiber Media Switch Advantages
► 10/100/1000Mbps auto-sensed, facilitating network upgrade
► Built-in efficient switching core to implement flow control and reduce broadcast packets
► Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Support half /full-duplex of FX and link failure alert with optional dip-switch
► Support 10/100/1000Mbps store-and-forward and 1000Mbps cut-through transmission with optional dip-switch
Single Fiber Bidirectional Media Converter Overview
LNK-S3011N Series Ethernet media converter can inter convert electrical signals of 100Base-T and 1000Base–TX twisted pairs with optical signals of 1000Base-FX. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through).
SC Gigabit Media Converter Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
|
Wavelength |
1310nm/1490nm/1550nm |
|
Transmission distance |
Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Single mode Single fiber: SC or FC (9/125μm) |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
|
Power supply |
Internal: AC90~264V/DC100~380V input |
|
Power consumption |
<40W (the chassis at full load), <2W |
Enterprise WDM Fiber Media Converter Ordering Information
|
LNK-S3011N-20 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs |
|
LNK-S3011N-40 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 40km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs |
|
LNK-S3011N-60 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 60km, 1490/1550nm, SC, standalone, external power adaptor, used by pairs |
|
LNK-S3011N-80 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 80km, 1530/1610nm, SC, standalone, external power adaptor, used by pairs |
|
LNK-S3011N-120 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 100km, 1490/1550nm, SC, standalone, external power adaptor, used by pairs |
