HDMI Fiber Optic Extender For 800x600P60 To 1920x1200P60

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-HDMI-100#3243

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: HDMI Fiber Extender Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

uncompressed HDMI Fiber Optic Extender

,

60KM HDMI Fiber Optic Extender

,

HDCP1.2 Fiber HDMI Extender

Keyword:
Fiber Hdmi Extender
Protocal:
HDMI1.3b,HDCP1.2
Audio Format:
44.1K,48K,96K,176K,192K
Baud Rate:
Support 115200
Pixel Band Width:
300MHz
Transmission Distance:
10KM/20KM/40KM/60KM
Keyword:
Fiber Hdmi Extender
Protocal:
HDMI1.3b,HDCP1.2
Audio Format:
44.1K,48K,96K,176K,192K
Baud Rate:
Support 115200
Pixel Band Width:
300MHz
Transmission Distance:
10KM/20KM/40KM/60KM
Description
HDMI Fiber Optic Extender For 800x600P60 To 1920x1200P60

1/2/4/8Ch 4k Fiber Optic Hdmi Extender ESD Protection Circuit Inside



Fiber Video Converter 1/2/4/8-Channel HDMI Fiber Optic With External Audio Extender



HDMI To Fiber Converter Advantages

► The attenuation of optical module SFP low to -3db

► 1 channel analog audio (3.5mm)

► Automatic identification and configure display mode

► ESD protection circuit inside, to ensure the ESD damage.


Technical Indexes

Video format

800x600P60 1024x768P60

1280x800P60 1280x1024P60

1360x768P60 1366x768P60

1400x1050P60 1440x900P60

1600x900P60 1600x1200P60

1680x1050P60 1280x720P50

1280x720P60 1920x1080P24

1920x1080P25 1920x1080P30

1920x1080P50 1920x1080P60

1920x1080I60 1920x1080I50 1920x1200P60

The signa of Audio input and output

3.5MM Audio

RS232 port

3 ports industrial terminal

RS232 Baud rate

Support 115200 and all below

KVM receiver port

A USB port

KVM transmitter port

B USB port

Fiber port

LC

Fiber module

SFP single mode

Fiber wavelength

1550/1310nm

Fiber band width

3Gbps

Overview

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.

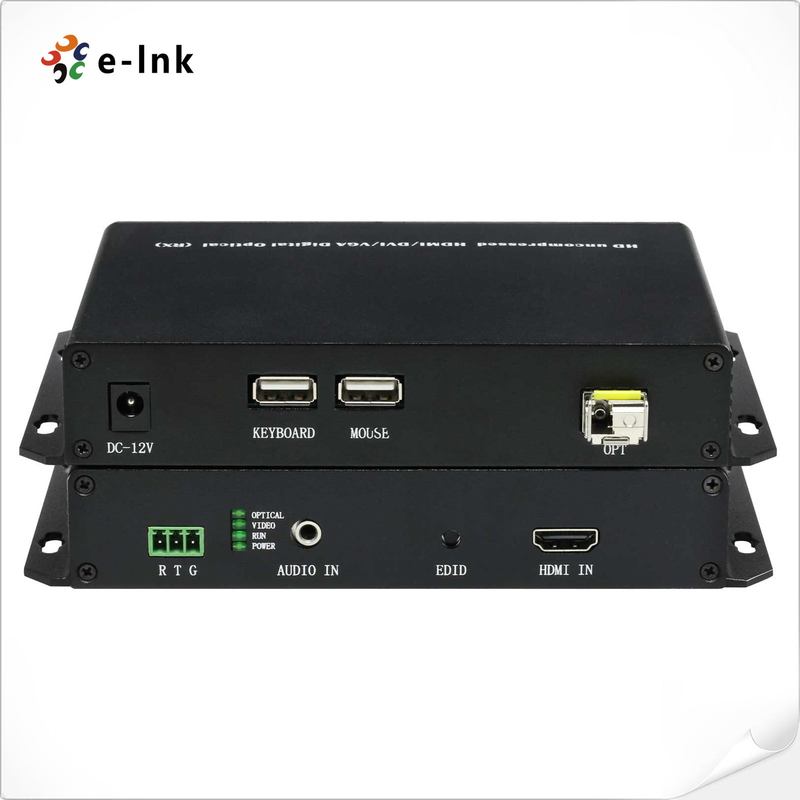

Transmitter

HDMI Fiber Optic Extender For 800x600P60 To 1920x1200P60 0

Receiver

HDMI Fiber Optic Extender For 800x600P60 To 1920x1200P60 1

Ordering Information

Model

Description

LNK-HDMI-100

HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-200

HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-400

HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

LNK-HDMI-800

HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs



Ordering Information



Item Description
LNK-HDMI-100 HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-200 HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-400 HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-800 HDMI to Fiber Converter: 8-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
