3g Sdi To Hdmi Converter 1080p 60hz Long Distance Up To 150m

Product Details

Place of Origin: china

Brand Name: E-link

Certification: CE,FCC,Rohs

Model Number: LNK-SHC110

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-8work

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000pair/month

Get Best Price
Contact Now
Specifications
Highlight:

3g sdi to hdmi converter

,

1080p 3g sdi to hdmi converter

,

150m 3g sdi to hdmi converter

Cable Color:
Yellow, Orange, Blue, Green, White, Black
Cable Diameter:
2.0mm, 3.0mm, 4.0mm
Cable Length:
1m, 2m, 3m, 5m, 10m, 20m, 30m, 50m
Cable Type:
Single Mode, Multi Mode
Connector Material:
Zirconia Ceramic, Phosphor Bronze
Connector Type:
LC, SC, ST, FC, MU, MTRJ, E2000
Durability:
1000 Times
Fiber Count:
2, 4, 6, 8, 12, 24, 48
Fiber Mode:
Simplex, Duplex
Insertion Loss:
≤0.2dB
Jacket Material:
PVC, LSZH
Operating Temperature:
-40℃ To +85℃
Product Name:
Fiber Optic Accessories
Return Loss:
≥45dB
Storage Temperature:
-40℃ To +85℃
Cable Color:
Yellow, Orange, Blue, Green, White, Black
Cable Diameter:
2.0mm, 3.0mm, 4.0mm
Cable Length:
1m, 2m, 3m, 5m, 10m, 20m, 30m, 50m
Cable Type:
Single Mode, Multi Mode
Connector Material:
Zirconia Ceramic, Phosphor Bronze
Connector Type:
LC, SC, ST, FC, MU, MTRJ, E2000
Durability:
1000 Times
Fiber Count:
2, 4, 6, 8, 12, 24, 48
Fiber Mode:
Simplex, Duplex
Insertion Loss:
≤0.2dB
Jacket Material:
PVC, LSZH
Operating Temperature:
-40℃ To +85℃
Product Name:
Fiber Optic Accessories
Return Loss:
≥45dB
Storage Temperature:
-40℃ To +85℃
Description
3g Sdi To Hdmi Converter 1080p 60hz Long Distance Up To 150m

3G-SDI to HDMI Converter



3G-SDI to HDMI Converter Advantages

 Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

 Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C

 Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio

 Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

 Connect with other units to extend your signal over long distances

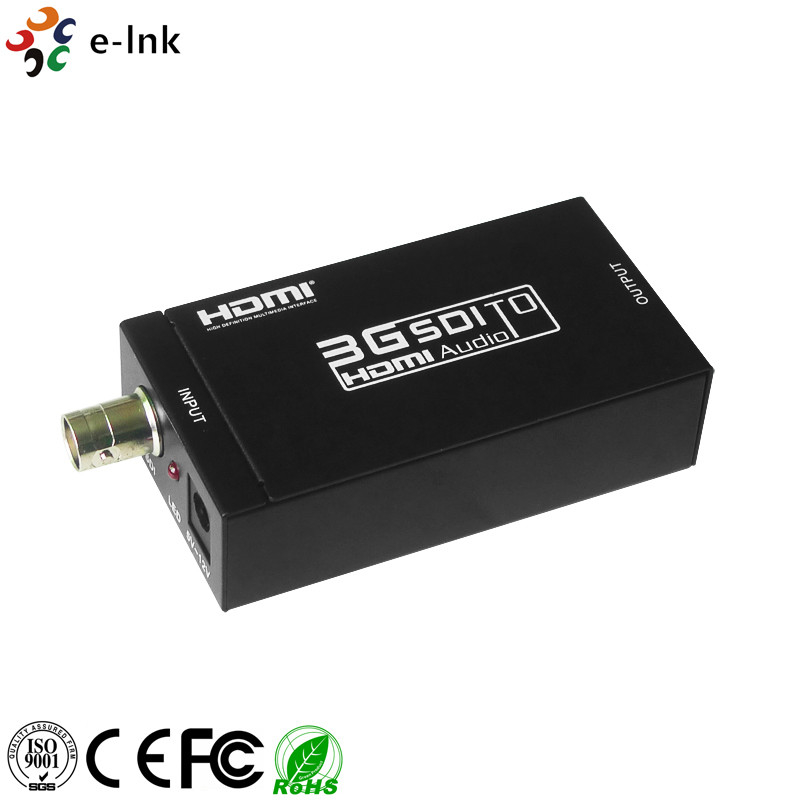

3G-SDI to HDMI Converter Picture

3g Sdi To Hdmi Converter 1080p 60hz Long Distance Up To 150m 0



3G-SDI to HDMI Converter Application

3g Sdi To Hdmi Converter 1080p 60hz Long Distance Up To 150m 1


3G-SDI to HDMI Converter Technical Indexes





Parameter

Specifications
Input Port



1 x BNC (SDI/HD-SDI/3G-SDI)

Output Port 1 x HDMI
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution

480i, 576i, 720p@50/59.94,60 ,

1080i@50/59.94/60

1080p@23.98/24/25/29.97/30/50/59.94/60

1080PsF@23.98/24/25/29.97/30

HDMI input/output connect HDMI type A 19Pin
Power Adapter DC5V/1A
Operating temperature range -40℃ to +70℃
Operating humidity range 5 to 90% RH (no condensation)
Shippingweight 0.15 KGS
Dimensions( L x W x H) 98.5 x 85 x 31mm

3G-SDI to HDMI Converter Ordering Information



Item Description
LNK-SHC110 3G/HD/SD-SDI to HDMI Converter, Inputs: 1 x SDI (3G/HD/SD), Outputs: 1 x HDMI
