Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-POE2GP
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: PoE Splitter Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pcs per month
Product Name: |
PoE Injector And Splitter Kit |
Internal Wire Size : |
24 AWG Solid Copper |
Housing Material: |
ABS |
DC Connector Size: |
5.5 X 2.1 Mm |
Power Input: |
9~48V DC |
Output Current: |
1A Maximum |
Product Name: |
PoE Injector And Splitter Kit |
Internal Wire Size : |
24 AWG Solid Copper |
Housing Material: |
ABS |
DC Connector Size: |
5.5 X 2.1 Mm |
Power Input: |
9~48V DC |
Output Current: |
1A Maximum |

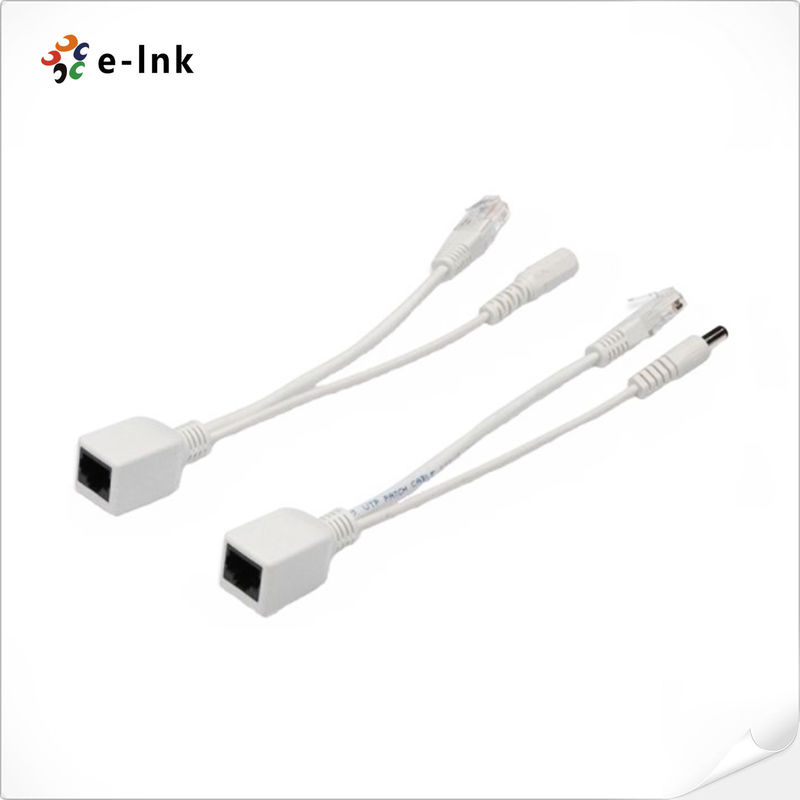

The LNK-POE2GP passive power-over-Ethernet (PoE) gigabit splitter and injector device is compliant with the IEEE 802.3af/at standard. It features 5.5 x 2.1 mm size DC connectors and guarantees superior operation for 10 Mbps 10BASE-T, 100 Mbps 100BASE-TX and the gigabit (1000 Mbps) 1000BASE-T operations. Moreover, E-link engineers designed the device with solid copper, 24 AWG wire and shielded connectors, all of which granted an additional internal drain wire for optimal performance. Lastly, a green LED indicates presence of voltage.
This Power Over Ethernet (PoE) injector offers plug and play convenience and is IEEE 802.3at/at compliant. It includes passive injector and splitter sides and works with all DC powered non-PoE devices, including Access Points, CPEs, IP cameras and IP phones. It supports 10/100/1000 Mbps base-TX, with an input voltage of 9V~48V. It also takes turns a standard power outlet into a PoE powered port with the 2.1x5mm male power jack and DC 2.1X5.5mm female power plug.
This injector is extremely easy to install, as it transmits power and data signals through the same Ethernet cable up to 150 feet. However, keep in mind that this distance may vary depending on the type of cable used and the power draw of the device. Furthermore, this injector also has the ability to use the power supply from powered device.
| Standard | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward Filter Rate | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Input Voltage | 9 to 48VDC +/- 5%, Maximum 56VDC |
| Power Pin Assignment | • Data provide over pairs 1/2(+) and 3/6(-) |
| • Power over spare pairs 4/5(+) and 7/8(-) | |
| Ethernet Data Rate | 10/100/1000 Mbps *1000 Mbps - 1 Gigabit |
| Maximum Output Current | 1A |
| Over Current Protection | Yes |
| Ethernet Connectors | Shielded with Internal Drain Wire |
| Internal Wire Size | 24 AWG Solid Copper |
| DC Connector Size | 5.5 x 2.1 mm |
| LED | Green Indicating Voltage Present |
| Housing Material | ABS |
| Dimensions | Length = 8 inches (20.3 cm) |
| Weight | 96 grams (3.3 ounces) |
| Operating Temperature | 0°C to 45°C (-32°F to 113°F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Relative Humidity | 5% to 90% non-condensing |
We provide comprehensive technical support and services for the PoE Power Splitter. Our support team is available via phone, email, and online chat to answer any questions you may have.
Our technicians can help you install and configure your PoE Power Splitter, troubleshoot any issues you may have, and provide advice on optimal use and maintenance.
We also provide software updates and upgrades as needed to ensure your PoE Power Splitter is running at its best.
The PoE Power Splitter is securely packaged for safe delivery. The package contents include the PoE Power Splitter, a power adapter, an instruction manual, and a user guide.
For shipping, we use a reliable third-party delivery service to ensure the product is delivered quickly and safely. We provide tracking information so you can monitor the progress of your delivery.
| Model | Description |
| LNK-POE-2GP | Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors |
