Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-SDI-TX500
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Model No.: |
LNK-SDI-TX500 & LNK-RX500 |
Input / Output Signal Type: |
HD-SDI |
Power Consumption: |
DC12V/1W |
Power Input: |
DC12V/0.07A |
Model No.: |
LNK-SDI-TX500 & LNK-RX500 |
Input / Output Signal Type: |
HD-SDI |
Power Consumption: |
DC12V/1W |
Power Input: |
DC12V/0.07A |
ISO9001 HD SDI Signal Booster Power Consumption HD-SDI Repeaters
Advantages
► Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)
► Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps
► Embedded surge protection cables
► Light Aluminum Housing, Easy to carry and install
Specifications
Model No. | LNK-SDI-TX500 & LNK-RX500 |
Input / Output Signal Type | HD-SDI |
Power Consumption | DC12V/1W |
Power Input | DC12V/0.07A |
Max Distance of Each Pair | RG-6(Belden 1694A)-400m(Full SD:270M) |
Connect Info | SDI Signal Joint BNC-F(75Ω) Power input joint DC Female (5.5*2.1) |
LED Instruction |
Green OFF: HD-SDI input Red ON: Power input |
Operation Temperature / Humidity | -10-50 |
Housing Material / Net Weight(each) | Aluminum/61g |
Gross Weight(pair) | 160g |
Dimension(MM) | 87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale package)z |
Overview

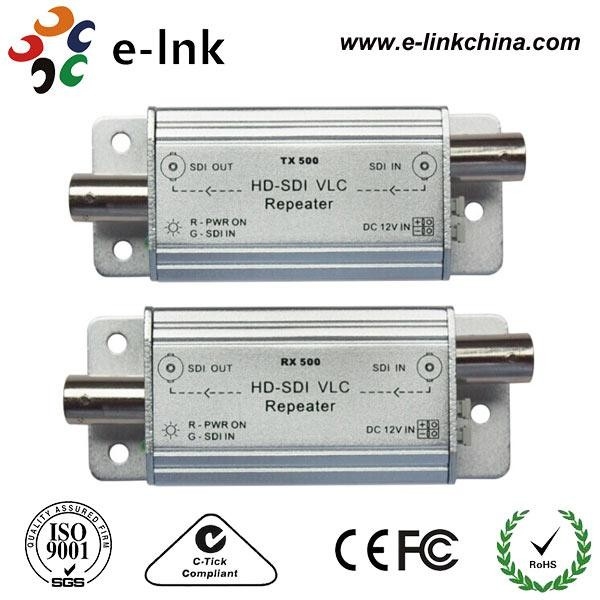

E-link LNK-TX500 is to apply for signal transmitting terminal. LNK-Rx500 is to apply for receiving terminal. LNK-TX500 & LNK-TX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.
Order Information
Item | Description |
LNK-SDI-TX500 | Transmitter: HD-SDI signal amplifier, SDI repeater, SDI Extender. HD signals to extend 500 meters. |
LNK-SDI-RX500 | Receiver: HD-SDI signal amplifier, SDI repeater, SDI Extender. HD signals to extend 500 meters. |
