Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-AP80-1200A
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Outdoor Wireless AP Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
Outdoor Wireless AP |
Throughput: |
1200 Mbps |
RJ45 Port: |
1 Port 10/100 /1000Mbps |
Antenna: |
4PCS SMA Connector |
Memory: |
128MB DDR2 RAM |
Operating Temperature: |
-40~50 ℃ |
Product Name: |
Outdoor Wireless AP |
Throughput: |
1200 Mbps |
RJ45 Port: |
1 Port 10/100 /1000Mbps |
Antenna: |
4PCS SMA Connector |
Memory: |
128MB DDR2 RAM |
Operating Temperature: |
-40~50 ℃ |
LNK-AP80 is a Qualcomm Solution 11ac high power industrial outdoor CPE perfect for the next generation 802.11ac Wi-Fi standard. This device has 1200Mbps Wi-Fi speed evenly distributed over 2.4GHz (300Mbps) and 5GHz (900Mbps). In addition, the device is equipped with a Gigabit WAN port and fast Ethernet data rate, allowing more than 100 end users to access it at a time. Thanks to this technology, end users can enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
The device is IEEE 802.11ac/b/g/n dual band compliant with a 1200Mbps data rate. It is equipped with a 10/100/1000Mbps WAN port that provides faster Ethernet, a 1000mW high power signal that can be strengthened through the use of an external antenna for increased wireless coverage and enhanced stability, 16MB Flash and 128MB DDR2 RAM for greater user power. It is also IEEE 802.3at PoE standard compliant, and supports multiple SSID broadcasting of up to 8 SSIDs (4 in 2.4GHz, 4 in 5GHz), Gateway (PPPOE, static IP, dynamic IP) Wireless AP, Repeater and WISP operation modes. Furthermore, it includes a built-in firewall, IP filter, URL filter and MAC filter to protect from malicious interference. It also meets IEEE 802.3az standard and has beamforming technology, RF power adjustment and frequency analyzer for optimized performance in various scenarios. Finally, the device also provides DDNS, VPN pass through, port forwarding and DMZ host, as well as 64/128-bit WEP security, 128bit WPA (TKIP/AES) security and WPA2 encryption.
| Hardware | ||
| Chipset | Atheros QCA9563 + QCA9882 +QCA8334 | |
| Standard | 802.11ac/b/g/n, MIMO technology | |
| Memory | 128MB DDR2 RAM | |
| Flash | 16MB | |
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port | |
| 1 * Reset button, press 15 seconds to revert to default setting | ||
| Antenna | 4PCS SMA connector | |
| Power consumption | 48V PoE<30W | |
| Weight | 4KG | |
| RF Data | ||
|
Frequency |
2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac | |
|
2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz |
||
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | |
| DSSS = DBPSK, DQPSK, CCK | ||
| Throughput | 1200 Mbps | |
| RF Power |
2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB. 11g @54M:27±2DB, @6M:29±2DB. 11b @11M:28±2DB, @1M:30±2DB. 5.8G: 11a @54M 23.5±2DB, @6M:26.5±2DB. 11n @HT20:MCS7 22.5±2DB, @MCS0:25.5±2DB. 11ac@HT80:MCS9 20.5±2DB, @MCS0:23.5±2DB. |
|
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n@HT20: -70dbm@MCS7, -90dbm@MCS0. 11ac@HT80:-60dbm@MCS9, -86dbm@MCS0. |
|
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
|
| PPM | ±20ppm | |
| Max Users | 128+ | |
| Firmware Features: | ||
| Operation mode | Wireless AP, Gateway, WISP, Wi-Fi Repeater | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |
| SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|
| Protocols | IPv4 | |
| Others: | ||
| Package Contents |
1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
| Environment | Operating Temperature: -40~50 ℃, Storage Temperature: -40~70 ℃ Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
|
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System | |
Outdoor Wireless AP Technical Support and Service include:
Outdoor Wireless AP will be packaged using protective material such as bubble wrap and foam. All items will be securely sealed and labeled before shipment. Shipping will be handled through a third-party logistics provider and will be tracked and insured for the full value of the shipment.
| Model | Description |
| LNK-AP80-1200 |
1200Mbps High Power Outdoor Wireless AP without antenna: User Manual, Install accessory, LAN cable |
| LNK-AP80-1200A |

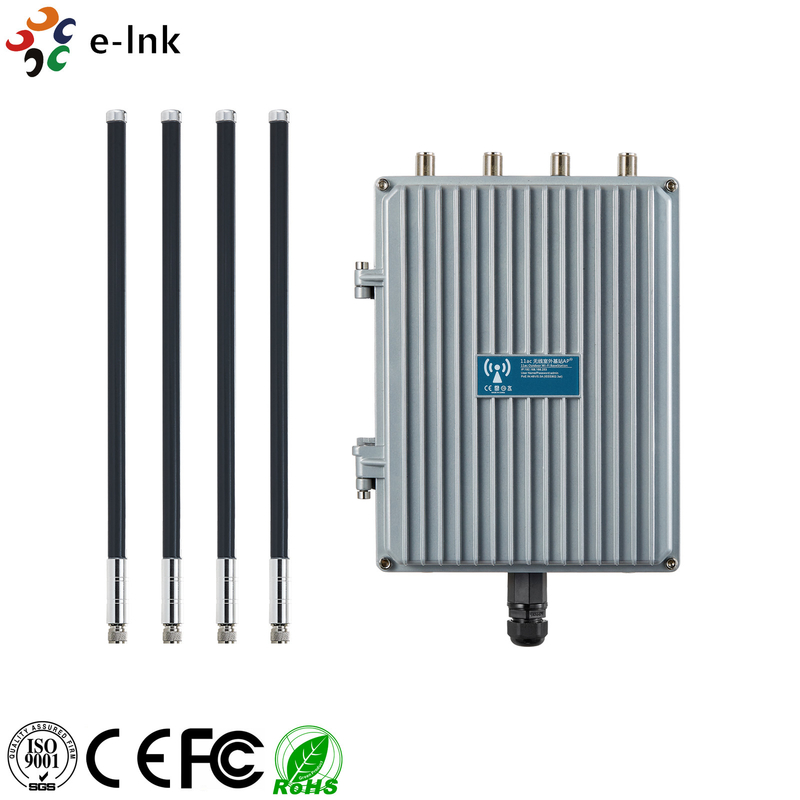

1200Mbps High Power Outdoor Wireless AP with antenna: 2*2.4G 8dBi omni antenna, 2*5.8G 12dBi omni antenna, User Manual, Install accessory, LAN cable |
