HCCP1.2 HDMI Optical Transceiver
, 1.4a HDMI Optical Transceiver

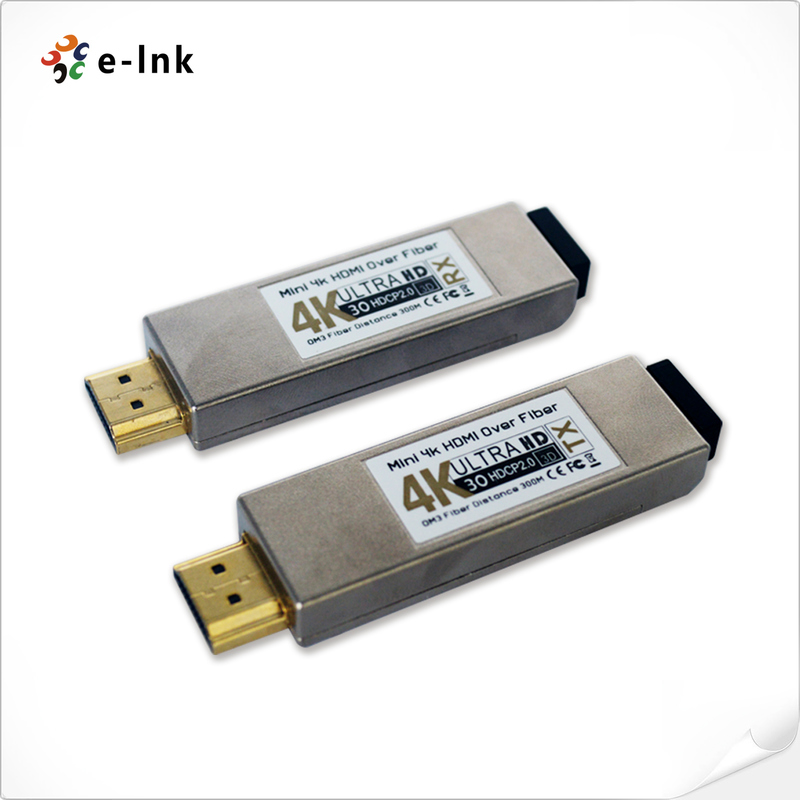

HDMI Optical Transceiver Mini 4K 300m 850nm RoHS Compliant
HDMI Optical Transceiver Mini 4K 300m 850nm RoHS Compliant
Model :LNK-106M
Product Description & Overview
The Mini 4K HDMI Optical Transceiver represents a cutting-edge advancement in high-definition signal
transmission technology, engineered to deliver uncompressed 4K×2K video quality across extended
distances. This compact yet powerful transceiver system employs sophisticated photoelectric conversion
technology to transform HDMI 1.4a signals into high-speed 10Gb/s optical data streams through dual
multimode fibers operating at 850nm wavelength. The integrated transmitter module efficiently encodes
electrical signals into optical format while the corresponding receiver unit precisely reconstructs the
original HDMI output with zero latency, maintaining pristine image quality throughout the 300-meter
maximum transmission distance.
Designed with a space-efficient miniaturized form factor, this professional-grade transceiver features
complete electromagnetic interference immunity, ensuring flawless performance in electrically noisy
environments. The robust construction incorporates industrial-grade components that guarantee
reliable operation in demanding applications including digital signage networks, broadcast facilities,
and premium home entertainment systems. Manufactured in full compliance with RoHS and lead-free
requirements for global market accessibility, this innovative solution provides exceptional value for
modern AV installations requiring both compact dimensions and uncompromised 4K video performance.
The plug-and-play functionality and automatic signal optimization make this transceiver ideal for permanent
installations and temporary setups alike. With enhanced thermal management and advanced error correction
mechanisms, this mini optical transceiver establishes new standards for reliable high-definition video
transmission in corporate presentation environments, educational institutions, and control room applications
where signal integrity and space constraints are equally critical considerations.
Key Features Bullets
|
Type of Extender
|
Fiber Transmitter for HDMI signal over Optical Fiber Cable
|
|
Input Signals
|
HDMI
|
|
Signal Support
|
HDMI 1.4a HDMI format standard and HDCP compliant
|
|
Video Support
|
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
|
|
Audio Support
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Website Specifications
|
Color space 444, 420, 400
|
|
Dynamic EDID
|
Plug & Play, no need to learn
|
|
Fiber Connector
|
Double LC Receptacle
|
|
Transmission Distance
|
Multi Mode, up to 984ft (300M)
|
|
Operating Temperature
|
0°C to + 50°C
|
|
Storage Temperature
|
-20°C to + 85°C
|
|
Humidity
|
to 90% RH (non-condensing)
|
|
Safety Approvals
|
CE, RoHS, FCC
|
|
Dimension (WxDxH)
|
3.15 x 0.79 x 0.35 in (80x20x9mm)
|
|
Weight
|
0.1 kg / 0.22 lb
|
|
Operation Voltage
|
5VDC
|
|
Power Supply
|
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)
|
Ordering Information
|
Item
|
Description
|
|
|
LNK-106M
|
Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
|
Application Scenarios
-
Extending 4K medical imaging displays in operating theaters
-
Supporting broadcast production systems with pristine signal quality
-
Enabling digital signage networks in large commercial spaces
-
Providing conference room presentations with reliable connectivity
-
Facilitating control room monitoring with interference-free transmission
