4K HDMI 2.0 KVM USB over Fiber Optic Extender

Name: 4K HDMI 2.0 KVM USB over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-HF201KM
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: Iso9001, CE, ROHS, FCC

Model Number: LNK-HF201KM

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiate

Packaging Details: HDMI Fiber Extender Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    USB Fiber Optic Extender, KVM USB Fiber Optic Extender, Fiber Optic Extender


Power Consumption:	HDMI Receiver 4W HDMI Transmitter 4W	Device Size:	109.515229.3mm(lengthwidthheight)
Packing Box Size:	32827390mm(lengthwidthheight)	Fiber Port:	3 Ports Industrial Terminal
Temperature Operating:	-10℃ ~ +55℃	Dimension (LxWxH):	163 X 86 X 24(mm)

Power Consumption:	HDMI Receiver 4W HDMI Transmitter 4W
Device Size:	109.515229.3mm(lengthwidthheight)
Packing Box Size:	32827390mm(lengthwidthheight)
Fiber Port:	3 Ports Industrial Terminal
Temperature Operating:	-10℃ ~ +55℃
Dimension (LxWxH):	163 X 86 X 24(mm)

Description

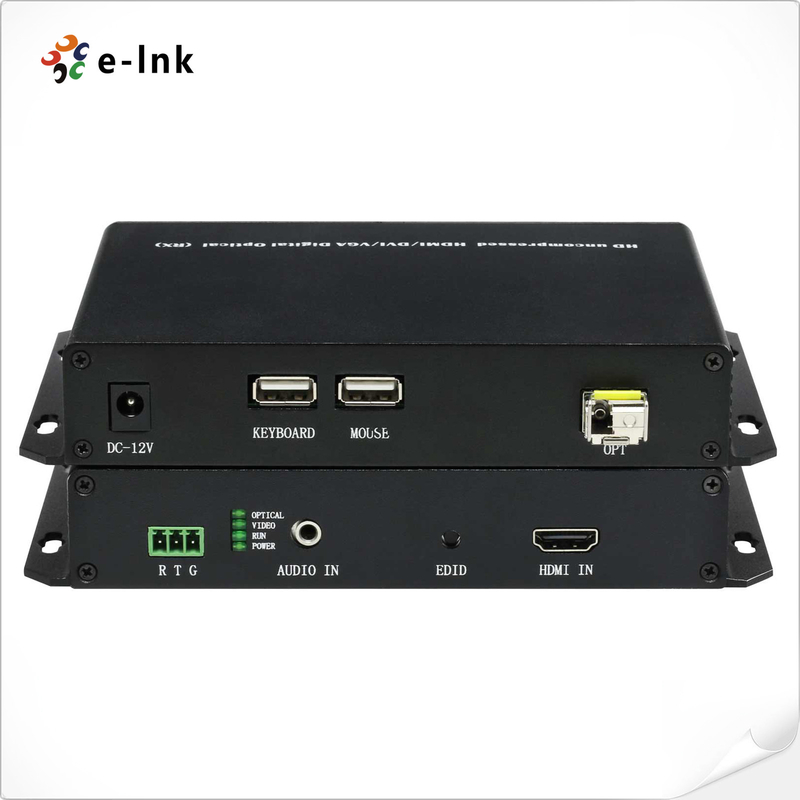

4K HDMI 2.0 KVM USB over Fiber Optic Extender

Model:LNK-HF201KM

Overview

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules

that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at

a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single

Mode Fiber or 300 meters via OM3 Multimode Fiber.

Features

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),

fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Maximum data rate	18Gbps
	Resolution range	800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode or Multimode
	Wavelength	Single-mode 1310nm, Multimode 850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM3 Multimode fiber: 300M Single mode fiber: 10KM
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 5W
	Temperature	Operating: -10℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	163 x 86 x 24(mm)
	Gross weight	1.471KG
	The warranty	1 year free warranty

Application

Ordering lnformation

Model	Description
LNK-HF201KM-M	4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10	4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
