Mini 4K HDMI Optical Transceiver

Name: Mini 4K HDMI Optical Transceiver
Brand: E-link China Technology Co.,LTD
SKU: LNK-106M
Price: 197.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: iso9001

Model Number: LNK-106M

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $25-369

Packaging Details: HDMI Fiber Extender Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              4K HDMI Optical Transceiver, Mini 4K HDMI Optical Transceiver


Website Specifications:	Color Space 444, 420, 400	Fiber Connector:	Double LC Receptacle
Transmission Distance:	Multi Mode, Up To 984ft (300M)	Power Supply:	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Website Specifications:	Color Space 444, 420, 400
Fiber Connector:	Double LC Receptacle
Transmission Distance:	Multi Mode, Up To 984ft (300M)
Power Supply:	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Description

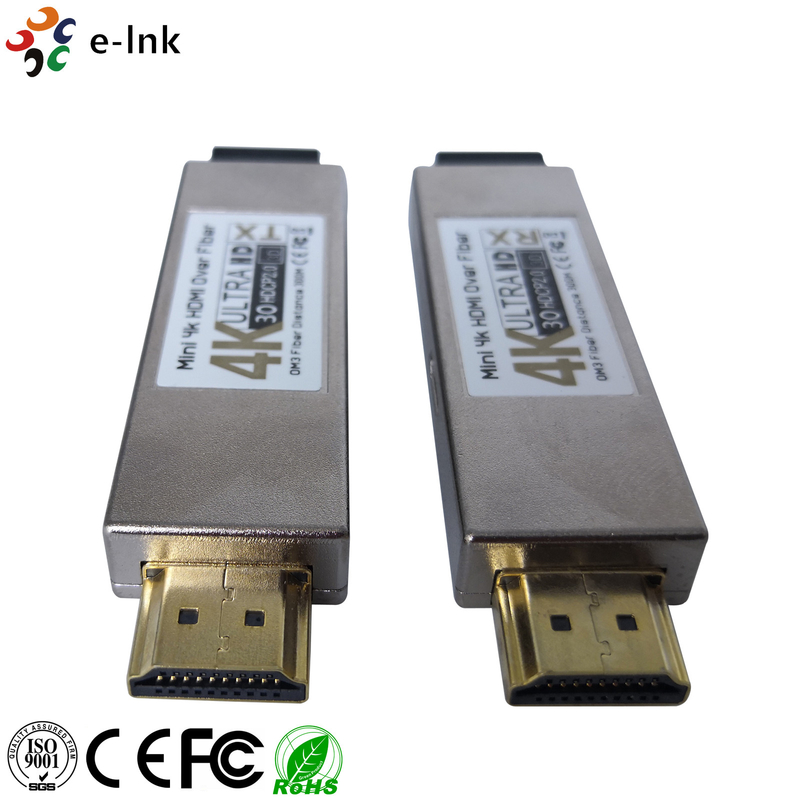

Mini 4K HDMI Optical Transceiver

HDMI Fiber Extender

 HDMI 1.4a and HCCP1.2 Support

 Uncompressed transmission,No delay,No losses

 DDC CEC HPD Signal Support

 Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3

Multimode Fiber (850nm)

 Supports All Modes up to 4K*2K@30Hz Resolution

 Standard HDMI Connector

 Integrated USB Connector for Power

 Hot-Pluggable, EMI/RFI Resistant

 Miniature form factor for ease of use and installation

 850nm VCSEL and PIN Photodetector

 Video over (2) multimode fibers

 Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)

 Operating Case Temperature: 0~70°C

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS
Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Mini 4K HDMI Optical Transceiver 0

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
