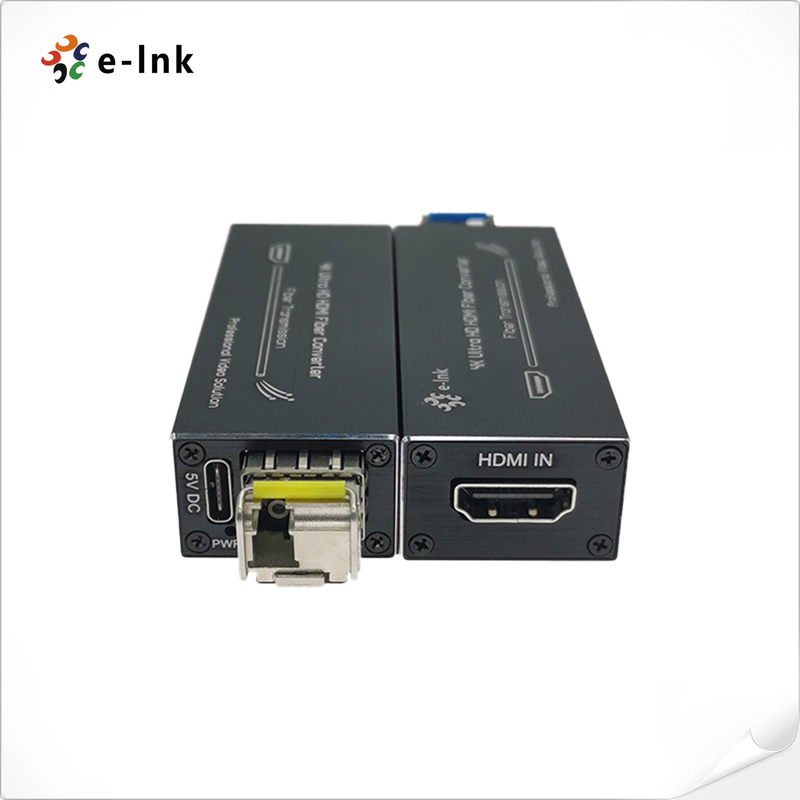

HDMI Fiber Extender Micro Mini 4K 80km HDCP 1.2 USB-C
HDMI Fiber Extender Micro Mini 4K 80km HDCP 1.2 USB-C
Model:LNK-MH4K Series
Product Description & Overview
The LNK-MH4K Series represents a breakthrough in space-efficient fiber optic technology, engineered
to deliver uncompressed 4K×2K HDMI 1.4a signals across remarkable distances up to 80km. This micro-
mini extender utilizes advanced photoelectric conversion technology to transform HDMI signals into high-
speed 10Gb/s serial data streams for flawless fiber optic transmission. The ultra-compact design incorporates
industrial-grade components that ensure complete immunity to electromagnetic interference while maintaining
pristine signal integrity throughout the maximum transmission distance.
Featuring a sophisticated transmitter that encodes HDMI signals for optical transmission and an intelligent
receiver that precisely reconstructs the original output, this professional-grade solution guarantees zero
latency and lossless video quality. The micro-mini form factor makes it ideal for space-constrained installations
in broadcast facilities, digital signage networks, and high-end home entertainment systems where both
performance and physical dimensions are critical considerations.
Manufactured in full compliance with RoHS and lead-free requirements for global market deployment, this
reliable extender supports applications ranging from large-screen displays and conference room systems
to medical imaging and control room environments. The enhanced thermal management system ensures
stable operation across varying environmental conditions, while the plug-and-play functionality simplifies
installation in both permanent and temporary setups. Perfect for modern AV integrations requiring maximum
performance in minimal space, this micro-mini fiber extender establishes new standards for compact, high-
performance signal transmission in professional and residential applications demanding uncompromised
4K video quality over extended distances.
Key Features Bullets
-
Ultra-Compact 4K Transmission
Supports 4K×2K@30Hz resolution with uncompressed zero-delay transmission
-
Extended Fiber Optic Reach
80km maximum transmission distance over single fiber cable
-
High-Speed Data Performance
10.3Gbps data rate ensures lossless video quality
-
Advanced Signal Management
DDC CEC HPD signal support for enhanced display control
-
Modern Power Design
USB-C connector for convenient power input
-
Content Protection Compliance
HDMI 1.4a and HDCP 1.2 standards compatibility
-
Compact Industrial Design
Miniature form factor with wide operating temperature (-10~60°C)
-
EMI/RFI Immune Operation
Complete electromagnetic interference resistance
-
Hot-Pluggable Connectivity
Live connection capability for flexible installation
Technical Specifications & Indexes
|
Type of Extender
|
Fiber Transmitter for HDMI signal over Optical Fiber Cable
|
|
Input Signals
|
HDMI
|
|
Connector
|
Female HDMI type A
|
|
Signal Support
|
HDMI 1.4a HDMI format standard and HDCP compliant
|
|
Video Support
|
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
|
|
Audio Support
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Chroma Subsampling
|
Color space 420, 400
|
|
Dynamic EDID
|
Plug & Play, no need to learn
|
|
Fiber Connector
|
SFP/LC
|
|
Bandwidth
|
10.3Gbps
|
|
Transmission Distance
|
300m (Over OM3 Fiber)
|
|
Up to 80km (Over Single-mode Fiber)
|
|
Operating Temperature
|
-10 to + 60°C
|
|
Storage Temperature
|
-20 to + 85°C
|
|
Humidity
|
5% to 90% RH (non-condensing)
|
|
MTBF
|
100,000 hours
|
|
Dimension (WxDxH)
|
3.07 x 1.06 x 0.69in (78x27x17mm)
|
|
Weight
|
50g / 0.11 lb
|
|
Power Supply
|
5V DC (USB-C)
|
|
Power dissipation
|
<5W
|
|
Safety Approvals
|
CE, FCC, RoHS
|
Ordering Information
|
Model
|
Description
|
|
|
LNK-MH4K-MM
|
Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S20
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S40
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-80
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S80
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
Application Scenarios
-
Extending 4K medical imaging displays in operating rooms
-
Supporting broadcast control room video distribution systems
-
Enabling digital signage networks in retail environments
-
Providing conference room presentation system connectivity
-
Facilitating industrial monitoring with high-resolution displays
