Product Details
Place of Origin: China
Brand Name: E-link
Model Number: LNK-NIC-10GE
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: ethernet network adapter standard export package
Delivery Time: 5-8 working day
Payment Terms: T/T,Western Union,MoneyGram,PayPal
Supply Ability: 1000pcs/month
Baffle Height: |
Half & Full Height |
Bus Type: |
PCIe V3.0 X4，compatible With X8, X16 |
Data Rate Per Port: |
10/100/1000M/2.5G/5G/10Gbps Data Rate |
Connector: |
1*10G RJ45 |
Size: |
125 X 125 X 20 Mm |
Baffle Height: |
Half & Full Height |
Bus Type: |
PCIe V3.0 X4，compatible With X8, X16 |
Data Rate Per Port: |
10/100/1000M/2.5G/5G/10Gbps Data Rate |
Connector: |
1*10G RJ45 |
Size: |
125 X 125 X 20 Mm |

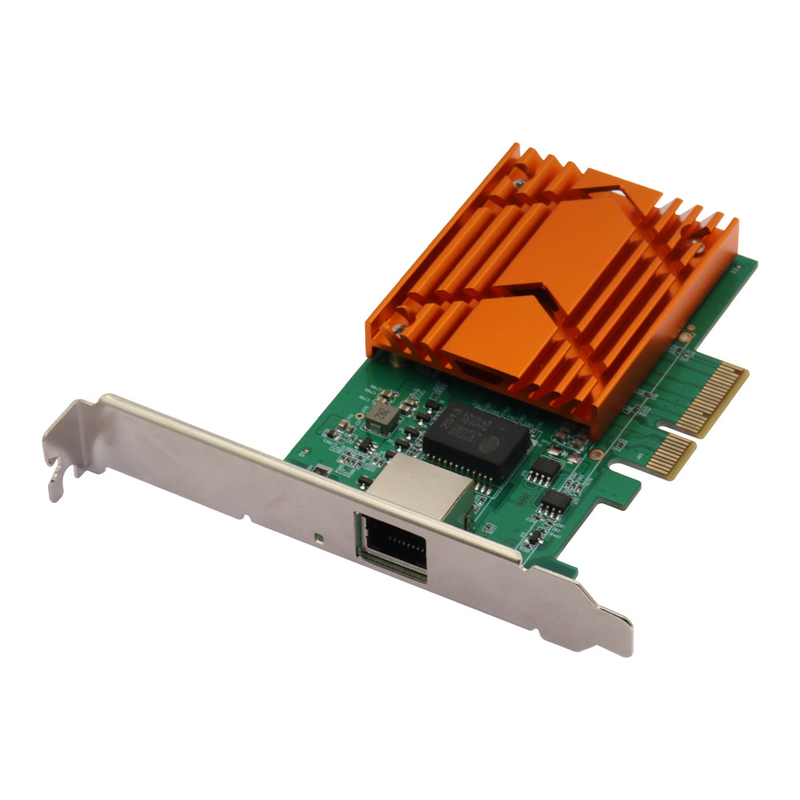

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Ethernet Network Adapter Features
► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
► Jumbo frame support up to 16 KB.
► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.
► Brown and Green color optional
Overview
LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on
the xxx chip solution.It is also compatible with PCle x8 and x16 channels. A high-performance,
five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient
connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.
The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of
100 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling.
The LNK-NIC-10GE is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASET,
5GBASE-T, 10GBASE-T,1000BASE-T and 100BASE-TX transmission over 100m twisted pair
cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and
low CPU utilization with up to 16 KB of massive data frame support.
Technical Indexes
| Transmission medium | Copper |
| Copper Type |
10GBase-T:Cat 7 or higher up to 30m 5GBase-T:Cat 7 or higher up to 30m 2.5GBase-T:Cat 6A or higher up to 100m 1GBase-T:Cat 6 or higher up to 100m 100MBase-T:Cat 6 or higher up to 100m |
| Baffle Height | Half & Full height |
| Power Consumption | 4.7W |
| OS Support |
Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 Linux Stable Kernel version 2.6.32/3.x/4.x or later Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later VMware ESX/ESXi 4.x/5.x/6.x or later |
| Bus Type | PCIe v3.0 x4,compatible with x8, x16 |
| Data rate per port | 10/100/1000M/2.5G/5G/10Gbps data rate |
| Connector | 1*10G RJ45 |
| Standards compliant |
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Size | 125 x 125 x 20 mm |
| Weight | 90g |
| LED indication |
Power: Light on when power on; LNK/ACT: Light on when connected, light blinks when transfer data. |
| Model | Description |
| LNK-NIC-10GE | PCIE x4 Single-port RJ45 10G Ethernet Network Adapter |
