Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, ROHS, FCC
Model Number: LNK-DAN-D4
Document: E-link LNK-DAN-D4 Dante 2Ch....0.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 3 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 5000 Pcs/Month
Channels Of Audio: |
2 Channel Analog |
Cable Length: |
30cm |
Frequency Response: |
20Hz To 20kHz (-/+0.5dB) |
Casing: |
Plastic Casing |
Net Weight: |
145g |
Dimensions: |
114 X 30 X 28 Mm |
Channels Of Audio: |
2 Channel Analog |
Cable Length: |
30cm |
Frequency Response: |
20Hz To 20kHz (-/+0.5dB) |
Casing: |
Plastic Casing |
Net Weight: |
145g |
Dimensions: |
114 X 30 X 28 Mm |
Dante Audio Adapter Technical Indexes
|
Port |
|
|
RJ45 Port |
Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
|
XLR Port |
2 x XLR port, connect output device |
|
Audio |
|
|
Max signal level |
+18 dBu |
|
Output Gain |
-6 dBu |
|
Frequency Response |
20Hz to 20kHz(-/+0.5dB) |
|
Impedance |
150 Ohm balanced, 75 Ohm unbalanced |
|
Dynamic Range |
>100 dB |
|
Signal to Noise Ratio |
>100 dB |
|
THD |
<0.01% @+4dBu |
|
Dante |
|
|
Sample Rate |
44.1kHz, 48kHz, 96kHz |
|
Bit Depth |
24 |
|
Dante Device latency |
1,2 or 5ms (configurable using Dante Controller) |
|
Type |
Analog 0X2 |
|
General |
|
|
Operation Temperature |
-5 to +55℃ (+23° to +131°F) |
|
Storage Temperature |
-25 to +70℃ (-13° to +158°F) |
|
Power |
802.3af PoE |
|
Power Consumption |
2.6W(Max) |
2Ch Analog adapter Ordering Information
|
Model |
Description |
|
LNK-DAN-D4 |

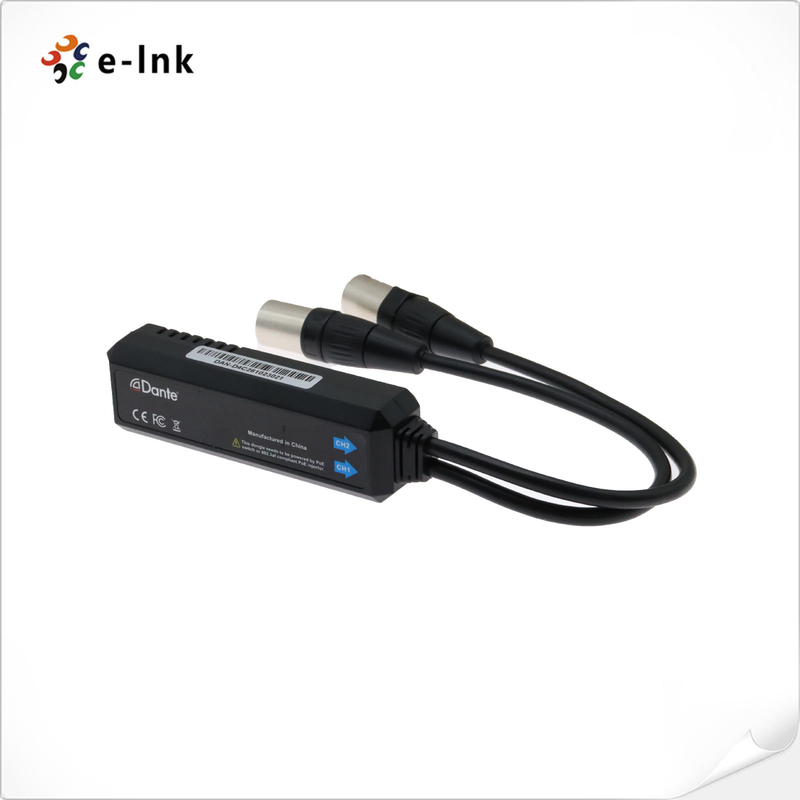

Dante 2Ch Analog Output Dongle Converter |
