Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

Name: Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485
Brand: E-link China Technology Co.,LTD
SKU: LNK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-4KH-1D1U1E1A1R

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Standards:	HDMI V2.0	RS232/RS485 Baud Rate:	600~115200bps, 8bit, 1 Stop Bit, No Check.
Data Bits:	8	Wavelength:	1270/1330nm
Power Adapter:	DC 12V/1A	Dimension:	14811528mm

Standards:	HDMI V2.0
RS232/RS485 Baud Rate:	600~115200bps, 8bit, 1 Stop Bit, No Check.
Data Bits:	8
Wavelength:	1270/1330nm
Power Adapter:	DC 12V/1A
Dimension:	14811528mm

Description

Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

HDMI Fiber Extender Advantages

► Transmits HDMI video signal up to 20km over one fiber optic cable;

► Support HDMI video resolution up to 4096*2160P@60Hz;

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chroma sampling.

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.

► Support HDMI video loop out;

► Support KVM;

► Support 10/100M Ethernet;

► Support IR control;

► Support EDID;

► Support Dip Switch;

► Simple to install, plug and play

Specifications

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x 1R 1 x RJ45(10M/100M, TCP/ IP protocol) 1 x USB
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 ×IR 1 x RJ45(10M/100M, TCP/ IP protocol) 2 x KVM
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
Video Resolution	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
Supported Standards	DVI	1.0
Audio	Interface	3.5mm Audio Interface
Audio	Signal type	Operate via DIP switch, Up for External Audio Down for HDMI
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
KVM	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS23 bidirectional default, RS485 reverse optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8
Ethernet	Interface	RJ45
Ethernet	Data Rate	10/100Mbps
Fiber	Interface	SFP/LC connector
	Fiber type	Single-mode single fiber
	Wavelength	1270/1330nm
	Transmission distance	20km
Other	Power supply	DC 12V/1A
	Power dissipation	MAX 10W
	Temperature	Operating: -25℃ ~ +55℃ Storage: -40℃ ~ +85℃
	Humidity	20% ~ 90%
	Weight	1kg
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
	Work Time	7x24 Hours

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

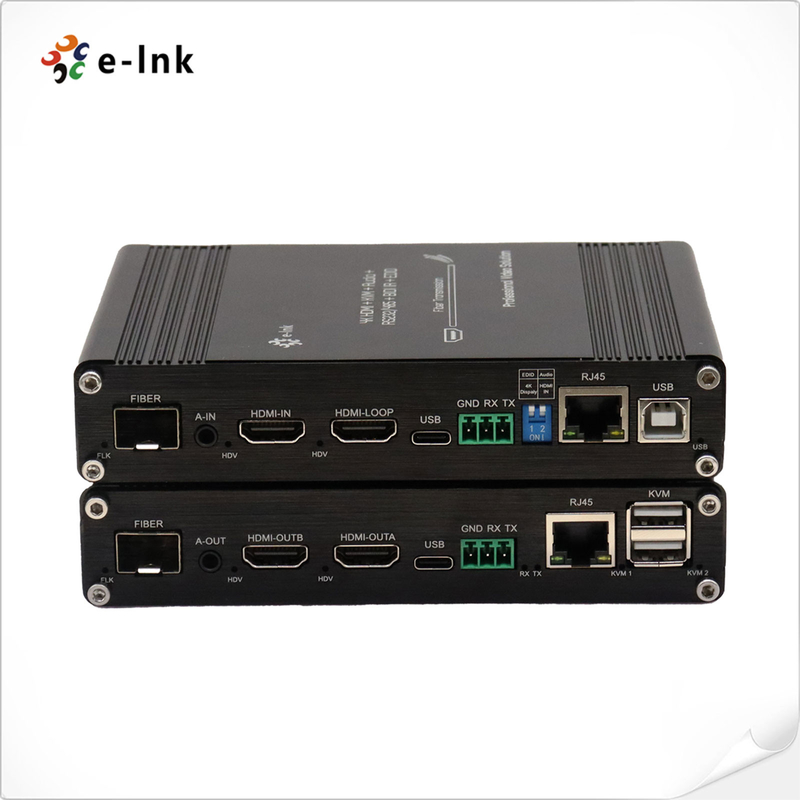

Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485 1

Order Information

Model	Description
LNK-KVM-HDMI-1D1BA1GO	1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
LNK-HDMI-1D1BA	1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM
