4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

Name: 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485
Brand: E-link China Technology Co.,LTD
SKU: NK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: NK-4KH-1D1U1E1A1R

Payment & Shipping Terms

Minimum Order Quantity: 1pair

Price: negotiation

Packaging Details: HDMI Fiber Extender Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Key Word:	HDMI Fiber Extender	Power Supply:	DC 12V/1A
Temperature:	-25℃ ~ +55℃	Transmission Distance:	Standard 20km
Dimension (LxWxH):	14811528mm	The Warranty:	1-year Warranty

Key Word:	HDMI Fiber Extender
Power Supply:	DC 12V/1A
Temperature:	-25℃ ~ +55℃
Transmission Distance:	Standard 20km
Dimension (LxWxH):	14811528mm
The Warranty:	1-year Warranty

Description

4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

HDMI Fiber Extender Advantages

► Transmits HDMI video signal up to 20km over one fiber optic cable;

► Support HDMI video resolution up to 4096*2160P@60Hz;

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chroma sampling.

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.

► Support HDMI video loop out;

► Support KVM;

Technical Indexes

Supported Standards	HDMI	1.3,1.4,2.0
	DVI	1.0
Audio	Interface	3.5mm Audio Interface
	Signal type	Operate via DIP switch, Up for External Audio Down for HDMI
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS23 bidirectional default, RS485 reverse optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.

Overview

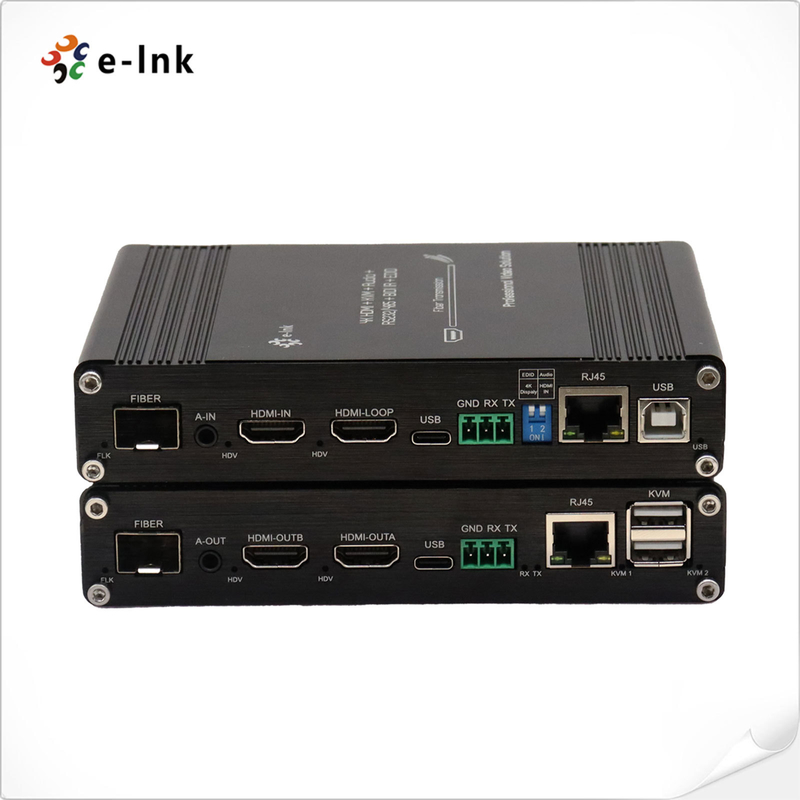

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function

Ordering Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function, SMF, 20KM, Including TX and RX, Used in pairs
