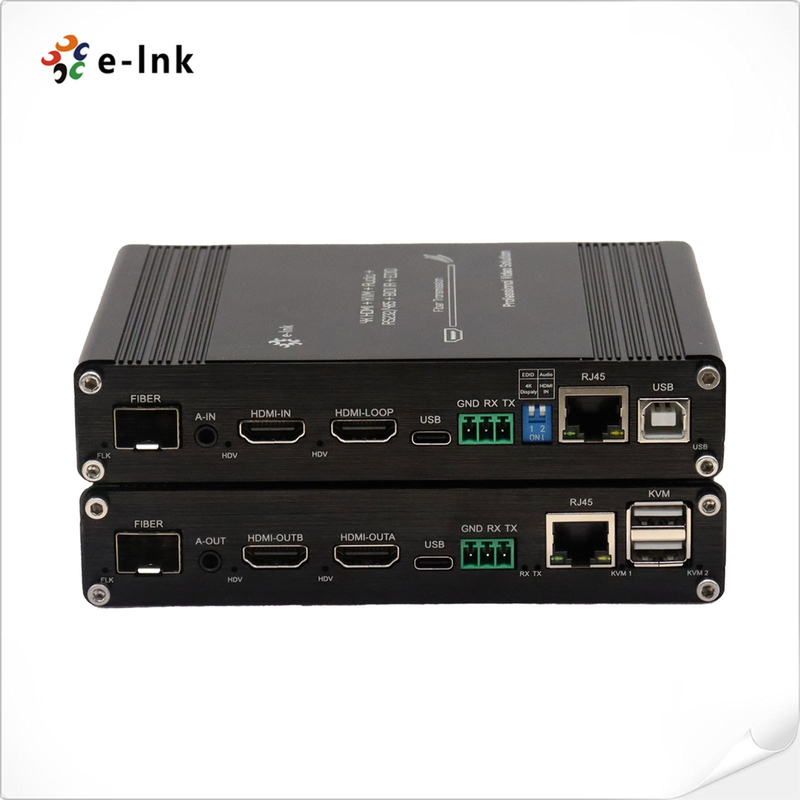

Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

Name: Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485
Brand: E-link China Technology Co.,LTD
SKU: LNK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Model Number: LNK-4KH-1D1U1E1A1R

Payment & Shipping Terms

Minimum Order Quantity: 1pairs

Price: negotiate

Packaging Details: HDMI Fiber Extender standard export package

Delivery Time: 5-8 working day

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000pairs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Supply:	DC 12V/1A	Temperature:	Operating: -25℃ ~ +55℃
Humidity:	20% ~ 90%	Weight:	1kg
Dimension (LxWxH):	14811528mm	The Warranty:	1-year Warranty

Power Supply:	DC 12V/1A
Temperature:	Operating: -25℃ ~ +55℃
Humidity:	20% ~ 90%
Weight:	1kg
Dimension (LxWxH):	14811528mm
The Warranty:	1-year Warranty

Description

Multifunctional 4K 60Hz HDMI KVM Fiber Extender with RS232/RS485

Advantages

► Transmits HDMI video signal up to 20km over one fiber optic cable;

► Support HDMI video resolution up to 4096*2160P@60Hz;

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chroma sampling.

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.

► Support HDMI video loop out;

► Support KVM;

► Support 10/100M Ethernet;

► Support IR control;

► Support EDID;

► Support Dip Switch;

► Simple to install, plug and play

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances

over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232

or RS485, 10/100M Ethernet, IR, EDID function. The extender can use for a wide range of applications

requiring long distance transmission of high resolution with high quality by its good stability and powerful

security.


Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x 1R 1 x RJ45(10M/100M, TCP/ IP protocol) 1 x USB
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 ×IR 1 x RJ45(10M/100M, TCP/ IP protocol) 2 x KVM
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
	DVI	1.0
Audio	Interface	3.5mm Audio Interface
	Signal type	Operate via DIP switch, Up for External Audio Down for HDMI
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS23 bidirectional default, RS485 reverse optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8
Ethernet	Interface	RJ45
	Data Rate	10/100Mbps
Fiber	Interface	SFP/LC connector
	Fiber type	Single-mode single fiber
	Wavelength	1270/1330nm
	Transmission distance	20km
Other	Power supply	DC 12V/1A
	Power dissipation	MAX 10W
	Temperature	Operating: -25℃ ~ +55℃ Storage: -40℃ ~ +85℃
	Humidity	20% ~ 90%
	Weight	1kg
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
	Work Time	7x24 Hours

Ordering Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M Ethernet, IR, EDID function, SMF, 20KM, Including TX and RX, Used in pairs
