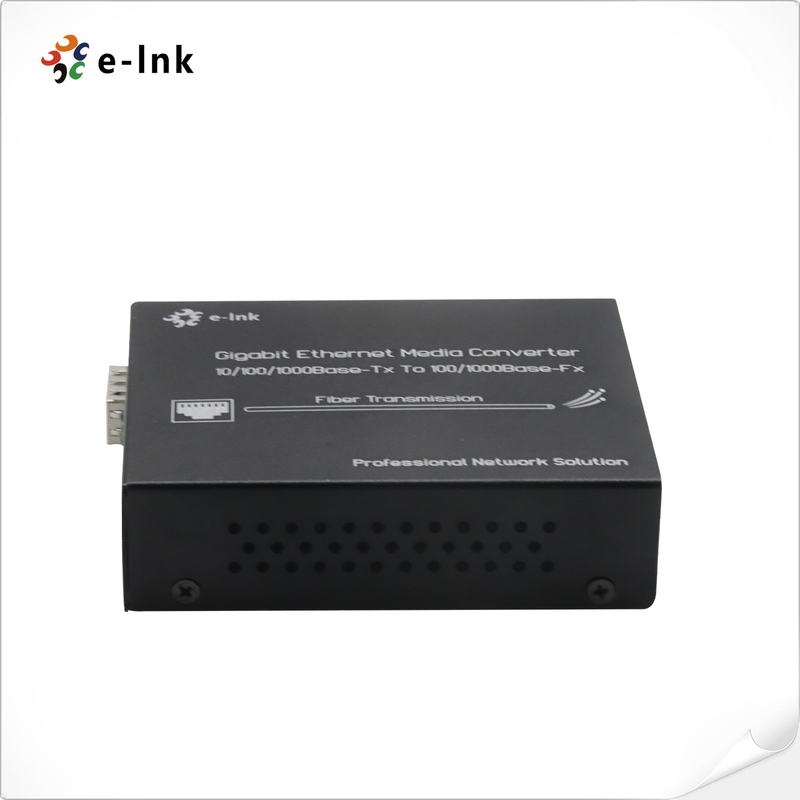

10/100/1000Mbps Gigabit Ethernet Media Converter with SFP

10/100/1000Mbps Gigabit Ethernet Media Converter

Fiber Media Converter  Advantages:

• Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
• Supporting full-duplex and half-duplex and its auto-sensed
• Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
• Supporting the transmission of extra-long VLAN packets
• Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
• Options in single mode dual fiber, multi-mode dual fiber, and single mode in
  single fibe

Overview

LNK-3011WSFP is an Ethernet media converter that converts media transmission
between UTP Copper cablings and fiber SFP (Small Form-Factor Pluggable)
Transceivers. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and
IEEE802.3ab standards. Presently it supports two types of media network
connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX,
inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs
with optical signals of 1000Base-SX/LX. It extends the transmission distance of
network from 100m via copper cable to 120 km via fiber optical cables.

Technical Indexs

Application

1. Application Fields

•  For intranet prepared for expansion from 10M to 100M/1000M
•  For integrated data network for multimedia such as image, voice and etc.
•  For point-to-point computer data transmission
•  For computer data transmission network in a wide range of business application
•  For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
•  In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

2. Application Industries
Intelligent transport monitoring system, safety and security monitoring system, campus network,
industrial monitoring (electric power, chemical industry, steel, oil, railway and water
conservancy etc.); CCTV monitoring system;
