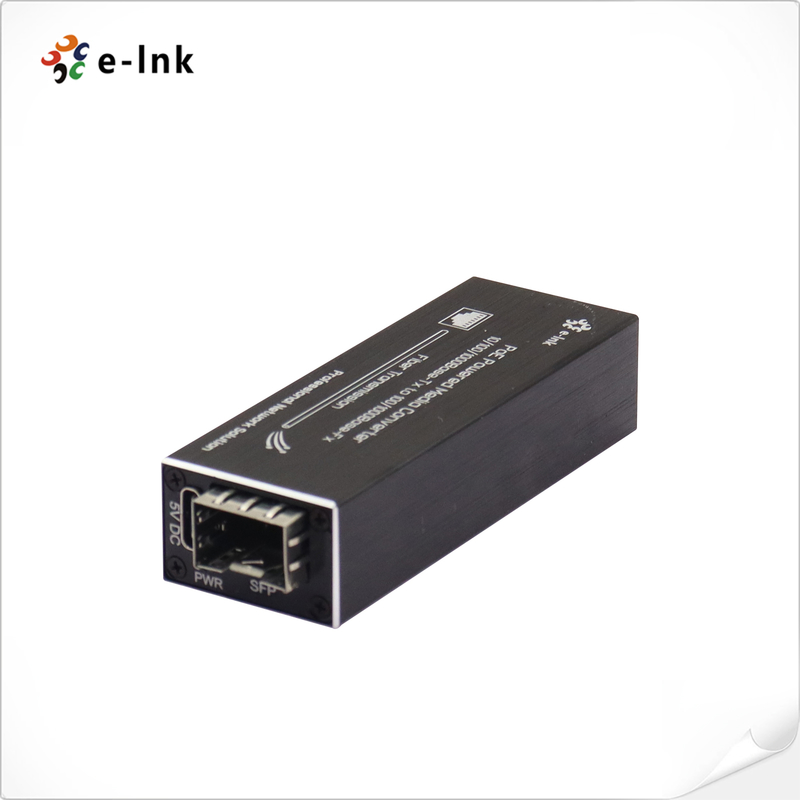

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Name: Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-M3011PD-SFP
Price: 13.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, ROHS, FCC

Model Number: LNK-M3011PD-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: US$12-US$15

Packaging Details: Fiber Media Converter Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Fiber Port:	SFP - 100/1000M Adaptive	Transmission Distance:	Fiber Cable: Depends On SFP Module Category-5 Twisted Pairs: 100m
Port:	One RJ45 Port: For Connecting With STP/UTP Cat5/6 Twisted Pairs One Optical Port: SFP	Conversion Means:	Media Conversion
Maintaining Temperature:	-40~70ºC	Dimensions (W X D X H):	78 X 27 X 18 Mm

Fiber Port:	SFP - 100/1000M Adaptive
Transmission Distance:	Fiber Cable: Depends On SFP Module Category-5 Twisted Pairs: 100m
Port:	One RJ45 Port: For Connecting With STP/UTP Cat5/6 Twisted Pairs One Optical Port: SFP
Conversion Means:	Media Conversion
Maintaining Temperature:	-40~70ºC
Dimensions (W X D X H):	78 X 27 X 18 Mm

Description

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Model : LNK-M3011PD-SFP

Overview

LNK-M3011PD-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching

technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab

standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T,

and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with

optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper

cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual

fiber and single mode single fiber.

Features

► Support 9k jumbo frame

► Including a Power Supply

► 10/100 /1000Base-T to 100/1000Base-X SFP

► Ultra compact and weigh less than 2 ounces

► Smallest media converters available; tuck the unobtrusively behind a PC

► USB-powered for portability, or use 5~15VDC wide range power input

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V (Type-C)
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g
Dimensions (W x D x H)	78 x 27 x 18 mm

Application

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter 0
