4K HDMI 2.0 KVM USB over Fiber Optic Extender

Name: 4K HDMI 2.0 KVM USB over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-HF201KM-M
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-HF201KM-M

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 500pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

The Warranty:	1 Year Free Warranty	Key Word:	HDMI Fiber Extender
Support:	OEM/ODM	Cable:	Single Core
Maximum Data Rate:	18Gbps

The Warranty:	1 Year Free Warranty
Key Word:	HDMI Fiber Extender
Support:	OEM/ODM
Cable:	Single Core
Maximum Data Rate:	18Gbps

Description

4K HDMI 2.0 KVM USB over Fiber Optic Extender

HDMI Fiber Extender Advantage

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Simple to install, plug and play

Overview

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse).

It consists of two modules that are interconnected by means of single-mode or

multimode fiber optic cable. It allows working at a maximum resolution of 4K

HDMI video. The maximum cable distance can be up to 10 km via Single Mode

Fiber or 300 meters via OM3 Multimode Fiber.

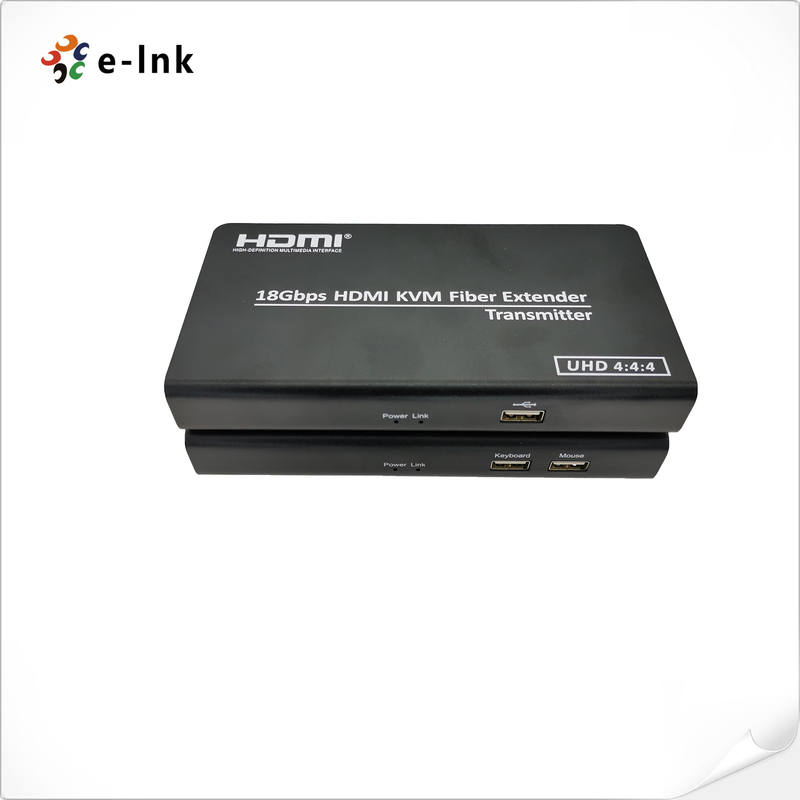

HDMI Fiber Extender Picture

4K HDMI 2.0 KVM USB over Fiber Optic Extender 0

Technical Indexes

K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode or Multimode
	Wavelength	Single-mode 1310nm, Multimode 850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM3 Multimode fiber: 300M Single mode fiber: 10KM
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 5W
	Temperature	Operating: -10℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	163 x 86 x 24(mm)
	Gross weight	1.471KG
	The warranty	1 year free warranty

Application

4K HDMI 2.0 KVM USB over Fiber Optic Extender 1

Ordering Information

Model	Description
LNK-HF201KM-M	4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters
LNK-HF201KM-10	4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km
