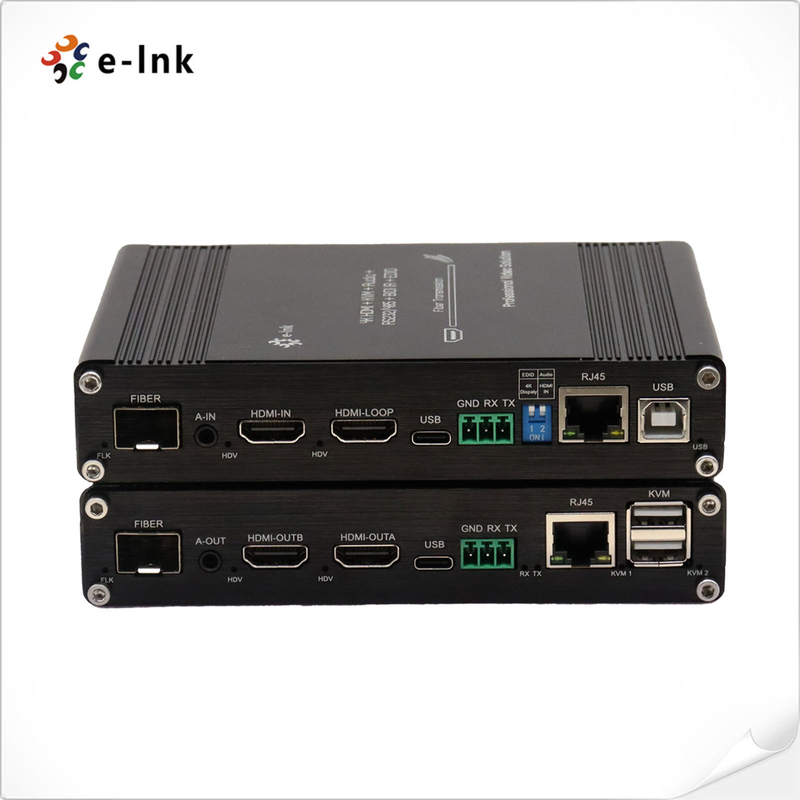

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Name: Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-4KH-1D1U1E1A1R

Document: E-link LNK-4KH-1D1U1E1A1R 4....1.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Transmitter Interfaces:	1 X HDMI 2.0 Input (4K@60Hz) 1 X HDMI 2.0 Loop-out (4K@60Hz) 1 X Audio Input 1 X SFP 1 X RS232/RS485 2 X IR 1 X RJ45（10/100M, TCP/ IP） 1 X USB-B	Power Supply:	DC 12V/1A
Operating Temperature:	-25℃ ~ +55℃	Dimension (LxWxH):	14811528mm
The Warranty:	The Warranty 1-year Warranty	Transmission Distance:	MMF 330M Or SMF 20/40/60/80KM

Transmitter Interfaces:	1 X HDMI 2.0 Input (4K@60Hz) 1 X HDMI 2.0 Loop-out (4K@60Hz) 1 X Audio Input 1 X SFP 1 X RS232/RS485 2 X IR 1 X RJ45（10/100M, TCP/ IP） 1 X USB-B
Power Supply:	DC 12V/1A
Operating Temperature:	-25℃ ~ +55℃
Dimension (LxWxH):	14811528mm
The Warranty:	The Warranty 1-year Warranty
Transmission Distance:	MMF 330M Or SMF 20/40/60/80KM

Description

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Advantages

► Support HDMI video resolution up to 4096*2160P@60Hz

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A
Supported Standards	HDMI	1.3,1.4,2.0
Supported Standards	DVI	1.0
Audio	Interface	3.5mm Audio Interface
Audio	Signal type	Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
KVM	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS232 default, RS485 optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8
Fiber	Interface	SFP Modules Included, LC or SC
	Fiber type	MMF or SMF
	Transmission distance	MMF 330M or SMF 20/40/60/80KM

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Application
Multi-functional 4K 60Hz HDMI KVM Fiber Extender 1
Ordering Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
