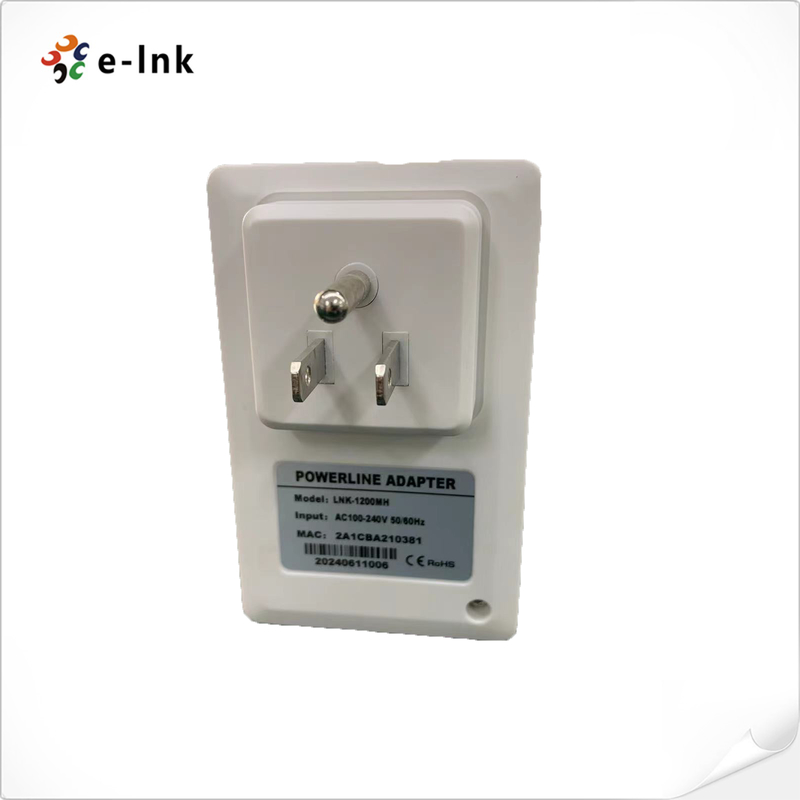

1200M Powerline Ethernet Adapter

Name: 1200M Powerline Ethernet Adapter
Brand: E-link China Technology Co.,LTD
SKU: LNK-1200MH
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-1200MH

Document: E-link LNK-1200MH 1200M Pow....1.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Modulations:	OFDM,FEC,Flexible Frequency Configuration	Data Rate:	Up To 1.2Gbps
Management:	HTTP Web-based;firmware Upgrade Via TFTP TR-069 Supported(Optional)	Power:	110-240VAC 50Hz/60Hz Auto Power Saving Mode Max 0.5W(in Standby Mode)
Operating Temperature:	0℃~40℃

Modulations:	OFDM,FEC,Flexible Frequency Configuration
Data Rate:	Up To 1.2Gbps
Management:	HTTP Web-based;firmware Upgrade Via TFTP TR-069 Supported(Optional)
Power:	110-240VAC 50Hz/60Hz Auto Power Saving Mode Max 0.5W(in Standby Mode)
Operating Temperature:	0℃~40℃

Description

1200M Powerline Ethernet Adapter

Advantages

· Adopt HomePlug AV2, transmission rate(PHY) up to 1200Mbps.

· Take MIMO technology, the bandwidth is much wider and the data transmission much more stable.

· No wiring and setting.

· Adopt QOS technology, guarantee the transmission stability of streaming media.

· Hardware or software encryption(optional)

· Sub-compatible with IEEE1901 and HomePlug AV technology.

· Multiple LED display light colors can estimate the transmission quality.

Technical Indexes

Interface	1* 10/100/1000Mbps self-adaption RJ-45 port.
Ethernet	IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support
Modulations	OFDM,FEC,Flexible frequency configuration
Management	HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional)
Security	AES 128 bits encryption ensures total data security
Networking Protocols	802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping
Power	110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode)
Environment Connection	Operating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing)
Certifications	FCC,CE calssB, WEEE,RoHS, ITU-T G.hn Standard
Size	1457043(mm)
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -10℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing

Overview

The E-LINK LNK-1200MH which adopts HomePlug AV2 standard supplies the maximum transmission speed at 1200Mbps.You can erect the network through the existing power line of family, just plug it into the power socket wherever you can find, the strong anti-interference ability makes it avoid being interfered by the other electric devices, it also compatible with the IEEE1901 devices and the adoption of MIMO technology upgrades the power line communication speed and quality, it enhances the multimedia streaming quality through prioritizing flux, streaming HD video, high speed network linking, VOIP flux and upgraded QOS functions.

Application
1200M Powerline Ethernet Adapter 0
