1080P DVI-D Fiber Optic Extender

Name: 1080P DVI-D Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-DVI-106
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DVI-106

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 500pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

The Warranty:	1 Year Free Warranty	Casing:	Aluminum Case
Fiber:	Single Fiber	Transmission Distance:	Up To 300 Meters
Transmission Bandwidth:	10.2G Bps

The Warranty:	1 Year Free Warranty
Casing:	Aluminum Case
Fiber:	Single Fiber
Transmission Distance:	Up To 300 Meters
Transmission Bandwidth:	10.2G Bps

Description

1080P DVI-D Fiber Optic Extender

DVI Fiber Extender Advantage

► Transmits DVI video signals up to 2km-10km over one fiber optic cable;

► Support video resolution up to 1920*1200@60Hz;

► Support copy EDID, can match many kind display device;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

Overview

The LNK-DVI-106 Fiber optic extender provides extension of DVI signals long distances

over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function.

The extender can use for a wide range of applications requiring long distance transmission

of high resolution with high quality by its good stability and powerful security.

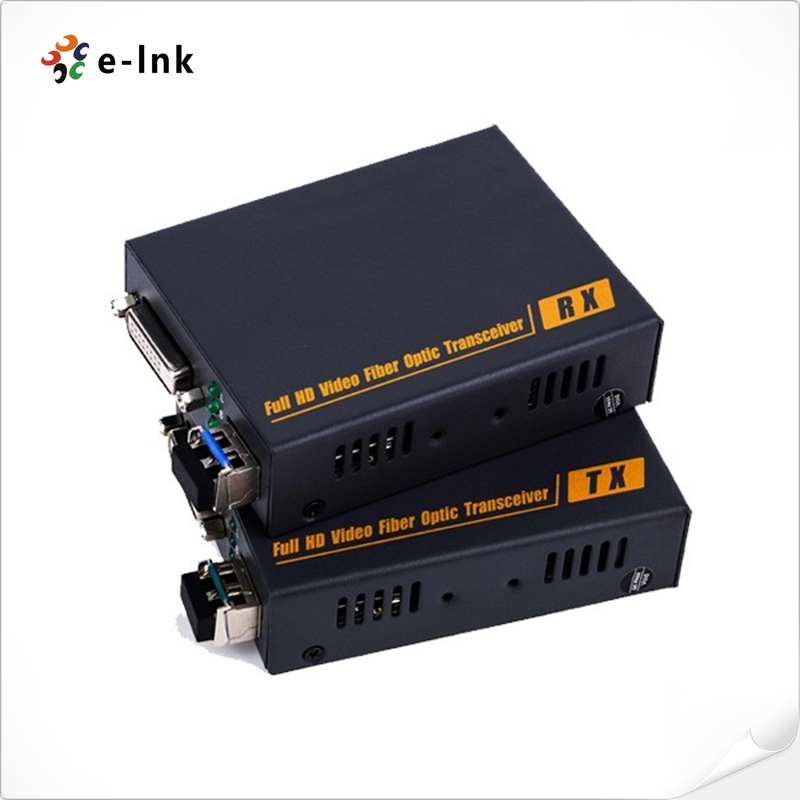

DVI Fiber Extender Picture

1080P DVI-D Fiber Optic Extender 0

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm
	The warranty	1 year free warranty

Application

1080P DVI-D Fiber Optic Extender 1

Ordering Information

Model	Description
LNK-DVI-106	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-S106-10	DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs
