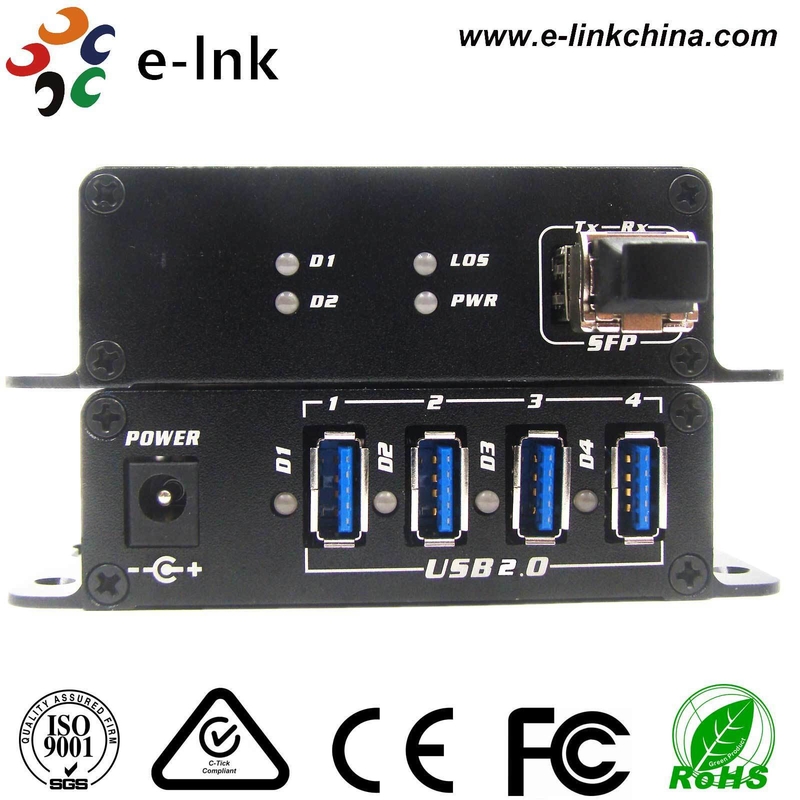

4 Port USB 2.0 Fiber Extender

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-U4F1-2.0

Document: E-link USB2.0 to Fiber Exte....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:
Dimensions (LxWxH)::
LOCAL EXTENDER : 104*114*28, REMOTE EXTENDER: 104*114*28
Operating Temperature::
32° To +122° F. (0° To +50° C)
Limited Warranty:
2 Year Warranty
Net Weight:
LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g
Dimensions (LxWxH)::
LOCAL EXTENDER : 104*114*28, REMOTE EXTENDER: 104*114*28
Operating Temperature::
32° To +122° F. (0° To +50° C)
Limited Warranty:
2 Year Warranty
Net Weight:
LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g
Description
4 Port USB 2.0 Fiber Extender

4 Port USB 2.0 Fiber Extender

Product Advantages

► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices

► Operates with USB 1.1 and USB 2.0 hosts

► Supports all USB devices up to 480 Mbps

► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)

► Integrated hub provides four remote USB 2.0 ports.

► Number of devices can be increased using additional USB hubs

► Transparent USB extension

► Low RFI / EMI profile for sensitive applications

► Surface-mountable

Technical Indexes

Performance

Local Unit


Upstream Port

USB2.0 Type A Male

Downstream Port

USB2.0 SFP*1

Remote Unit

Upstream Port

USB2.0 SFP*1

Downstream Port

4-Port

USB Power Supply

1*500mA

Operation Mode

Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer

Connections

USB2.0 Input

USB2.0 Type-A Female

USB2.0 Output

USB2.0 Type-A Female

Optical

1x SFP port

Cable

Fiber Cable Type

Multi-Mode

Max. Length

≤ 200 meters

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

(Unit:mm)

LOCAL EXTENDER : 104*114*28

REMOTE  EXTENDER: 104*114*28

Net Weight

LNK-U4F1-2.0-L:  200g            LNK-U4F1-2.0-R:  350g

Environmental

Operating Temperature

32° to +122° F. (0° to +50° C)

Storage Temperature

-40° to +185° F. (-40° to +85°  C)

Operating Humidity

5% to 80% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

Power  Requirements

External AC Power Adapter

Local Unit:Power adapter at host is not required



Remote Unit:

Input: 100-240VAC / 50-60Hz  0.2A

Output: 5VDC, 2.0A    5/2.5mm jack

Power Consumption

LNK-U4F1-2.0-T:  2watts            LNK-U4F1-2.0-R:  3.5 watts

Warranty

Limited Warranty

2 year warranty

Overview

    LNK-U4F1-2.0 Series provides true USB 2.0 extension at up to 480 Mbps over 200m/600ft of multi-mode fiber optics, without the need of additional software drivers.

A true plug-and-play solution, the LNK-U4F1-2.0 Series is compatible with all leading operating systems, and supports all USB 1.1 and 2.0 device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

Application

4 Port USB 2.0 Fiber Extender 0

4 Port USB 2.0 Fiber Extender 1Ordering Information


Model

Description

LNK-U4F1-2.0

USB2.0 to Fiber Extender, Single 5V 2A External power supply
