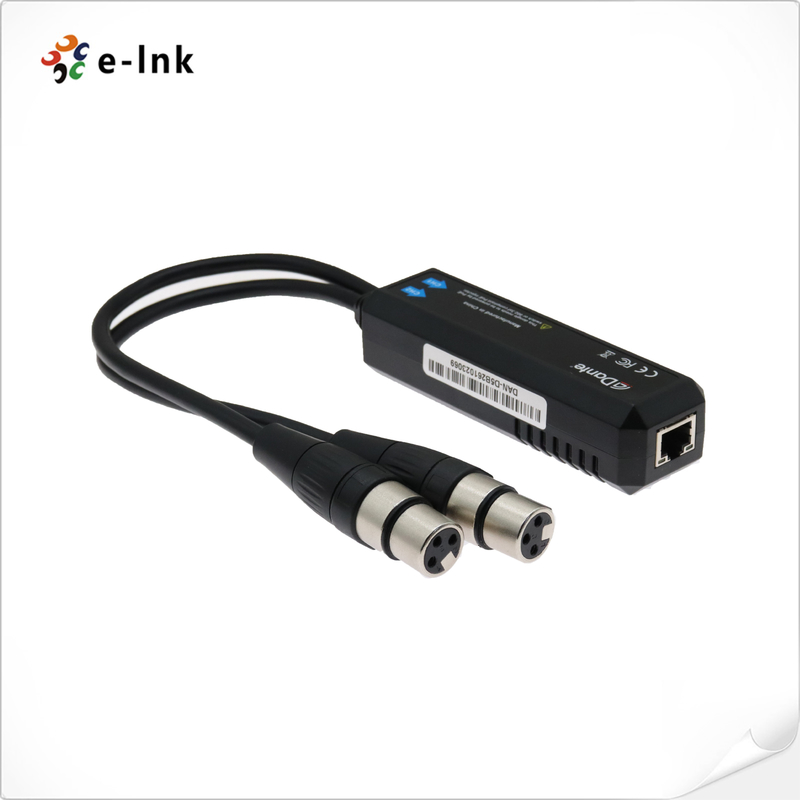

Dante 2Ch Analog Input Dongle Converter
Dante 2Ch Analog Input Dongle Converter
Dante 2Ch Analog Input Dongle Converter
Dante 2Ch Analog Input Dongle Converter
Dante 2Ch Analog Input Dongle Converter

Dante 2Ch Analog Input Dongle Converter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DAN-D5

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 100pcs/mouth

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Function Control:
Automatic
Product Type:
Fiber Optic Extender
Hdmi Version:
HDMI 2.0
Operating Humidity:
10% - 80%RH (no Condensation)
Ethernet Interface:
RJ45（568B）
Transmission Distance:
Up To 20km
Operating Temperature:
0°C To 50°C
Function Control:
Automatic
Product Type:
Fiber Optic Extender
Hdmi Version:
HDMI 2.0
Operating Humidity:
10% - 80%RH (no Condensation)
Ethernet Interface:
RJ45（568B）
Transmission Distance:
Up To 20km
Operating Temperature:
0°C To 50°C
Description
Dante 2Ch Analog Input Dongle Converter

Dante 2Ch Analog Input Dongle Converter

 Dante 2Ch Analog Input Dongle Converter Advantage

► Plug and play.

► 24-bit audio support

► 2x0 Audio Channels

► Support power via PoE Injector (IEEE802.3af)

Overview

       The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects

to your Dante network and supports Analog 2X0 channels audio, allowing

receive analog audio signal, convert the analog signal to digital signal

and transmit through Dante network.

DVI Fiber Extender Picture

Dante 2Ch Analog Input Dongle Converter 0

Technical Indexes

Audio

Max signal level

+24 dBu

Frequency Response

20Hz to 20kHz(-/+0.5dB)

Impedance

20k Ohm balanced, 10k Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4dBu

Dante

Sample Rate

44.1kHz, 48kHz, 96kHz

Bit Depth

24

Dante Device latency

1,2 or 5ms (configurable using Dante Controller)

Type

Analog 2x0

General

Operation Temperature

-5 to +55℃ (+23° to +131°F)

Storage Temperature

-25 to +70℃ (-13° to +158°F)

Power

802.3af PoE

Power Consumption

3.15W(Max)

Dimension (W*H*D)

114 x 30 x 28 mm

Cable length

30cm

Net Weight

145g

Ordering Information

Model

Description

LNK-DAN-D5

Dante 2Ch Analog Input Dongle Converter
