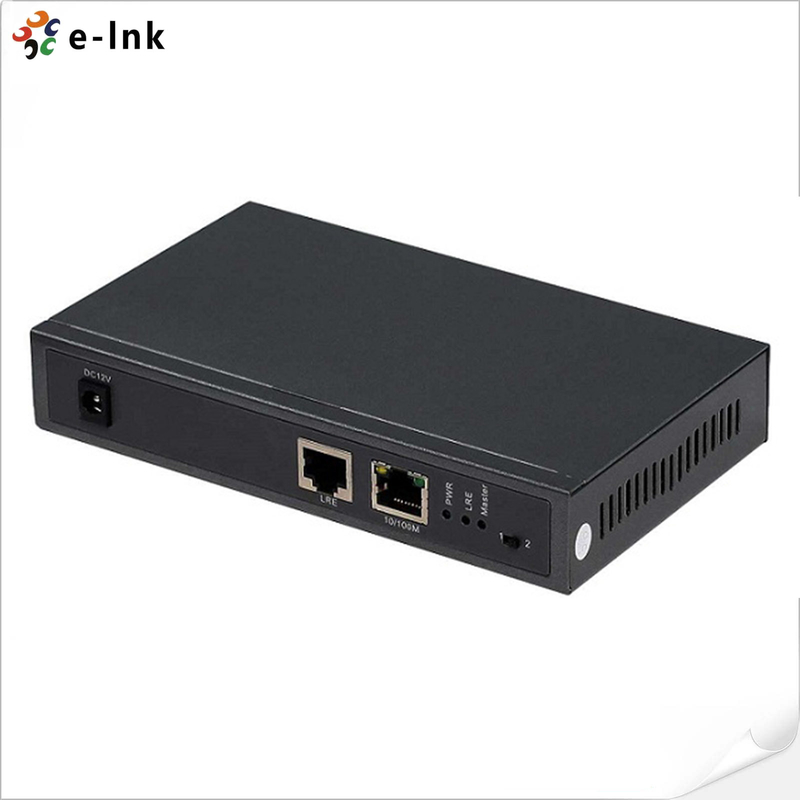

10/100Mbps Ethernet Booster / Extender

Name: 10/100Mbps Ethernet Booster / Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-S110
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-S110

Document: E-link LNK-S110 FE Ethernet....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Input Power:	AC100-240V/50-60HZ (Internal Power)	Distance:	Depend On SFP+ Modules Used, 20km Recommended.
Operating Temperature::	0℃～+50℃	Weight:	Net Weight: 0.32 Kg, Gross Weight:0.64kg

Input Power:	AC100-240V/50-60HZ (Internal Power)
Distance:	Depend On SFP+ Modules Used, 20km Recommended.
Operating Temperature::	0℃～+50℃
Weight:	Net Weight: 0.32 Kg, Gross Weight:0.64kg

Description

10/100Mbps Ethernet Booster / Extender

Product Advantages

► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

► Patented LRE (Long- Reach Ethernet) Ethernet technology

► UPnP booster with mini size

► Unique thunder-proof chip with thunder strike effectively

► Build-in low radiation, surge-proof power supply, extreme low power consumption and hot radiation

► Wide range low voltage AC power supply

Technical Indexes

Parameter	Specification
Standard	IEEE802.3 (10BASE-T) IEEE802.3 Usf ANSI X3T12 TP-PMD ANSI X3.166FDDI-PMD
10BASE-T	STP or UTP Category 5/5e/6 cable (Max. 300m)
100BASE-T	10Base-T: UTP category 3, 4, 5 cable (maximum100m), EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
Humidity	5%~90% non-condensing
RJ-45 Port	Auto-MDI/MDIX
Operating Temperature	0℃～+50℃
Storage Temperature	-40℃～+70℃
Input Voltage	AC100-240V/50-60HZ (Internal power)
Power Consumption	<2.5W
Dimension	145mm(W) ×86mm(D) ×28mm(H)
Weight	Net Weight: 0.32 kg, Gross Weight:0.64kg

Overview

E-link Network booster LNK-S110 needs to be used in pairs, 1200m extension distance for 10M Ethernet, and 305m extension distance for 100M Ethernet.

Application

10/100Mbps Ethernet Booster / Extender 0

Ordering Information

Model	Description
LNK-S110	1 uplink port + 1 downlink port, used in pairs, 1200m extension distance by 10M Ethernet and 250~300m distance by 100M Ethernet, Used with UTP CAT5, UTP CAT5E or 4-wire telephone cable, Internal power supply, resistance must be less than 30Ω
