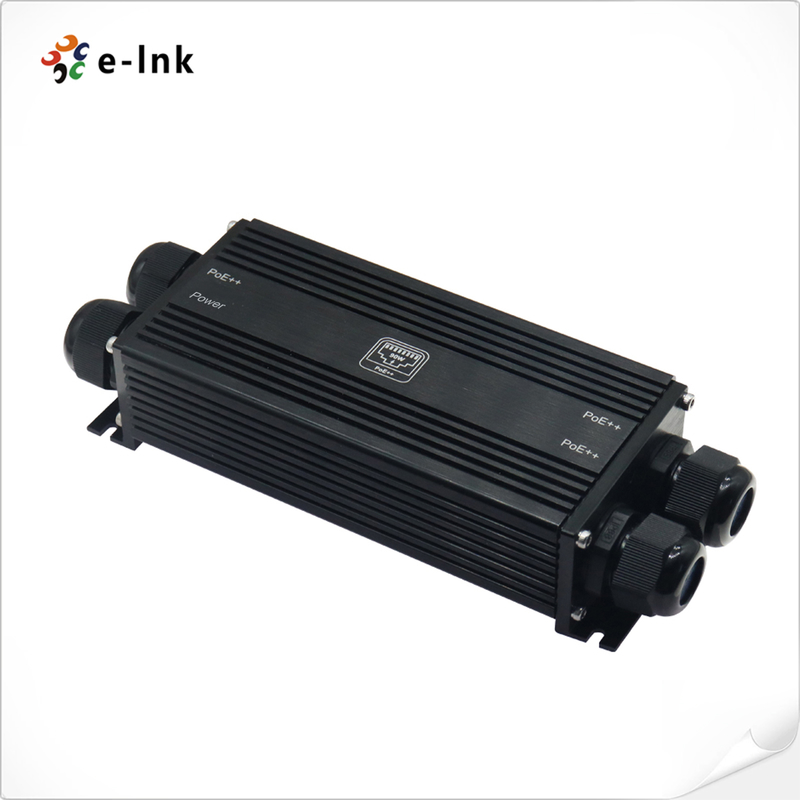

IP67 Waterproof Industrial Gigabit PoE Switch IEEE802.3af/at/bt

Name: IP67 Waterproof Industrial Gigabit PoE Switch IEEE802.3af/at/bt
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP-IPS103
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: RoHS,CE,FCC

Model Number: LNK-WP-IPS103

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: To be negotiated

Packaging Details: Industrial PoE Switch Standard Export Package

Delivery Time: 5-15working days

Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability: 1000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Installation:	Wall-mount	Input Voltage:	48 ~57V DC
Weight:	0.6 Kg	Power Port:	DC, M25 X 1.5 Cable Glands
Power Supply Type:	Mid-span And End-span	PoE Output Power:	Single Port Maximum 90W, Total 270W

Installation:	Wall-mount
Input Voltage:	48 ~57V DC
Weight:	0.6 Kg
Power Port:	DC, M25 X 1.5 Cable Glands
Power Supply Type:	Mid-span And End-span
PoE Output Power:	Single Port Maximum 90W, Total 270W

Description

IP67 Waterproof Industrial Gigabit PoE Switch IEEE802.3af/at/bt

IP67 Waterproof Industrial Gigabit PoE Switch IEEE802.3af/at/bt

Overview

LNK-WP-IPS103 is an industrial-grade IP67-rated Gigabit PoE Switch that utilizes Power over Ethernet

technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission

distance while providing standard PoE power supply of 48V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this

switch operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh

environments. It is ideally suited for security surveillance and network engineering applications.

Features

► IP67-rated aluminum case

► 3 x 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 48 ~ 57V DC Power Input

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kb jumbo frame support in 1000Mbps full-duplex mode

► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment

Specification

Ethernet Port
PoE Port	3 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
PoE Output Power	Single Port Maximum 90W, Total 270W
Power Input
Input voltage	48 ~57V DC
Power port	DC, M25 x 1.5 Cable Glands
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Order Information

Model	Description
LNK-WP-IPS103	IP67 Waterproof Industrial Gigabit PoE Switch
Mounting Options	Wall Mount Bracket is included.
