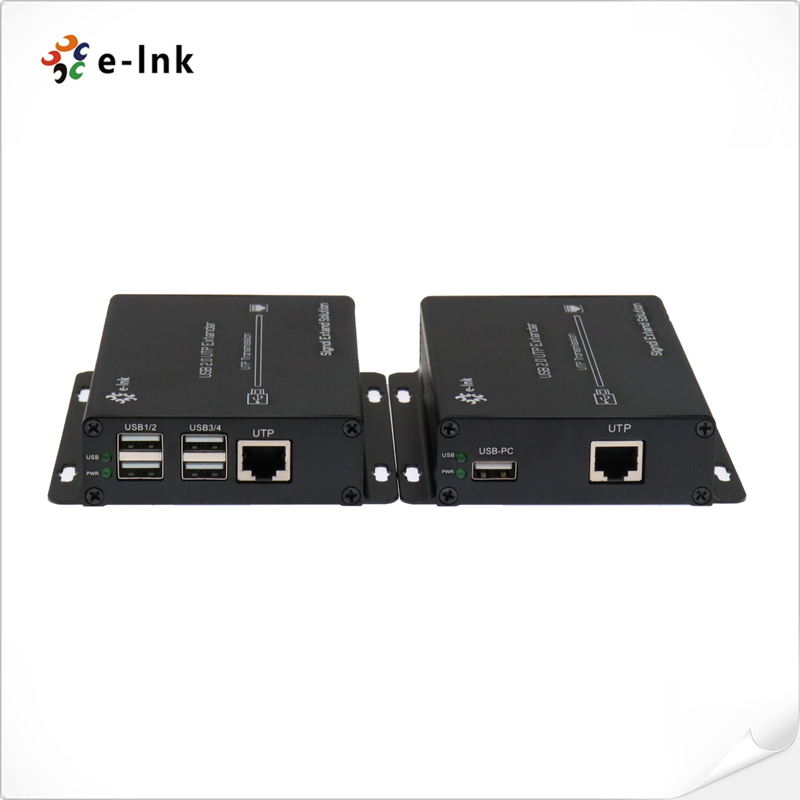

4-Port USB 2.0 over UTP Extender

Name: 4-Port USB 2.0 over UTP Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-U4T1-2.0
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-U4T1-2.0

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	4-Port USB 2.0 Over UTP Extender	Voltage:	5- 12V DC
Operating Temperature:	-20℃~70℃	Power Consumption:	<5W
Size (L× W ×H):	117mm X104mm X28mm

Keywords:	4-Port USB 2.0 Over UTP Extender
Voltage:	5- 12V DC
Operating Temperature:	-20℃~70℃
Power Consumption:	<5W
Size (L× W ×H):	117mm X104mm X28mm

Description

4-Port USB 2.0 over UTP Extender

4-Port USB 2.0 over UTP Extender

4-Port USB 2.0 over UTP Extender Advantages

► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

► Support USB-HUB expansion, support all kinds of USB devices;

► No Drivers Required, compatible with all operating systems;

► Support hot-swappable, plug and play;

► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.

4-Port USB 2.0 over UTP Extender Overview

This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

4-Port USB 2.0 over UTP Extender Technical Indexes

UTP	Connector	RJ45
UTP	Max. Distance	Cat5 cable: 100 meter, Cat6 cable: 170 meter
USB2.0	Input / Output	USB2.0 Type-A
Physical	Size (L× W ×H)	117mm x104mm x28mm
	Case	Aluminum
	Color	Black
	N.W .	0.75Kg
Power	Voltage	5- 12V DC
Power	Power consumption	<5W
Environment	Working temperature	-20℃~70℃
	Storage temperature	-40~85℃
	Humidity	0-95% (non-condensing)

4-Port USB 2.0 over UTP Extender Ordering Information

Part No	Description of product
LNK-U4T1-2.0	4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable

4-Port USB 2.0 over UTP Extender 0
