DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

Name: DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-DEC110 Series
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DEC110 Series

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Mode:	SMF	Insertion Loss:	<0.2dB
Network:	Wifi, 4g, 3G	Telephone Ports:	1 Telephone Port RJ11 Port
Polarity:	Type-B Cross	Directivity:	≥55dB
Pcb Dimensions:	12 Cm X 6.9 Cm

Mode:	SMF
Insertion Loss:	<0.2dB
Network:	Wifi, 4g, 3G
Telephone Ports:	1 Telephone Port RJ11 Port
Polarity:	Type-B Cross
Directivity:	≥55dB
Pcb Dimensions:	12 Cm X 6.9 Cm

Description

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Advantage

· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)

· Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6

· Input Voltage: DC18V~48V (POE: DC48V).

· Support Power over Coax & Power over Ethernet at same time.

· 2pc BNC design, support to connect Max. 7 channels branch line

Overview

The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet

Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing

coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance

is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same

time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to

100Mbps. It has excellent lightning protection and Anti-interference.

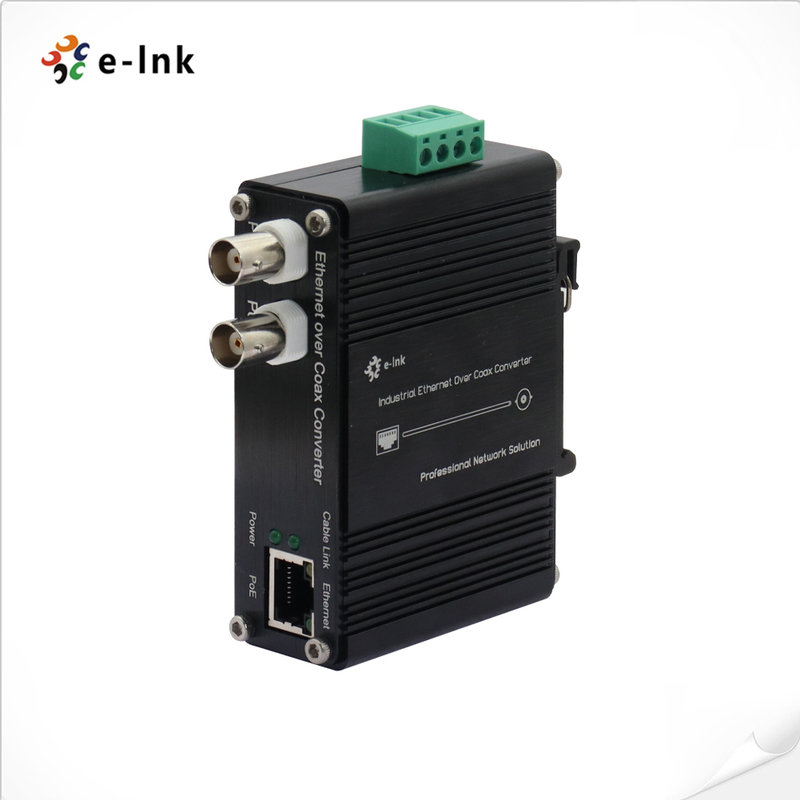

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Picture

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender 0

Application

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender 2

Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3af Power Over Ethernet
	IEEE802.3at Power Over Ethernet
Cabling	10Base-T: Cat 3,4,5, or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	1 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	1 BNC (female)
Distance	Up to 1200m (no PoE), 300m (with PoE)
Data Rate
Downlink (TX to RX)	90Mbps (Max.)
Uplink (RX to TX)	90Mbps (Max.)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Electrical and Mechanical
Input Power	DC18V~48V (PoE: DC48V)
Power Consumption	8W Max. (PoC not in use)
	60W Max. (Poc in use)

Ordering Information

Model	Description
LNK-DEC110-T/R	DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter
LNK-DEC110P-T/R	DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter
