Highlight:

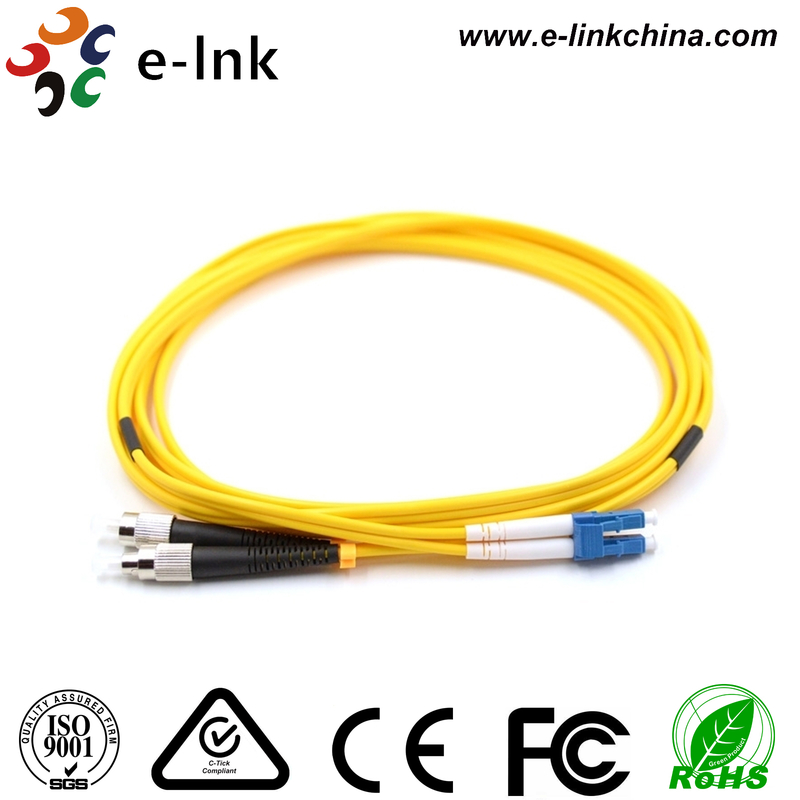

15m, LC to FC, Duplex, Singlemode Patch Cable
15m, LC to FC, Duplex, Singlemode Patch Cable
15m, LC to FC, Duplex, Singlemode Patch Cable Advantages
· Plug-in fasten structure and stable connection
· 100% Optically inspected and tested for insertion loss
· High quality ferrule
· Pull-Proof Jacket
· Immune to electrical interference
· Various cable diameters available: Φ0.9, Φ2.0, Φ3.0mm
· PC(SPC/UPC), APC polishing available
· Comply with ICE standards
· RoHS Compliant
15m, LC to FC, Duplex, Singlemode Patch Cable Overview
A cost-effective solution that provides high bandwidth and transmission rates over long distances. This high-quality single-mode fiber optic patch cable is specifically designed using SMF-28e fiber for ethernet applications. Each connection has great durability and is resistant to pulls, strains and impacts during installation.
Our cables are 100% optically inspected and tested for insertion loss before you receive them. A pull-proof jacket design surrounds the Single-mode, OS2, 9/125 fiber which is immune to electrical interference.
15m, LC to FC, Duplex, Singlemode Patch Cable Technical Indexes
|
Connector: LC-FC
|
Single-mode, OS2, 9/125
|
Type
|
|
|
|
Length
|
15 Meter (50ft)
|
Duplex
|
|
|
Insertion Loss(IL)
|
dB
|
≤0.3dB
|
IEC 61300-3-4
|
|
Return Loss(RL)
|
dB
|
≥40
|
≥45
|
≥50
|
≥60
|
≥30
|
IEC 61300-3-6
|
|
Endurance
|
dB
|
△IL≤0.2
|
IEC 61300-2-2, coupling and uncoupling 500cycles, clean every 25 cycles
|
|
Operating Temperature
|
℃
|
-20~+70
|
|
|
Storage Temperature
|
℃
|
-40~+80
|
|
|
Drop
|
dB
|
△IL≤0.2
|
IEC 61300-2-12, 1.5m, 5drops, no damage
|
|
Vibration
|
dB
|
△IL≤0.2
|
IEC 61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5hrs/axis
|
|
Flex
|
dB
|
△IL≤0.2
|
Telcordia GR326(4.4.3.2), 0.9kg, ±90°, 100cycles, for Φ2.0 or larger cable
|
15m, LC to FC, Duplex, Singlemode Patch Cable Ordering Information
|
Model
|
Description
|
|
LNK-PC-FC-LC-SM-D-15
|
Patch cord FC/UPC-LC/UPC Single Mode, Duplex, 3.0mm, Length = 15M
|
