SMB 3G/HD/SD-SDI Optical Micro-Extender

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-M3G-SMB1V-20

Document: E-link LNK-M3G-SMB1V SMB 3G....2.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:
Dimensions (LxWxH):
58 X 21 X 20 Mm
Operating Temperature:
-20℃~+70℃
Weight:
100g/pair
Powerv:
5VDC, 1A
Dimensions (LxWxH):
58 X 21 X 20 Mm
Operating Temperature:
-20℃~+70℃
Weight:
100g/pair
Powerv:
5VDC, 1A
Description
SMB 3G/HD/SD-SDI Optical Micro-Extender

SMB 3G/HD/SD-SDI Optical Micro-Extender

Product Advantages

 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

► Transmission distance up to 120km

► CWDM technology to allow up to 16(18) channels to transmit over one fiber

► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N

► Compliant with DVB-ASI(EN50083-9)

► Convenient instruction of LED status. Fiber link indicator, power

Technical Indexes

SDI Input

Video standard

SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)

Signal standard

SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

Resolution

10 Bit

Signal level

<380mVp-p

Impedance

75Ω

Connector

SMB

Optical Interface

SFP

Simplex LC, 3,125Gbps. 120km transmission distance

Standard SM wavelength

1310nm, 1550nm

CWDM wavelength

1270~1610nm, 20nm grid according ITU-T

Temperature range

0~70˚C

LED Indicator

FLT

Fiber link status (Transmitter)

FLR

Fiber link status (Receiver)

PWR

Power status

Environmental

Working Temperature

-20℃~+70

Storage Temperature

-40℃~+80

Working Humidity

0~95%

MTBF

≥100000 hours

Overview

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.

Application

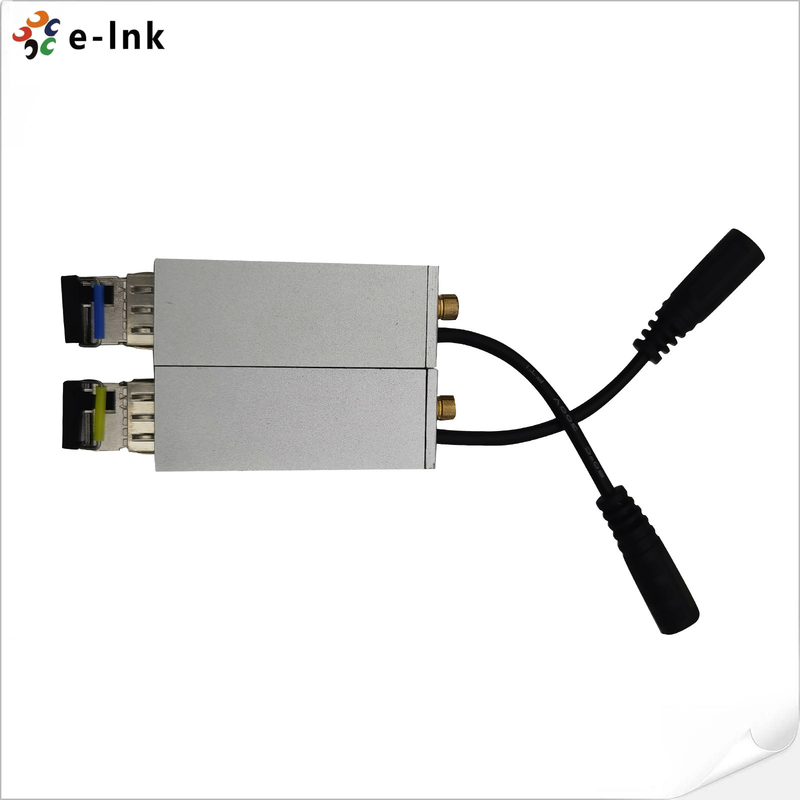

SMB 3G/HD/SD-SDI Optical Micro-Extender  0

Ordering Information


Model

Description

LNK-M3G-SMB1V-20

SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs
