4-Channel 3G-SDI Fiber Converter with RS485 & Tally

Name: 4-Channel 3G-SDI Fiber Converter with RS485 & Tally
Brand: E-link China Technology Co.,LTD
SKU: LNK-3GSDI-4V1DT
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-3GSDI-4V1DT

Document: E-link LNK-SDI-4V 4CH 3G-SD....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature:	-10℃～＋55℃	Power Input:	1A@12VDC
SDI Video Format Supports:	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

Operating Temperature:	-10℃～＋55℃
Power Input:	1A@12VDC
SDI Video Format Supports:	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

Description

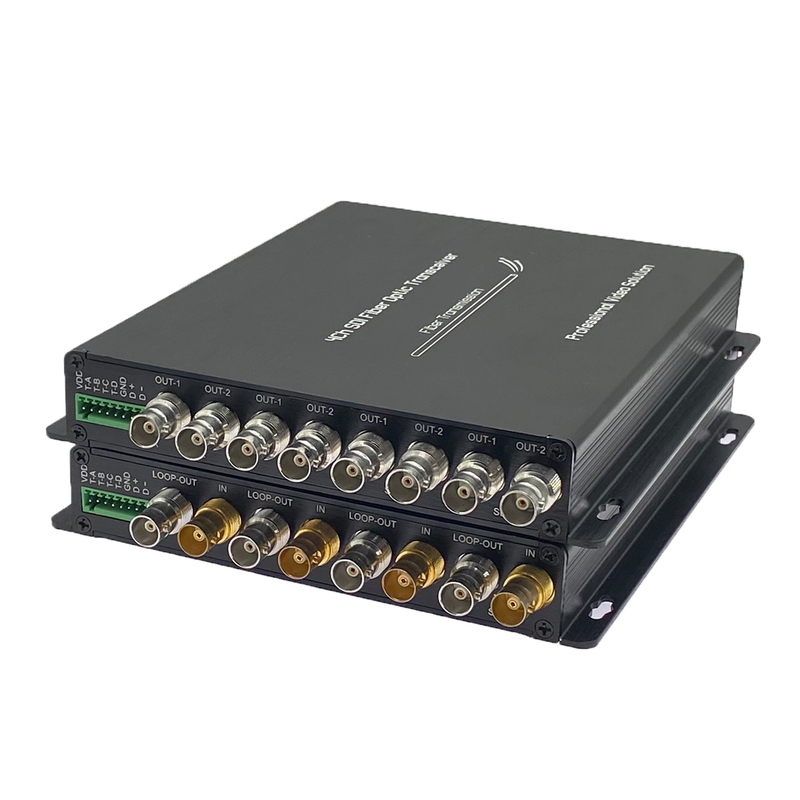

4-Channel 3G-SDI Fiber Converter with RS485 & Tally

Product Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Supports 4Ch Tally

► Full digital non-compression broadcast level transmission

Technical Indexes

SDI Input	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
	270Mbit/s - 1.48Gbit/s – 3Gbit/s
	Input number: 4
	Reflection loss: >15DB
	Equilibrium: 0-150m @3Gb/s
	Connector: BNC
Optics	Channel: 1
	Type: single-mode
	Transmission distance: 20km (Other distance Optional)
	Reflection loss: > 15dB
	Dithering: < 0.2UI
	Connector: FC/UPC (SC, LC, ST optional)
SDI Output	Output number:4
	Signal level: 800mV nominal
	Rise/fall time: 200ps indication
	Overshoot: < 10% amplitude
	Reflection loss: >15dB
	Dithering: < 0.2UI
	Connector: 75Ω BNC
Data	1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester
	Max. 57600bps for RS485
	Connector: Industrial standard screw terminal
	4Ch Tally: A, B , C, D
Power and environmental indication	Operating temperature: -10℃～＋55℃
	Power Input: 1A@12VDC
	EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
	Average time trouble-free: >100000 hours
SDI video format supports	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;
SDI video format supports

Overview

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

Application

4-Channel 3G-SDI Fiber Converter with RS485 & Tally 0

Orderinng Information

LNK-HDSDI-4V1D4T	4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-4V1D4T	4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
