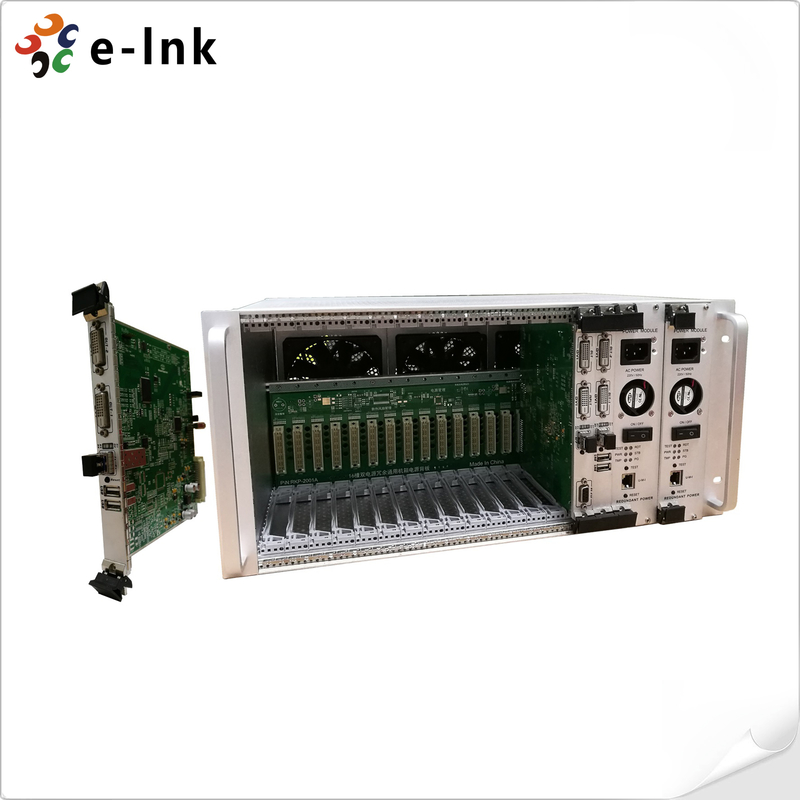

5U Rack Mount 4K DVI KVM Fiber Optic Extender

Performance

Compliance

DVI1.0 / HDMI v1.4

Maximum Pixel Clock Frequency

340 MHz

Maximum Video Bit Rate

3.40 Gbps

Supported Color Depth

24-bit

Supported Resolutions

1920x1080/60p,3840x2160/30p, 4096x2160/30p,

3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420)

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

DVI Input / DVI Output

1x DVI 24+1 Female connector

Optical

1x SFP+ port

Cable

Fiber Cable Type / Max. Length

50/125μ OM3-300 Multi-Mode Fiber:   ≤ 1,000 ft. (≤ 300 meters)

Extended function

KMSupport

USB Keyboard x 1  /  USB Mouse x1

CEC Support

CEC are NOT supported!

DDC Support

EDID Pass-through Support

only 300 meters

HDCP Pass-through Support

only 300 meters

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

89mm x 104 mm x 28.3 mm

Net Weight

LNK-4KDVI-2240-S: 200 g              LNK-4KDVI-2240-R: 200 g

Environmental

Operating Temperature

-32° to +122° F. (0° to +50° C)

Storage Temperature

-40° to +185° F. (-40° to +85° C)

Operating Humidity

5% to 80% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

Power Requirements

External AC Power Adapter

Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A    5/2.5mm jack

Power Consumption

LNK-4KDVI-2240-S: 3 watts             LNK-4KDVI-2240-R: 3 watts

Warranty

Limited Warranty

2 year warranty

Item

Description

LNK-4KDVI-2240

Card Type 4K DVI KVM Fiber Optic Extender with KVM, including 1 sender & 1 receiver, used by pairs

LNK-5U-DVI

16-slot 5U Rack for 4K DVI KVM Fiber Extender
