Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Name: Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-4KH-1D1U1E1A1R

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 500pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Interface:	150M	Hdmi Channel:	1 Channel
Hdmi Compliance:	HDMI1.4	Resolution Range:	Up To 3840*2160@30Hz
Video:	4K*2K@60Hz	Max Bandwidth:	150MHz
Input Signals:	HDMI 2.1

Interface:	150M
Hdmi Channel:	1 Channel
Hdmi Compliance:	HDMI1.4
Resolution Range:	Up To 3840*2160@30Hz
Video:	4K*2K@60Hz
Max Bandwidth:	150MHz
Input Signals:	HDMI 2.1

Description

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

HDMI Fiber Extender Advantage

► Support HDMI video resolution up to 4096*2160P@60Hz

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances

over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI,and with KVM, Audio, RS232

or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications

requiring long distance transmission of high resolution with high quality by its good stability and powerful

security.

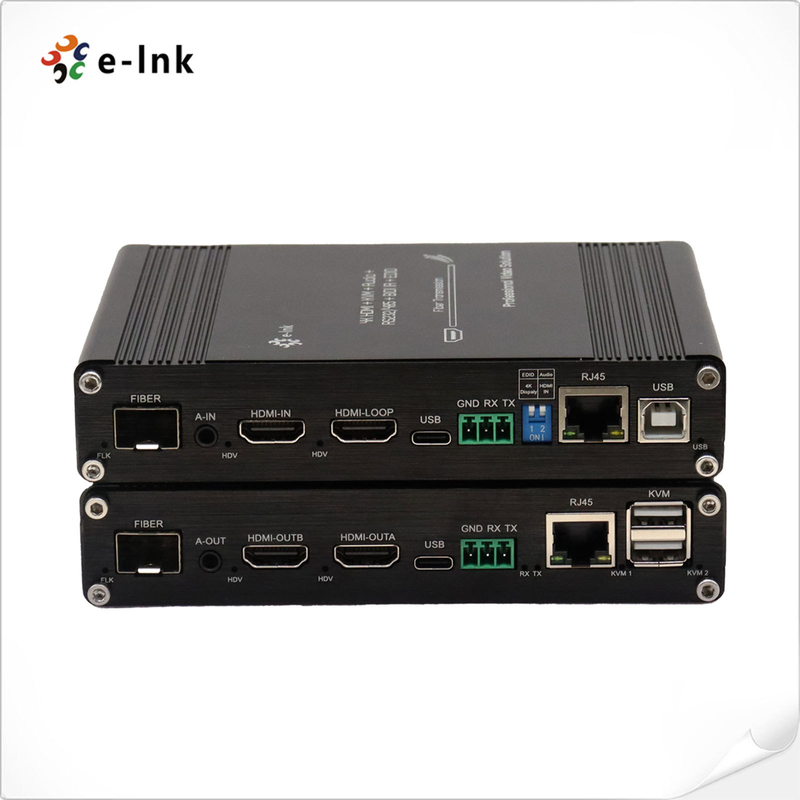

HDMI Fiber Extender Picture

Multi-functional 4K 60Hz HDMI KVM Fiber Extender 0

Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
	DVI	1.0
Audio	Interface	3.5mm Audio Interface
	Signal type	Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
	latency	Minimum latency

Application

Multi-functional 4K 60Hz HDMI KVM Fiber Extender 2

Ordering Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
