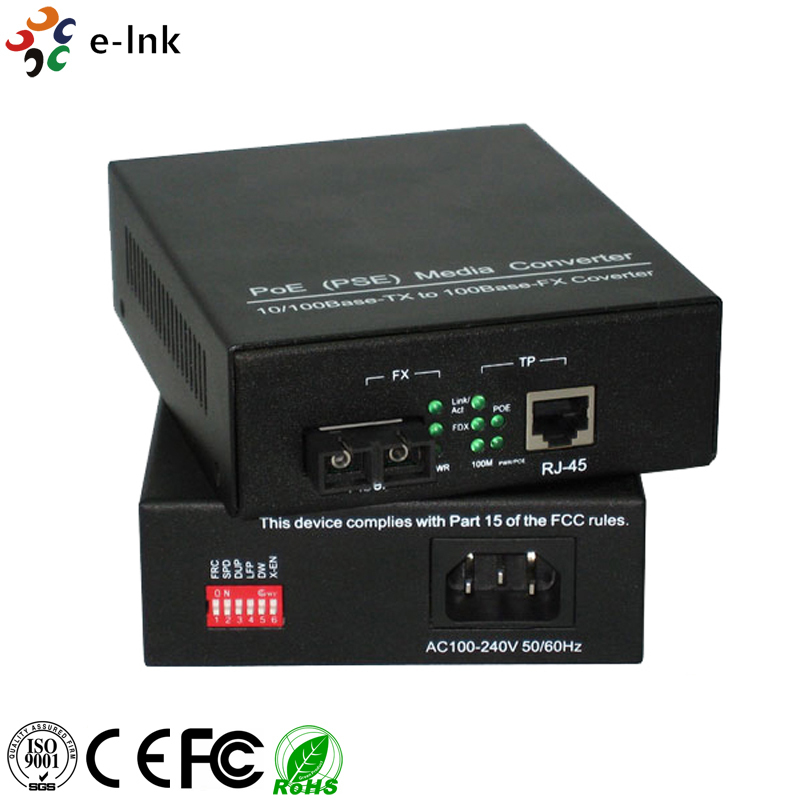

PoE(PSE) 10/100Base-TX to 100Base-FX Media Converter

Name: PoE(PSE) 10/100Base-TX to 100Base-FX Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE100
Price: 80.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-POE100

Document: EFYRB8~H.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	0℃ To 50℃	Dimensions (WxDxH)::	110(W) X 40(H) X 140(L) (mm)
Net Weight:	540g Approx. / Unit	Case Material:	Iron
Operating Humidity:	90% Max, Non-condensing

Operating Temperature::	0℃ To 50℃
Dimensions (WxDxH)::	110(W) X 40(H) X 140(L) (mm)
Net Weight:	540g Approx. / Unit
Case Material:	Iron
Operating Humidity:	90% Max, Non-condensing

Description

PoE(PSE) 10/100Base-TX to 100Base-FX Media Converter

Product Advantages

· 10/100Base-TX UTP to 100Base-FX fiber media convertion

· IEEE802.3af PoE PSE compatible

· Built-in AC/DC power supply

· Over-current protection

· choice of SC, BiDi or LC connectors for multimode and singlemode

· DIP switch to set different configurations

· LFP (Link Fault Pass-through) support

Technical Indexes

Data Rates	10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)
Data Rates	100Mbps (100Base-FX)
Input Power Requirements
Input voltage	100 VAC to 240 VAC
Input frequency	47 Hz to 63 Hz
Power over Ethernet Output
Pin Assignment and Polarity	4/5 (V+),7/8 (V-)
Output Power	please refer to ordering information
Efficiency	75% min
Short circuit protection	auto recovery
Over current protection	auto recovery
Environmental Conditions:
Operating temperature	0℃ to 50℃
Cooling	free air convection
Storage temperature	-20℃ to +85℃
Operating Humidity	90% max, non-condensing
Mechanical Specifications
Case Material	Iron
Case Color	Black
Net Weight	540g approx. / unit
Dimensions	110(W) x 40(H) x 140(L) (mm)
Note: Do not include transceiver length
Connectors
AC Inlet	IEC-J-4
LAN	Shielded RJ-45
Fiber	see ordering information

Overview

LNK-POE100is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets).

Application

Ordering Information

P/N

Description

LNK-POE100

10/100M POE (PSE) Media Converter

IEEE802.3at

IEEE802.3af

Non－standard

1:15.4W

2: 25W

3: 30W

5: 50W

S: Duplex Single-mode

M: Duplex Multi-mode

B: Simplex Single-mode

SFP: SFP Slot

3: TX 1310nm

4: TX 1490nm

5: TX 1550nm

8: TX 850nm

S: SC

F: FC

T: ST

L: LC

05: 550M

2: 2KM

20: 20KM

40: 40KM
