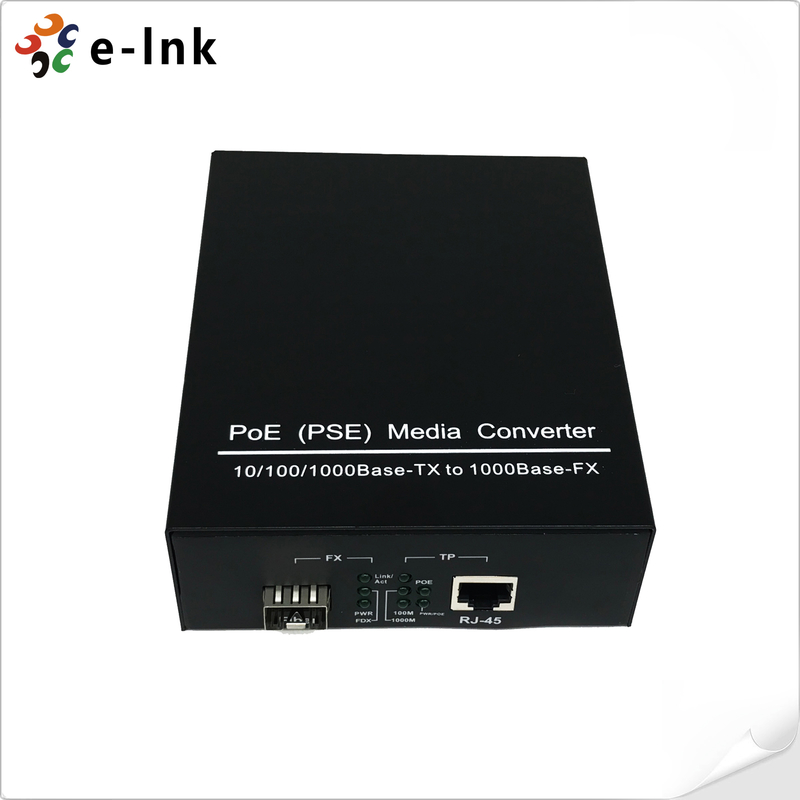

PoE(PSE) 10/100/1000Base-TX to 1000Base-X SFP Media Converter

Name: PoE(PSE) 10/100/1000Base-TX to 1000Base-X SFP Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE1000SFP
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-POE1000SFP

Document: EXNZH5~9.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	0℃ To 50℃	Dimensions (WxDxH)::	110(W) X 40(H) X 140(L) (mm)
Net Weight:	560g Approx. / Unit	LAN:	Shielded RJ-45
Efficiency:	75% Min

Operating Temperature::	0℃ To 50℃
Dimensions (WxDxH)::	110(W) X 40(H) X 140(L) (mm)
Net Weight:	560g Approx. / Unit
LAN:	Shielded RJ-45
Efficiency:	75% Min

Description

PoE(PSE) 10/100/1000Base-TX to 1000Base-X SFP Media Converter

Product Advantages

· 10/100/1000Base-TX UTP to 1000Base-X SFP fiber media conversion

· IEEE802.3at / IEEE802.3af PoE PSE compatible

· Built-in AC/DC power supply

· Over-current protection

· Supports external 1000Base-X SFP

· DIP switch to set different configurations

· LFP (Link Fault Pass-through) support

Technical Indexes

Data Rates	10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx)
Data Rates	1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)
Input Power Requirements
Input voltage	100 VAC to 240 VAC
Input frequency	47 Hz to 63 Hz
Power over Ethernet Output
Pin Assignment and Polarity
For IEEE802.3af standard	1/2 (V+),3/6 (V-)
For IEEE802.3at standard (30watts maximum)	1/2 (V+),3/6 (V-)
For IEEE802.3at standard (50watts maximum)	1/2/4/5 (V+),3/6/7/8 (V-)
Output Power	please refer to ordering information
Efficiency	75% min
Short circuit protection	auto recovery
Over current protection	auto recovery
Environmental Conditions
Operating temperature	0℃ to 50℃
Cooling	free air convection
Storage temperature	-20℃ to +85℃
Operating Humidity	90% max, non-condensing
Mechanical Specifications
Case Material	Iron
Case Color	Black
Net Weight	560g approx. / unit
Dimensions	110(W) x 40(H) x 140(L) (mm)
Do not include transceiver length
Connectors
AC Inlet	IEC-J-4
LAN	Shielded RJ-45
Fiber	see ordering information

Overview

LNK-POE1000SFP series is a 10/100/1000Base-TX to 1000Base-X SFP (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).

Application

Ordering Information

Part Number	Supported Standard	Output Voltage	Output Current	Output Power	Remark
LNK-POE1000S-XX-XXX	IEEE 802.3af	48V	0.35A max	15.4W max	default
LNK-POE1000-XX-XXX	IEEE 802.3af	48V	0.54A max	25W max	default
LNK-POE1000T-XX-XXX	IEEE 802.3at	52V	0.60A max	30W max	default
LNK-POE1000H-XX-XXX	IEEE 802.3at	52V	1.00A max	50W max	default
LNK-POE1000B-XX-XXX	Non-standard	48V	0.60A max	30W max	optional
LNK-POE1000C-XX-XXX	Non-standard	24V	1.20A max	30W max	optional

*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.

Suffix	Description	Suffix	Description
SFP-M005	LC/SFP, Multi-Mode, 550m , 850nm	SFP-S20	LC/SFP, Single-Mode, 20km , 1310nm
SFP-S10	LC/SFP, Single-Mode, 10km , 1310nm	SFP-S40	LC/SFP, Single-Mode, 40km , 1310nm
