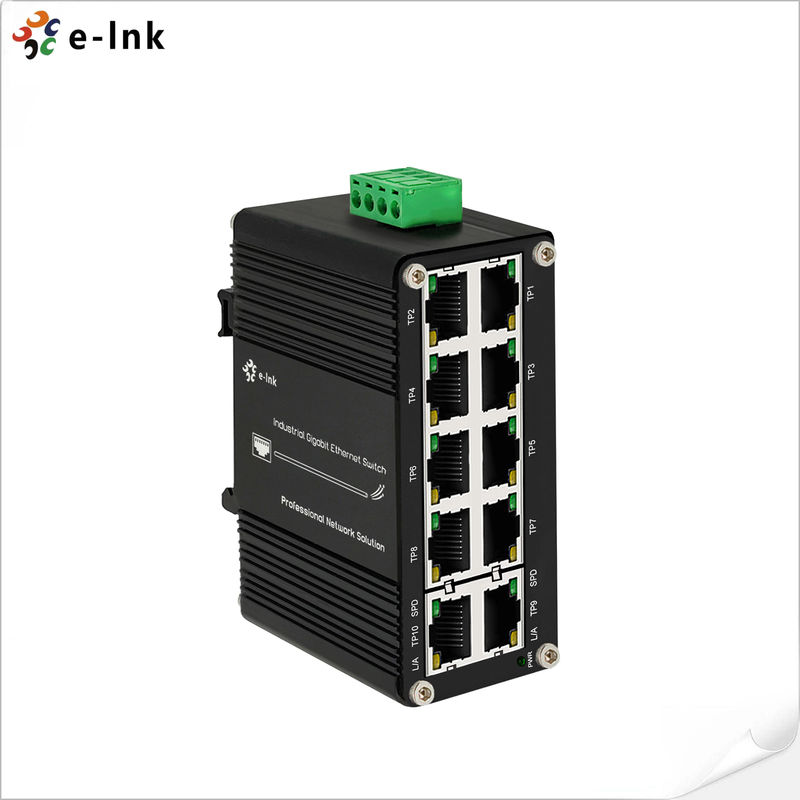

Mini Industrial ethernet switch 10-Port 10 / 100 / 1000T Compact Ethernet Switch

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001 / CE / RoHS / FCC

Model Number: NK-IMC010G Series

Document: E-link LNK-IMC010G Mini Ind....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: $29.9-389

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 1-3working days

Payment Terms: L/C,T/T,Western Union,,PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

Compact Ethernet Switch

,

Mini Ethernet Switch 10 port

,

Compact Ethernet Switch 10 port

Operating Temperature::
-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH)::
95 X 88 X 46mm
Weight::
300g
Packet Buffer::
2Mbits
Power Input Overload::
Automatic Resettable
Ports:
≤ 8,24,5,10,12
Function:
POE,VLAN Support,LACP,QoS,SNMP
Transmission Rate:
10/100/1000Mbps,10/100Mbps
Products Status:
Stock,Used
Communication Mode:
Full-Duplex & Half-Duplex,Other
Switch Capacity:
1.6G,1G,16Gbps,32Gbps,72W
Operating Temperature::
-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH)::
95 X 88 X 46mm
Weight::
300g
Packet Buffer::
2Mbits
Power Input Overload::
Automatic Resettable
Ports:
≤ 8,24,5,10,12
Function:
POE,VLAN Support,LACP,QoS,SNMP
Transmission Rate:
10/100/1000Mbps,10/100Mbps
Products Status:
Stock,Used
Communication Mode:
Full-Duplex & Half-Duplex,Other
Switch Capacity:
1.6G,1G,16Gbps,32Gbps,72W
Description
Mini Industrial ethernet switch 10-Port 10 / 100 / 1000T Compact Ethernet Switch

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

 Advantages


► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

 Overview


LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.





 Technical Indexes


Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

2Mbits

Packet Length:

9216bytes

MAC Address Table:

4K entries

Switch Fabric:

20Gbps/non-blocking

Switch Throughput (packet per second)

14.88Mpps@64bytes

Connector:

10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC

Redundant power with polarity reverses protection function

Power Consumption:

<10W

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 88 x 46mm

Weight:

300g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

PWR

Power

L/A

Link/Activity

SPD

Data Rate

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)




Application


Mini Industrial ethernet switch 10-Port 10 / 100 / 1000T Compact Ethernet Switch



 Ordering Information



Model

Description

LNK-IMC010G

Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
